Pioneer xrp 740 service manual

This is the 92 pages manual for pioneer xrp 740 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 92

Extracted text from pioneer xrp 740 service manual (Ocr-read)

Page 1

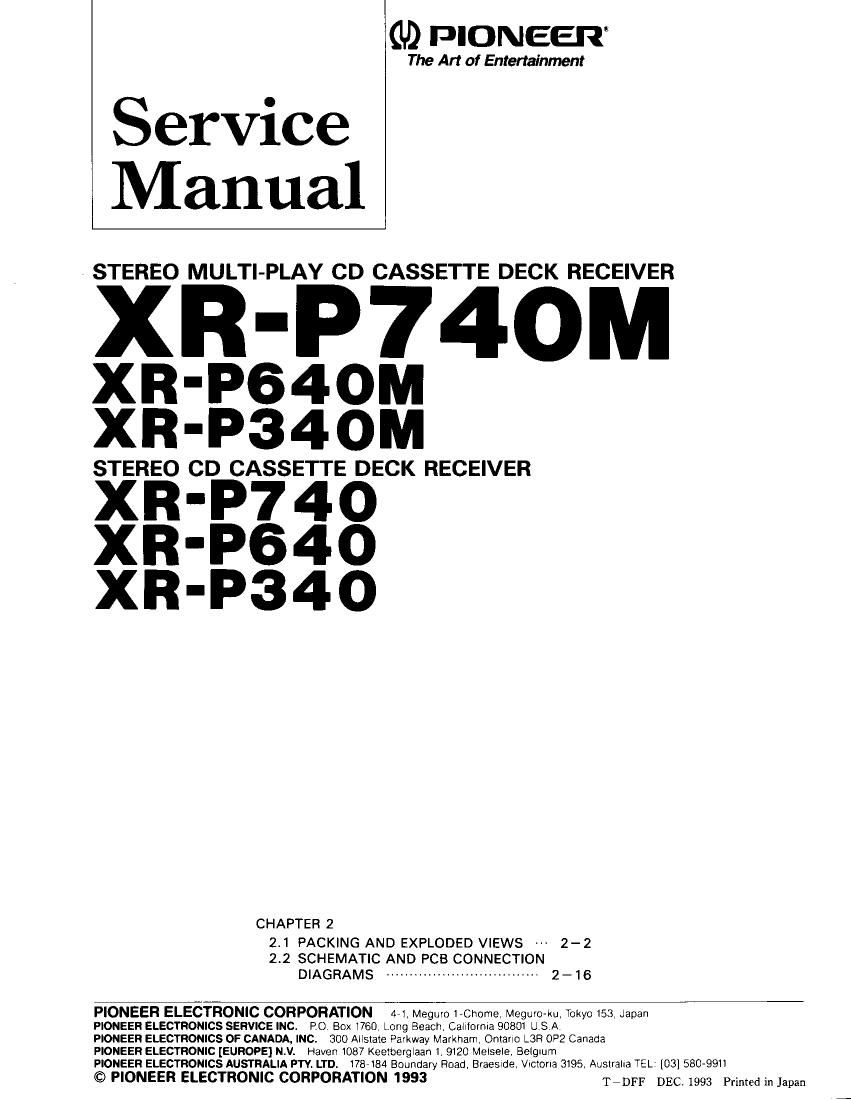

(U) PIONEER

The Art of Entertainment

Service
Manual

STEREO MULTI-PLAY CD CASSETTE DECK RECEIVER

'0"!
000]
uh-h-h
000

CHAPTER 2
2.1 PACKING AND EXPLODED VIEWS 2-2

2.2 SCHEMATIC AND PCB CONNECTION
DIAGRAMS ................................. 2_16

PIONEER ELECTRONIC CORPORATION 44, Meguro 1vChome, Megurc-ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. PO Box 1760. Long Beach. Cahlornla 90801 U S A

PIONEER ELECTRONICS OF CANADA, INC. 300 AHSIate Parkway Markham, Ontano LSR 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetbergaan 1. 9120 Melsele, Belglum

PIONEER ELECTRONICS AUSTRALIA PTV. LTD. 1787184 Boundary Road, Braeswde, Vrctorla 3195, Australia TEL' [03] 580-9911
