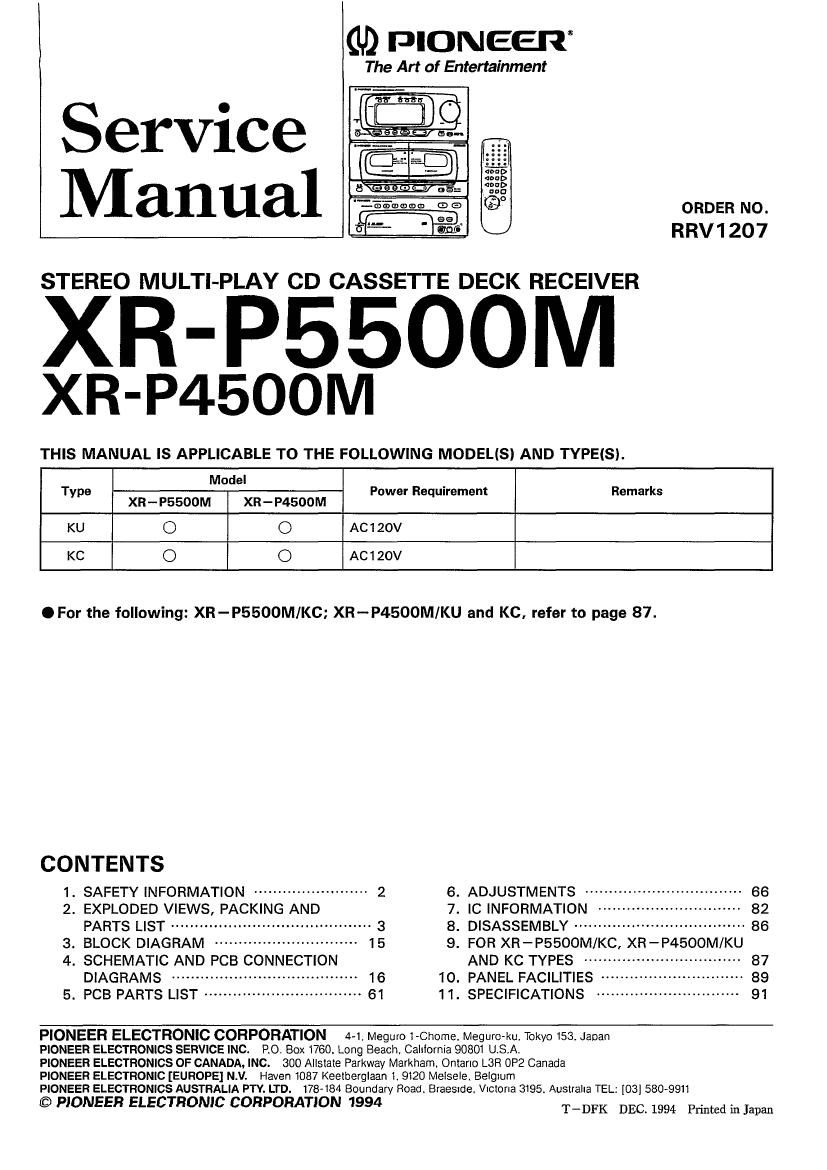

Page 1

GD PIONEER

The Art of Entertainment

Service K
Manual =====T-_..

as ORDER N0.
5" ' W RRV1 207
STEREO MULTI-PLAY CD CASSETTE DECK RECEIVER
XR - P4500 M
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEIS).
Model
Type Power Requirement Remarks
XR-P55OOM XR-P45OOM
KU O O AC120V
KC 0 O AC120V
.For the following: XR-P5500M/KC; XR-P4500M/KU and KC, refer to page 87.
CONTENTS
1. SAFETY INFORMATION ........................ 2 6. ADJUSTMENTS ................................. 66
2. EXPLODED VIEWS, PACKING AND 7. IC INFORMATION - 82
PARTS LIST .......................................... 3 8. DISASSEMBLY ................................. 86
3. BLOCK DIAGRAM ----------------------------- 15 9. FOR XR-PSSOOM/KC, XR-P45OOM/KU
4. SCHEMATIC AND PCB CONNECTION AND KC TYPES 87
DIAGRAMS ....................................... 16 10_ PANEL FACILITIES 89
5 PCB PARTS LIST ................................. 61 11_ SPECIFICATIONS .............................. 91

PIONEER ELECTRONIC CORPORATION 4-1, Meguro I-Chome. Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach. CaIonmia 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 AIIsIate Parkway Markham. Ontarlo L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keelberglaan I. 9120 Melsele. Belgxum

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road. Braeszde. Victona 3195. AUSUaIla TEL: [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1994 T_DFK DEC. 1994 Printed in Japan

Page 2

XR-P5500M , XR-P4500M 1

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health & Safety Code. Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder. avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols 15?- (fast operating fuse) end/or E (slow operating fuse) on PCB indicate that replacement parts

must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible {EB- (fusble de type rapids) et/ou a (fusible de type lent) sur CCl indiquent que les

pieces de remplacement doivent avoir la meme designation.

"(FOR USA MODEL ONLY)

1.SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and serv ce
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or

metal parts of the appliance (input/output terrninals,
screwheads, metal overlays, control shaft, etc). Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured 'nust not exceed 0.5mA.

Reading should

LEakage not be above
current O.5rnA
tester

Devce
under
test

Test all
exposed metal
surfaces

0 Also test with
plug reversed
lUsing AC adapter
plug as required

Ea'th
ground

AC Leakage Test

equivalent between the earth ground and all exposed

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE AFlE iNDiCATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR»
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the app'i-
ance have special safety related characteristics. These
are often not evident from visual inspection no'r the
protection aforded by them necessarily can be ob
tained by using replacement components rated for vol-
tage, wattage, etc. Replacement pa'ts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
