pioneer xrp 260 f service manual

Extracted text from pioneer xrp 260 f service manual (Ocr-read)

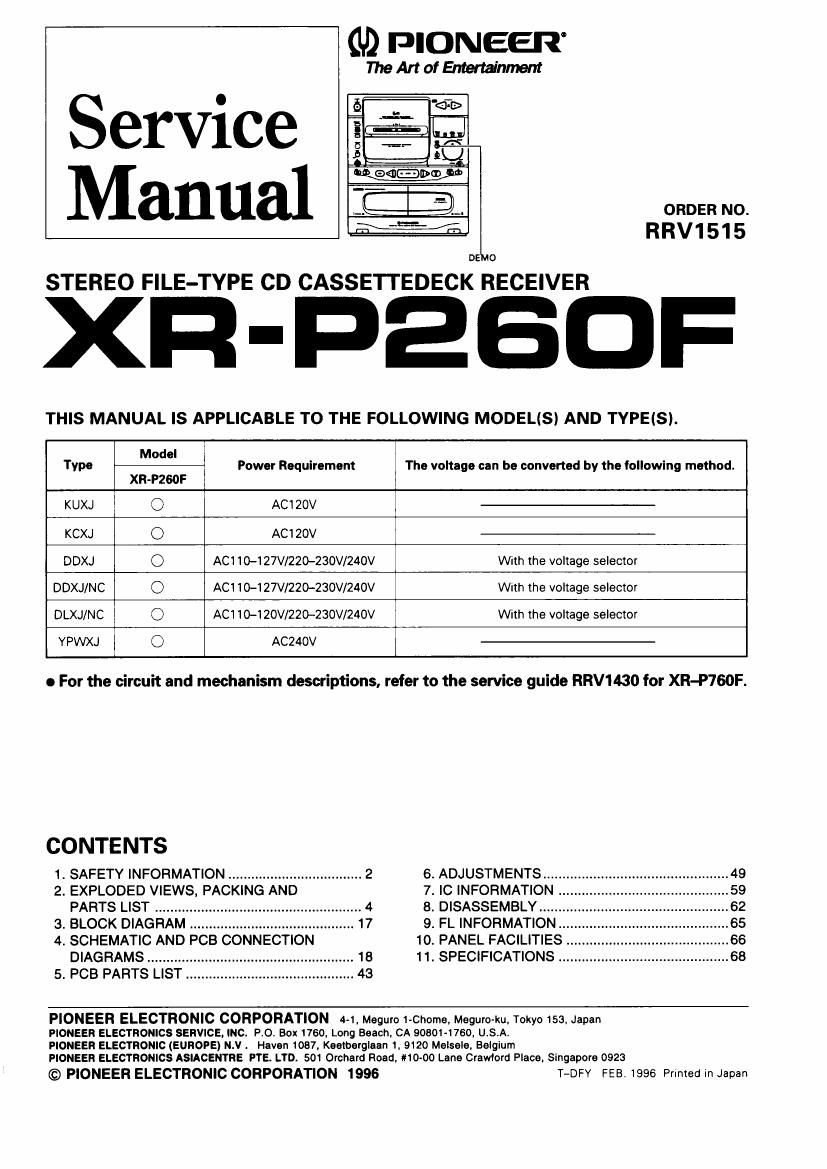

Page 1

GD PIONEER

TheArtofEnterIar'nment

'<fi>
f-h-fi Inn]
L6;

Service _
Manual :31...

fl 5. n RRV1515

DEO

STEREO FILE-TYPE CD CASSETTEDECK RECEIVER

XR-PEEDF

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEIS).

bot ourljlgd

I9-

Tvpe Model Power Requirement The voltage can be convened by the following method.
XR-PZGOF
KUXJ O AC120V
KCXJ O AC120V
DDXJ O AC1 10-127V/220-230V/240V With the voltage selector
DDXJ/NC O AC1 10-127Vl220-230V/240V With the voltage selector
DLXJ/NC O AC1 10-120V/220-230V/240V With the voltage selector
YPWXJ O Ac24ov

e For the circuit and mechanism descriptions, refer to the service guide RRV1430 for XR-P'ISOF.


CONTENTS

1. SAFETY INFORMATION ................................... 2 6. ADJUSTMENTS ..........

2. EXPLODED VIEWS, PACKING AND 7. IC INFORMATION
PARTS LIST ................... 4 8. DISASSEMBLY....

3. BLOCK DIAGRAM 17 9. FL INFORMATION ..

4. SCHEMATIC AND PC C 10. PANEL FACILITIES
DIAGRAMS ............... 18 11. SPECIFICATIONS ......

5. PCB PARTS LIST 43

PIONEER ELECTRONIC CORPORATION 4-1, Meguro l-Chome. Meguro-ku. Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE. INC. PO. Box 1760, Long Beach. CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keaiberglean 1. 9I20 Melsele. Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road. 10-00 Lane Crawlord Place. Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1996 T-DFY FEB. 1996 Prlnted in Japan

Page 2

XR-P260F

1 . SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-It-yourselfer. Guallfled technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health a Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not Inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols {EB (fast operating fuse) and/or {3% (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible {EB- (fusible de type rapids) etlou Ea» (fusible de type lent) sur CCI indiquent que
les pieces de remplacement doivent avoir la meme designation.

- (FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS

ANY MEASUREMENTS NOT WITHIN THE LIMITS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

current measured must not exceed ,0.5 mA.
Reading should

D not be above

Leakage 0,5 mA
current
tester

Device
under
test

Test all exposed
metal surf-cu

Allo last with plug
reversed

(Uling AC adapter
plug as required)

© it

_ Earth ground

AC Leakage Test

Measure leakage current to a known earth ground
(water pipe. conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft. etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any

OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage, wattage . etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a L on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the pans list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information. always consult the current
PIONEER Service Manual. Asubscription to. or ad-
ditional copies of. PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
