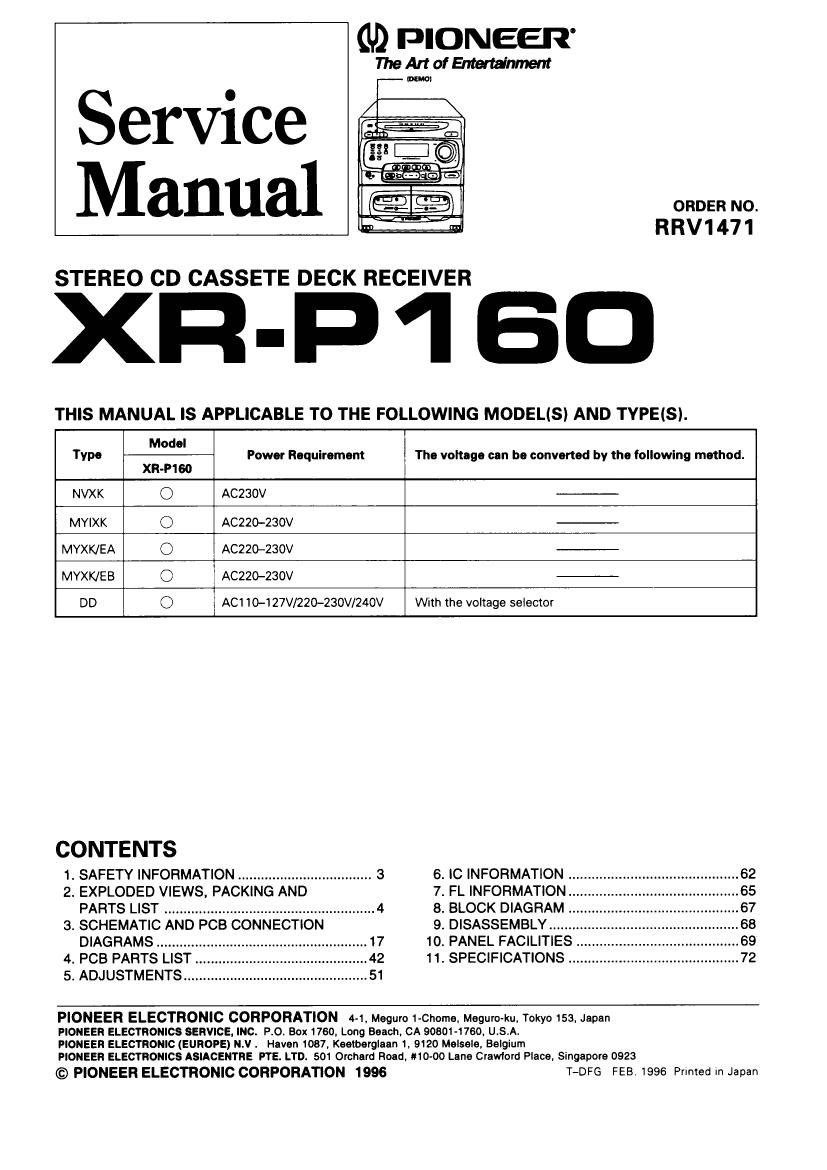

Page 1

Service
Manual

ORDER NO.
RRV1 471

STEREO CD CASSETE DECK RECEIVER

XR-PI 60

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELISI AND TYPEISI.

Model
Type Power Requirement The voltage can be convened by the following method.
XR-P160
NVXK O AC230V
MYIXK O AC220-230V
MYXK/EA O AC220-230V
MYXK/EB O AC220-230V
DD O AC110-127V/220-230V/240V With the vollage selector
CONTE NTS
1. SAFETY INFORMATION ................................... 3 6. [6 INFORMATION ............................................ 62
2. EXPLODED VIEWS, PACKING AND 7. FL INFORMATION.. .
PARTS LIST ....................................................... 4 8. BLOCK DIAGRAM ..
3. SCHEMATIC AND PCB CONNECTION 9. DISASSEMBLY .......
DIAGRAMS ................................ 17 10. PANEL FACILITIES .......

4. PCB PARTS LIS
5. ADJUSTMENTS .......

.42
..... 51


11. SPECIFICATIONS ............................................ 72

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1Chome. Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE. INC. PO. Box 1760, Long Beach. CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1. 9120 Melsele. Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, 310-00 Lane Crawlord Place. Singapove 0923

© PIONEER ELECTRONIC CORPORATION 1996

T-DFG FEB. 1996 Printed m Japan

Page 2

1. SAFETY INFORMATION

- (FOR EUROPEAN MODEL ONLY)

XR-P160

-VAROl-
AVATTAESSA JA suonwxrrus
OHITETTAESSA OLET ALTTIINA
NAKYMATI'OMALLE LASERSATEILYLLE.

ALA KATSO SATEESEEN.
LASER
Kuva 1
- ADVERSEL: Laserselellyn

USYNLIG LASERSTRALING veo ABNING varoitusmerkki
NAR SIKKERHEDSAFBRVDERE an uoe AF
FUNKTION unoeA UDSAETTELSE FOR

STRALING.

~ VARNING ! -
OSYNLIG LASERSTRALNING NAR DENNA
DEL AR OPPNAD OCH SPAHREN
AR UHKOPPLAD. BETRAKTA EJ STRALEN.

- WARNING l -
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.

LASER
Picture 1
Warning sign lor

laser radiation

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLV
INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS ¥-
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780- 785 nm

LABEL CHECK

NVXK. MYIXK, MYXKIEA
end MYXKIEB types

MYIXK, MYXKIEA
and MYXK/EB typos

NVXK typo

Additional Laser Caution

1. Laser interlock Mechanism
The position ol the switch ($651) lor detecting loading
state is detected by the system microprocessor. and the
design prevents laser diode oscillation when the switch
(5651) is not on CLMP terminal side (CLMP signal is OFF
or high level.) Thus. the interlock will no longer lunction it
the switch (8651) is deliberately set to CLMP terminal
side. (low level)
The interlock also does not tunction in the test mode'.
Laser diode oscillation will continue, if pin 1 ol M51593FP
(ICIO1) on the PRE-AMP BOARD ASSY mounted on the
pickup assembly ls connected to GND, or pin 19 is
connected to low level (ON), or else the terminals ol 0101
are shorted to each other (fault condition).

2. When the cover is opened. close viewing at the obiective
lens with the naked eye will cause exposure to a Class 1
laser beam.

* Refer to page 58.

MYIXK. MYXKIEA

end MYXKIEB typos
