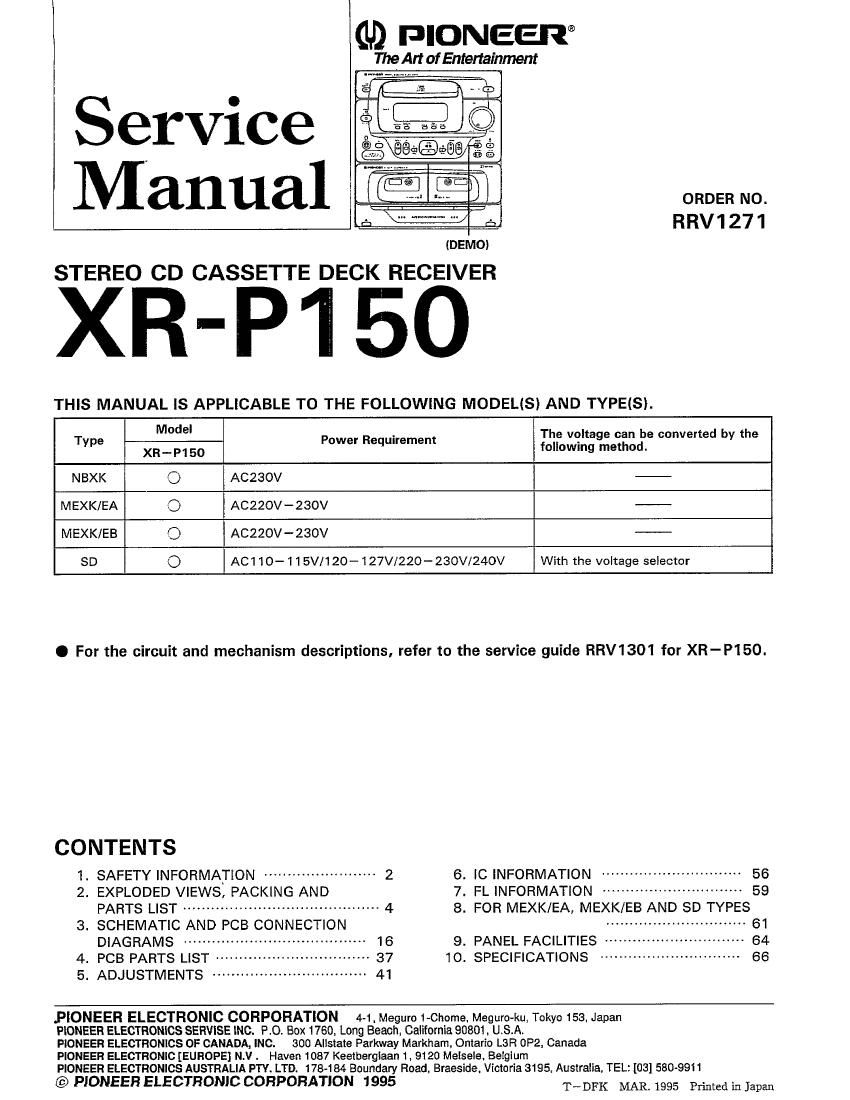

Service
Manual é RRV 1 27 1

STEREO CD CASSETTE DECK RECEIVER

XR-P150

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(SI AND TYPEISI.

1 GD PIONEEITa
i

Model
TYPe XR-P150 Power Requirement 2:150 Illvtirlltggrfiefiagcte converted by the
NBXK O AC23OV -
MEXKIEA O ACZZOV - 230V -
MEXK/EB O ACZZOV-ZSOV ---
SD 0 AC1 10- 1 1 5Vl120- 127V1220- 230V/24-0V With the voltage selector

O For the circuit and mechanism descriptions, refer to the service guide RRV1301 for XR-P150.

CONTENTS
1. SAFETY INFORMATION ------------------------ 2 6. IC INFORMATION ------------------------------ 56
2. EXPLODED VIEWS, PACKING AND 7. FL INFORMATION ------------------------------ 59
PARTS LIST ------------------------------------------ 4 8. FOR MEXK/EA, MEXK/EB AND SO TYPES
3. SCHEMATIC AND PCB CONNECTION .............................. 51
DIAGRAMS ....................................... 9- PANEL FACILITIES .............................. 64
4. PCB PARTS LIST 10. SPECIFICATIONS ----------------------------- 66

5' ADJUSTMENTS ................................. 41

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVISE INC. P.0. Box 1760, Long Beach, California 90301 . U.S.A.

PIONEER ELECTRONICS OF CANADA1 INC. 300 Allstale Parkway Markham, OnIario L3H 0P2, Canada

PIONEER ELECTRONIC {EUROPE} N.V . Haven 1087 Keeiberglaan 1, 9120 Melsele. Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road. Eraeside. Violoria 3195 Australia, TEL: [03] 580-9911

@ PIONEER ELECTRONIC CORPORATION 'I 995 T~DFK MAR 1995 Printed .m Japan
