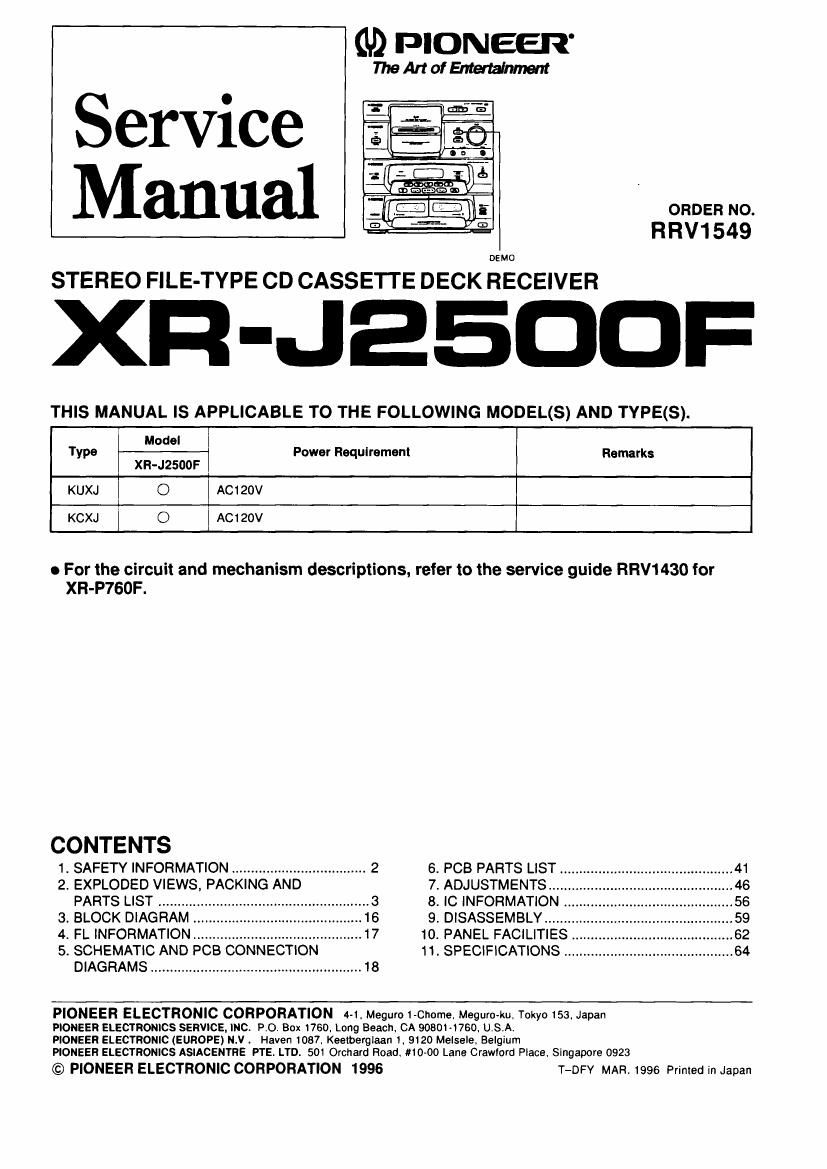

Page 1
Service
Manual
ORDER NO.
RRV1 549
DEMO
STEREO FILE-TYPE CD CASSETTE DECK RECEIVER
XFI -J2500F
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type Power Requirement Remarks
XR-JZSOOF
KUXJ O AC120V
KCXJ O AC120V
e For the circuit and mechanism descripiions, refer to the service guide RRV1430 for
XR-P760F.
CONTENTS
1. SAFETY INFORMATION ................................... 2 6. PCB PARTS LIST .............
2. EXPLODED VIEWS, PACKING AND 7. ADJUSTMENTS .....
PARTS LIST ............................................... 3 8. IC INFORMATION .
3. BLOCK DIAGRAM 9. DISASSEMBLY ......
4. FL INFORMATION ............................................ 17 10. PANEL FACILITIES ..
5. SCHEMATIC AND PCB CONNECTION 11. SPECIFICATIONS ............
DIAGRAMS ....................................................... 18
PIONEER ELECTRONIC CORPORATION 4-1. Meguro l-Chome, Meguro-ku. Tokyo 153 Japan
PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach. CA 90801-1750. USA
PIONEER ELECYRONIC (EUROPE) N.V . Haven 1087. Keetbergiaan 1. 9120 Meiseie, Beigium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road. #10-00 Lane Crawford Place. Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 T-DFV MAR. 1996 Primed in Japan
Page 2
XR-J2500F
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-lt-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health a Safety Code. Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder. avoid unprotected skin contact with
the solder. Also. when soldering do not inhale any smoke or fumes produced.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols {EB (fast operating fuse) and/or a (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMAROUE
(POUR MODELE CANADIEN SEULEMENT)
Les symboles de fusible E} (fusible de type rapids) et/ou a (fusible its type lent) sur CCl indiquent que
les pieces de remplacement doivent avoir la meme designation.
r (FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection oi the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals.
screwheads. metal overlays. control shaft, etc.). Plug
the Ac line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Reading should
-° not be above
Leakage 05 mA
current
tester
Device
under
test
Test all exposed
metal surfaces
Also tut with plug
reversed
(Using AC scepter
plug as required)
©(f
Earth ground
AC Leakage Test
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident lrorn visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage, wattage . etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a i on the schematics and
on the pans list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one. shown in
the parts list in this Service Manual, may create shock,
fire. or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information. always consult the current
PIONEER Service Manual. Asubscrlption to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge lrom PIONEER.
