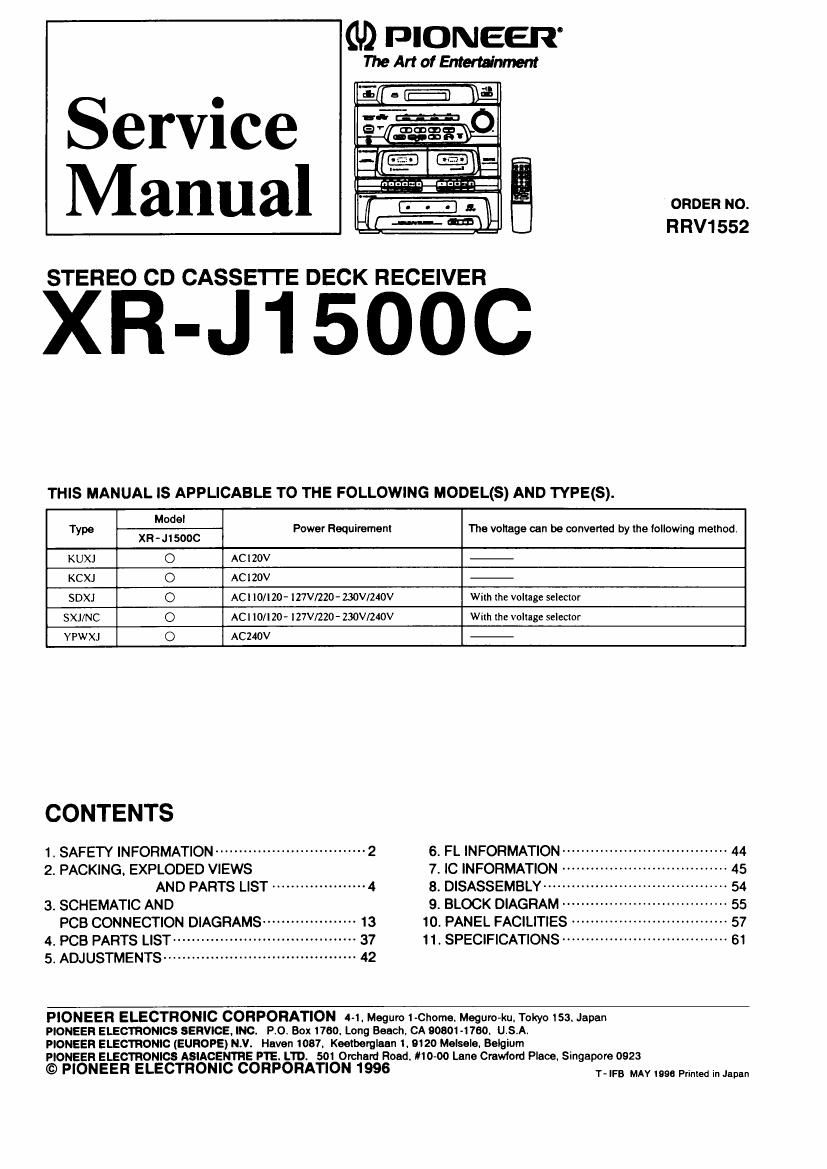

Page 1

Service
Manual

M PIONEER'

The Art of Enterunm

ORDER NO.
RRV1552

STEREO CD CASSETTE DECK RECEIVER

XR-J1500C

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type XRtajliioC Power Requirement The voltage can be convened by the lollowing method.
KUXJ O ACIZOV -
KCXJ O ACIZOV
SDXJ O ACI I0/l20- I27V/220- ZSOV/ZAOV With the voltage selector
SXJ/NC 0 AC l 10/] 20- I27V/220- 230V/240V With the voltage selector
YPWXJ O AC240V
CONTENTS
1. SAFETY INFORMATION ................................ 2 6. Fl. INFORMATION ................................... 44
2. PACKING. EXPLODED VIEWS 7. IC INFORMATION 45
AND PARTS LIST -------------------- 4 s. DISASSEMBLY-~~- 54
3. SCHEMATIC AND 9. BLOCK DIAGRAM 55
PCB CONNECTION DIAGRAMS ------------------- 13 10. PANEL FACILITIES 57
4 PCB PARTS LIST .................... 11. SPECIFICATIONS ................................... 51

5 ADJUSTMENTS ......................................... 42

PIONEER ELECTRONIC CORPORATION 4A1. Meguro1-Chome. Meguro-ku, Tokyo 153. Japan
PIONEER ELECTRONICS SERVICE. INC. P101 Box 1760, Long Beach, CA 90801-1180. USA,

PIONEER ELECTRONIC (EUROPE) N. V. Haven 1087. Keelberglaan 1. 9120 Melsale Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD 501 Orchard Road. #10- 00 Lane Crawford Place. Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996

T- lFB MAY 1996 Printed in Japan

Page 2

XFI - J1500C

1 . SAFETY INFORMATION

This service manual is Intended for qualified service technicians; it is not meant for the casual
do-it-yourselfar. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely. you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in aoIder used In this product is listed by the Cailfomia Health and Welfare agency aa a known reproductive toxicant which
may cause birth defects or other reproductive harrn (California Health It Safety Code. Section 25249.5).

When servicing or handling circuit boarda and other components which contain lead in aolder. avoid unprotected skin contact with
the solder. Alao. when soldering do not Inhale any amolte or fumea produced.

NOTICE
(FOFI CANADIAN MODEL ONLY)

Fuse symbols EB (last operating fuse) and/or {EB- (slow operating fuse) on PCB indicate that replacement pans

must be of identical designation.

REMAROUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible IE} (fusible de type rapids) et/ou JEE- (Iusible de type lent) sur CCl indiquent que les

pieces do remplacement doivent avoir la meme designation.

"(FOR USA MODEL ONLY)
1.SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or

metal parts of the appliance [input/output terminals,
screwheads, metal overlays, control shaft, etc). Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

[E


a Reading should
Leakage not be above
current 0-5MA

tester

Device
under
test

Test all
exposed metal
surfaces

O Also test wttn
plug reversed
lUsrng AC adapter
plug as required]

Earth
ground

AC Leakage Test

equivalent between the earth ground and all exposed.

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2.PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vol-
tage, wattage. etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
