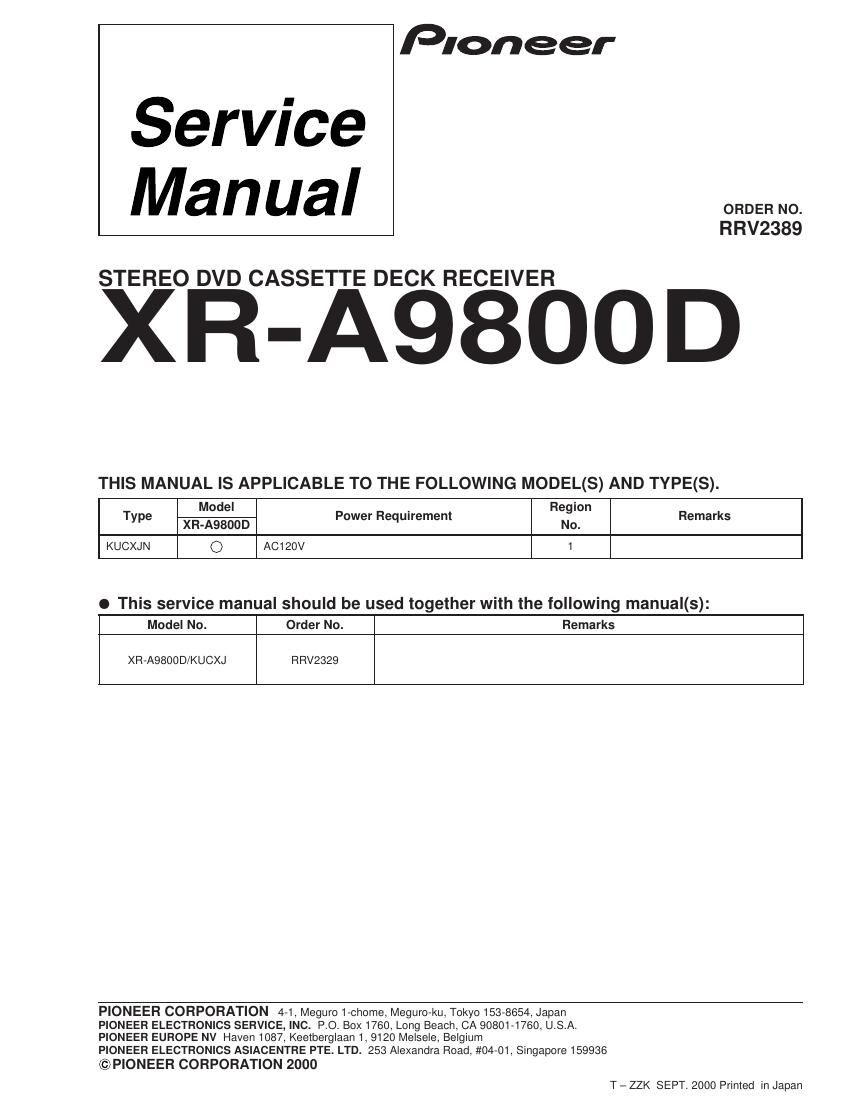

Pioneer xra 9800 d service manual

This is the 2 pages manual for pioneer xra 9800 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer xra 9800 d service manual

Extracted text from pioneer xra 9800 d service manual (Ocr-read)


Page 1

XR-A9800D 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE XR-A9800D/KUCXJN and KUCXJ are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description XR-A9800D XR-A9800D Remarks /KUCXJ /KUCXJN PACKING SECTION P3-11 Packing Case XHD3144 XHD3165 EXTERIOR SECTION P5-26 SEC Holder XMR3032 XMR3035 P5-38 Tray Cap XAK3157 XAK3210 NSP Name Label Not used XAL3066*1 FRONT PANEL SECTION P7-19 JOG Knob XAA3015 XAA3019 P7-21 FUNC Button L XAD3061 XAD3089 P7-22 FUNC Button R XAD3051 XAD3090 P7-23 FUNC Frame L XAD3052 XAD3091 P7-24 FUNC Frame R XAD3053 XAD3092 P7-25 DV ENT Button XAD3056 XAD3085 P7-26 Display Panel XAK3135 XAK3206 P7-42 Sub Panel XAK3203 XAK3209 P7-50 DV Button L XAD3057 XAD3086 P7-51 DV Button R XAD3059 XAD3088 *1 Stick Name Label on the Rear Panel.
