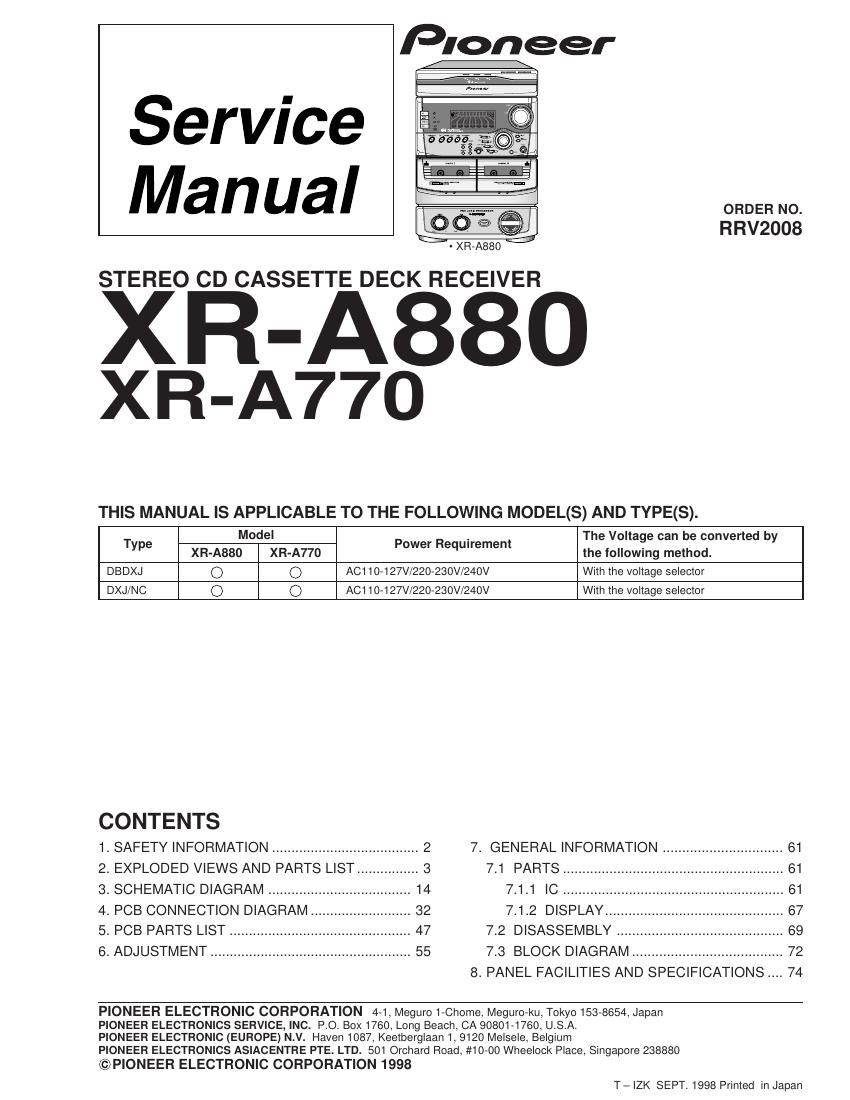

Pioneer xra 880 service manual
This is the 78 pages manual for pioneer xra 880 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xra 880 service manual (Ocr-read)
Page 1
2 XR-A880, XR-A770 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 Ð Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODéLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pices de remplacement doivent avoir la mme dŽsignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current testerReading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required)Earth ground AC Leakage Test
Page 2
3 XR-A880, XR-A770 2.1 PACKING 1 FM Antenna ADH7004 2 Operating Instructions See Contrast table (2) 3 AM Loop Antenna XTB3001 4 Remote Control Unit See Contrast table (2) 5 Battery Cover AZA7204 NSP 6 Dry Cell Battery (R6P, AA) VEM-013 7 Polyethylene Bag Z21-038 (0.03 ´ 230 ´ 340) 8 Front Pad XHA3005 9 Rear Pad XHA3006 (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: · Parts marked by "NSP" and can not be supplied. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. 10 Packing Case See Contrast table (2) 11 Packing Sheet AHG7049 12 Power-cord Plug See Contrast table (2) Conversion Adapter 13 Power Cord See Contrast table (2) NSP 14 Polyethylene Bag AHG7033 15 Operating Instructions See Contrast table (2) Mark No. Description Part No. (2) CONTRAST TABLE XR-A880/DBDXJ, DXJ/NC, XR-A770/DBDXJ and DXJ/NC are constructed the same except for the following : Mark No. Symbol and DescriptionPart No. Remarks XR-A880 XR-A880 XR-A770 XR-A770 /DBDXJ /DXJ/NC /DBDXJ /DXJ/NC 2 Operating Instructions Not used XRE3010 Not used XRE3010 (English/Spanish/Portuguese) 2 Operating Instructions (English/Spanish/Chinese) XRE3011 Not used XRE3011 Not used 4 Remote Control Unit (CU-XR050) XZN3008 XZN3008 Not used Not used 4 Remote Control Unit (CU-XR049) Not used Not used XZN3007 XZN3007 10 Packing Case XHD3051 XHD3034 XHD3047 XHD3033 12 Power-cord Plug Conversion Adapter Not used VKX1007 Not used VKX100713 Power Cord ADG1158 ADG1154 ADG1158 ADG1154 15 Operating Instructions (English/French/German/ Not used Not used XRE3016 XRE3016 Italian/Dutch/Swedish/Spanish/Portuguese/Chinese) 15 Operating Instructions (English/French/Spanish/ XRE3018 XRE3018 Not used Not used Portuguese/Chinese) 12 V O LKARAOKE SFCD I S CD I S CD I S CC L E A RSTATIONREMOTE CONTROL UNIT CU-XR025 M O N OB A N D P G MR E P E A TR A N D O MAUX P.BASS DISPLAYS L E E PPOWER 6 1 3 DXJ/NC Type Only 79(1/2) 8(1/2) 8(2/2)9(2/2) 10 2 13 14 1115 4 5
