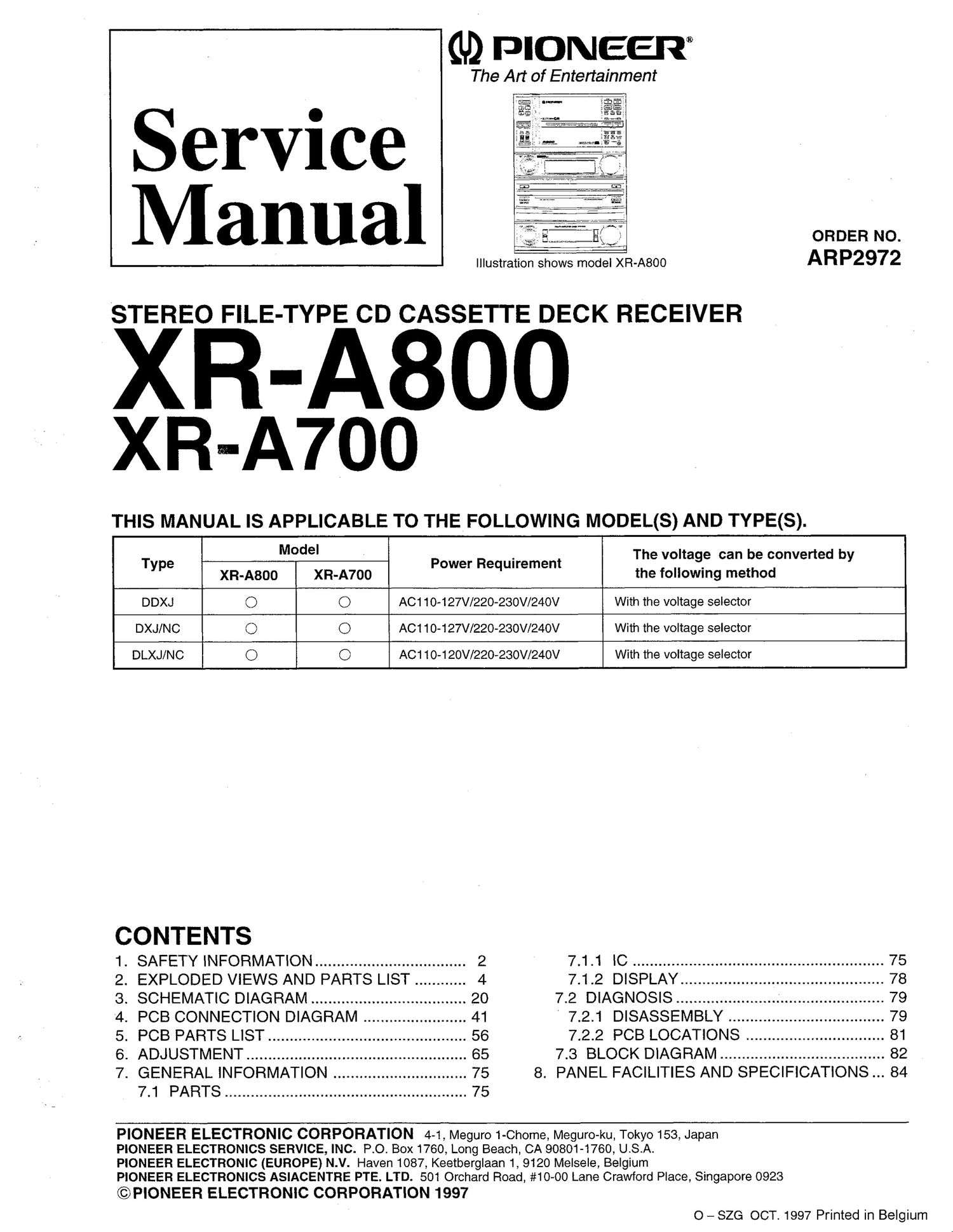

Page 1

GI) DIONEEIT

The Art of Entertainment

ORDER NO.

ARP2972

STEREo FILE-TYPE CD CASSETTE DECK RECEIVER

XRAIO-O
A7

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

Type I Power Requirement

XR-A800 XR-A700

The voltage can be converted by
the following method

DDXJ AC1 10-127V/220-230V/240V

With the voltage selector

DXJ/ NC

AC1 10-127V/220-230V/240V

With the voltage selector 1

DLXJ/NC

CONTENTS
1. SAFETY INFORMATION ................................... 2
2. EXPLODED VIEWS AND PARTS LIST ............ 4
3. SCHEMATIC DIAGRAM .................................... 20
'4. PCB CONNECTION DIAGRAM ........................ 41
5. PCB PARTS LIST .............................................. 56
6. ADJUSTMENT ................................................... 65
7. GENERAL INFORMATION ............................... 75
7.1 PARTS ........................................................ 75

AC1 10-1 20V/220-230V/24OV

With the voltage selector

7.1.1 lC .......................................................... 75
7.1.2 DISPLAY...................... ......................... 78
7.2 DIAGNOSIS........................ ........................ 79
7.2.1 DISASSEMBLY .................................... 79
7.2.2 PCB LOCATIONS ................................ 81
7.3 BLOCK DIAGRAM ...................................... 82

8. PANEL FACILITIES AND SPECIFICATIONS 84

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach, CA 90801 -1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

©PIONEER ELECTRONIC CORPORATION 1997

O - SZG OCT. 1997 Printed in Belgium

Page 2

XR-A800, XR-A700

1-. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may

void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols -I

and/or

(fast operating fuse)
parts must be of ident'cal designation.

REMAROUE
(POUR MODELE CANADlEN SEULEMENT)
Les symboles de fusible I

- (slow Operating fuse) on PCB indicate that replacement

(fusible de type rapide) et/ou
les pieces de remplacement doivent avoir la méme designation.

(FOR USA MODEL ONLY)

--- (fusible de type lent) sur CCI indiquent que

1. SAFETY PRECAUTIONS

The following check should be performed for the

continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

Reading should
not be above
Leakage 05 m A
current
Device tester
under
test
Test all
exposed metai
sunaces
~
fl
Also test with
plug reversed (L I
(Using AC adapter __ Earth
plug as required) 7 ground

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.

Electrical components having such features are

identified by marking with a L on the schematics and

on the parts list in this Service Manual.

The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire.
or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
