Pioneer xra 670 gr service manual

This is the 17 pages manual for pioneer xra 670 gr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 17
pioneer xra 670 gr service manual

Extracted text from pioneer xra 670 gr service manual (Ocr-read)

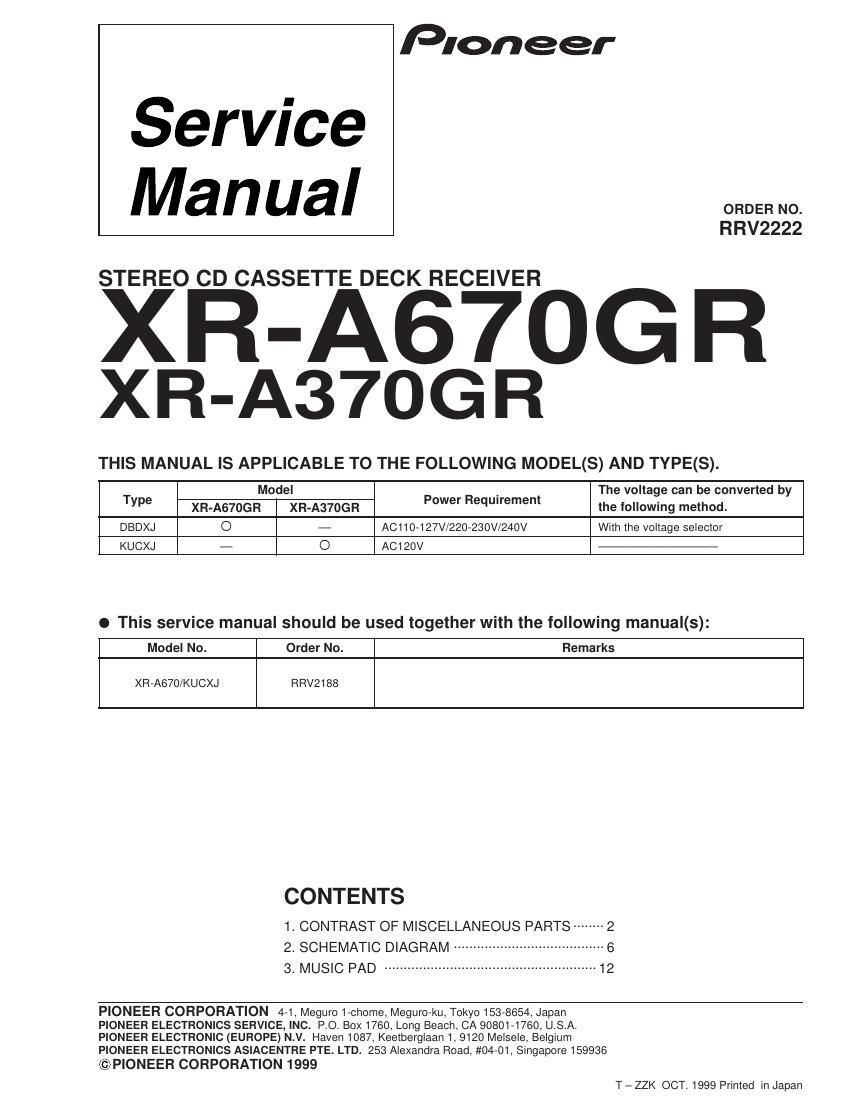

Page 1

Service
Manual

STEREO CD CASSETTE DECK RECEIVER

XR-A670G R

XR-A37OG R

Pioneer

ORDER NO.
RRV2222

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement The voltage can be converted by
XR-A67OGR XR-A37OGR the tollowmg method.

DBDXJ O - AC110-127V/220-230V/240V With the voltage selector

KUCXJ - O A0120v

o This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
XR-A670/KUCXJ RRV2188
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2- SCHEMATIC DIAGRAM ....................................... 6
3- MUSIC PAD ....................................................... 12

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 1999

T -ZZK OCT. 1999 Printed in Japan

Page 2

XR-A67OGR, XR-A37OGR

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: 0 Parts marked by NSF are generally unavailable because they are not in our Master Spare Parts List.
I The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
I Screws adjacent to V mark on product are used for disassembly.
.Reference Nos. indicate the pages and Nos. in the service manual for the base model.
I When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex] When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 a 56 X 10 a 561
47k * 47X10 -- 473
0.5 4 R50
1 * 1R0
Ex.2 When there are 3 effective di ts (such as in high prec ion metalfilm re.
5.62k * 562x10 a 5621 --------- -

- RSIP-EEK

tors ).
----- RN1/4PC IF

l CONTRAST TABLE
XR»A37OGR/KUCXJ and XR»A370/KUCXJ are constructed the same except for the following :
Part No.
Ref. No. Mark Symbol and Description XR-A37D XR-A37OGR Remarks
lKUCXJ /KUCXJ

PCB ASSEMBLIES
MAIN ASSY XWM3097 XWM3104

P6- 1 I- AF ASSY XWZ3196 XW23203
COMPLEX ASSY XWM3108 XWM3117

P9- 1 L DISPLAY ASSY XWZ3209 XWZ3218
PACKING SECTION

P4-10 Packing Case XH D3082 XHD3109
Operating Instructions Not used XRE3027
(English/Arabian/Russian/Chinese/Spanish/French)
Cord with Mini Plug Not used XDE3025 Accessories
CAP Sheet Not used XHG3006 For Packing
Packing Sheet Not used XHG3007 For Packing
MUSIC PAD Not used XXD3021 Accessories *1

NSP Dry Cell Battery (RGP, AA) (For MUSIC PAD) Not used VEM-013 For MUSIC PAD

Polyethylene Bag (0.03 X 230 x 340) Not used 221-038 For Packing
EXTERIOR SECTION

P6-35 NSP Fuse Card AAX7097 AAX7098

NSP Name Label Not used XAL302B *2

Mic Knob Not used XAB3007 No.1
FRONT PANEL SECTION

P9-17 Display Panel XAK3108 XAK3111

P9-3O Sub Panel XAK3080 XAK3104
Earth Plate A Not used XNG3018 No.2

Notes : OThe numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS .
o For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES" and 2. SCHEMATIC DIAGRAM.
*1 : Refer to 3. MUSIC PAD.
*2 : Stick Name Label on Rear Panel.

l EXPLODED VIEWS
C FRONT PANEL SECTION C EXTERIOR SECTION
I, __ s
2 ('11 BPI§3\III)P080FMC

FRONT PANEL

MECHANISM UNIT
