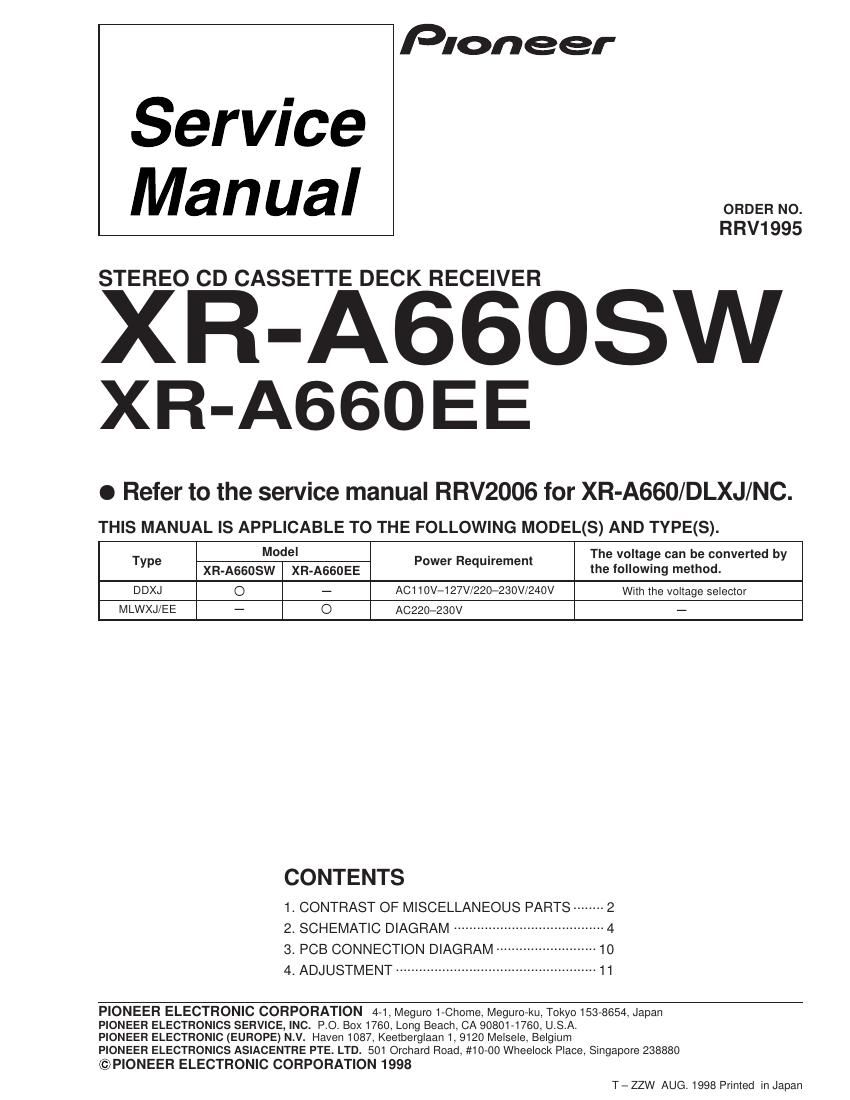

pioneer xra 660 sw service manual

Extracted text from pioneer xra 660 sw service manual (Ocr-read)


Page 1

XR-A660SW, XR-A660EE 2ASSEMBLIES NSP COMPLEX Assy XWM3049 XWM3053 XWM3086 P7- 3ÄPRIMARY Assy XWZ3048 XWZ3048 XWZ3056 P7- 29ÄSUB TRANS Assy XWZ3049 XWZ3049 XWZ3155 P9- 1ÄDISPLAY Assy XWZ3085 XWZ3095 XWZ3096 P7- 4ÄFM/AM TUNER MODULE AXQ7065 AXQ7062 AXQ7069 PACKING SECTION P3- 1 FM Antenna ADH7004 ADH7004 ADH7011 P3- 2 Operating Instructions XRE3009 Not used Not used (English/ Chinese/ Russian) P3- 2 Operating Instructions Not used XRE3013 XRE3013 (English/ Arabian/ Russian) P3- 10 Packing Case XHD3032 XHD3042 XHD3043 P3- 13 Power Cord ADG1154 ADG1158 ADG1154 SW Antenna Not used ADH7006 Not used EXTERIOR(1/2) SECTION P5- 7 Display Panel XAK3020 XAK3020 XAK3058 NSP Getter XAX3066 XAX3066 XAX3096 EXTERIOR(2/2) SECTION P7- 5 T1 Power Tranceformer XTS3015 XTS3015 XTS3016 P7- 6 FU2, FU3 Fuse (T2A) AEK1057 AEK1057 Not used P7- 7 FU1 Fuse (T2A) Not used Not used AEK1057 P7- 7 FU1 Fuse (T4A) AEK1060 AEK1060 Not used P7- 15 Rear Panel XNC3001 XNC3001 XNC3021 P7- 25 Caution Label PRW1018 Not used Not used P7- 26 NSP Name Label Not used XAL3005 Not used P7- 30 NSP Fuse Card AAX2357 AAX2357 Not used P7- 31 Fuse Card Not used Not used AAX7026 P7- 31 NSP Fuse Card AAX7099 AAX7099 Not used 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE XR-A660SW/DDXJ, XR-A660EE/MLWXJ/EE and XR-A660/DLXJ/NC are constructed the same except for the following : Note: Ö For ASSEMBLIES, refer to ÒCONTRAST OF PCB ASSEMBLIESÓ, Ò2. SCHEMATIC DIAGRAMÓ and Ò3. PCB CONNECTION DIAGRAMÓ. Part No. XR-A660 /DLXJ/NC Ref. No. Symbol and Description Remarks MarkXR-A660SW /DDXJXR-A660EE /MLWXJ/EE NOTES: ·Parts marked by "NSP" and can not be supplied. ·The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. ·Reference Nos. indicate the pages and Nos. in the service manual for the base model. ·When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 W®56 ´ 10 1 ®561 ........................................................ RD1/4PU 5 6 1 J 47k W®47 ´ 10 3 ®473 ........................................................ RD1/4PU 4 7 3 J 0.5 W®R50 ..................................................................................... RN2H R 5 0 K 1 W®1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W®562 ´ 10 1®5621 ...................................................... RN1/4PC 5 6 2 1 F

Page 2

XR-A660SW, XR-A660EE 3 C5501 Not used Not used CCSQCH220J50 C5502 Not used Not used CCSQCH270J50 C5815 Not used Not used CKSQYB103K50 D5594 Not used 1SS133 Not used D5595 Not used Not used 1SS133 R9996 RS1/10S0R0J RS1/10S0R0J RS1/10S561J X5501 (6MHz) RSS1050 RSS1050 ASS7015 CONTRAST OF PCB ASSEMBLIES XWZ3056 and XWZ3048 are constructed the same except for the following : PRIMARY ASSY Part No. XWZ3048 Mark Symbol and DescriptionRemarks XWZ3056 H3ÐH6 Fuse Clip AKR7001 Not used S1 AKX7006 Not used XWZ3095, XWZ3096 and XWZ3085 are constructed the same except for the following : DISPLAY ASSY Part No. XWZ3085 Mark Symbol and DescriptionRemarks XWZ3095 XWZ3096 XWZ3155 and XWZ3049 are constructed the same except for the following : SUB TRANS ASSY Part No. XWZ3049 Mark Symbol and DescriptionRemarks XWZ3155 S2 AKX7004 Not used
