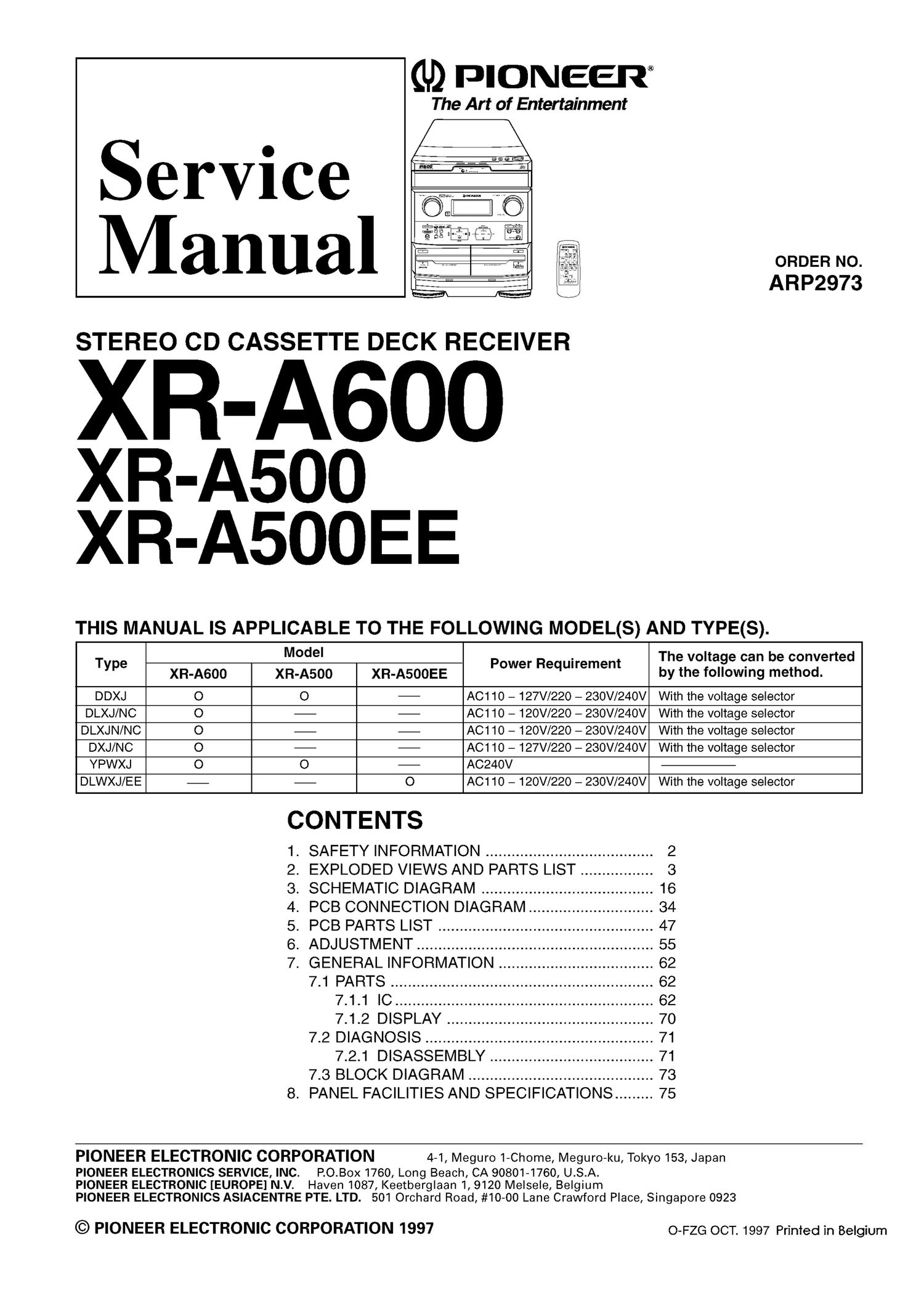

Page 1

(U) PIONEEIT

The Art of Entertainment

ORDER NO.
ARP2973

STEREOCHDCASSETHEDECKTHHflflVER

XRA-GOO
XR-A5u
XR-A5uEE

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
Type Power Requirement The voltage can be converted

XR-A600 XR-A500 XR-ASOOEE

by the following method.

DDXJ O AC110 - 127V/22O - 230V/240V With the voltage selector
DLXJ/NC - AC110 - 120V/220 - 230V/240V With the voltage selector
DLXJN/NC - AC110 - 120V/220 - 230V/240V With the voltage selector
DXJ/NC - AC110 - 127V/220 - 230V/240V With the voltage selector
YPWXJ O AC240V
DLWXJ/EE - AC110 - 120V/22O - 230V/240V With the voltage selector
CONTENTS

1. SAFETY INFORMATION ....................................... 2

2. EXPLODED VIEWS AND PARTS LIST ................. 3

3. SCHEMATIC DIAGRAM ........................................ 16

4. PCB CONNECTION DIAGRAM ............................. 34

5. PCB PARTS LIST .................................................. 47

6. ADJUSTMENT ....................................................... 55

7. GENERAL INFORMATION .................................... 62

7.1 PARTS ............................................................. 62

7.1.1 IC ............................................................ 62

7.1.2 DISPLAY ................................................ 70

7.2 DIAGNOSIS ..................................................... 71

7.2.1 DISASSEMBLY ...................................... 71

7.3 BLOCK DIAGRAM ........................................... 73

8. PANEL FACILITIES AND SPECIFICATIONS ......... 75

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O.Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997 O-FZG OCT. 1997 Printed in Belgium

Page 2

XR-A600,XR-A500,XR-A500EE

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

LABEL CHECK (For DLXJ/NC, DLXJN/NC AND YPWXJ types)

1. Laser Interlock Mechanism
The position of the switch (88501) for detecting loading
state is detected by the system microprocessor, and
the design prevents laser diode oscillation when the
( switch (88501) is pressed physically.
Thus, the interlock will no longerfunction if the switch (88501)
is released physically and deliberatery.
The interlock also does not function in the test mode *.

INVISIBEEALLJJJERN CLASST Laser diode oscillation will continue, if pin 62 of
RADIATION WHEN OPEN, LASER PRODUCT LA924OML (ICB101) on the CD ASSY mounted on the
AVOID EXPOSURE $M Loading Mechanism assembly is connected to GND,

T0 BEAIVI PRW1018

s
T Additional Laser Caution
\

N or else the terminals of 08101 are shorted to each other
ame Label . .
AAL71 96(XR-A600/DLXJ/NCDLXJ N/N C) (iault COHdItlon).

AAL71 97(X R-AGOO/Y PWXJ)

AAL7185(XR'A500/YPWXJ) 2.When the cover is opened, close viewing of the

objective lens with the naked eye will cause exposure
to a Class 1 laser beam.

>l< : Refer to page 61.
