Pioneer xra 4900 service manual

This is the 4 pages manual for pioneer xra 4900 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4

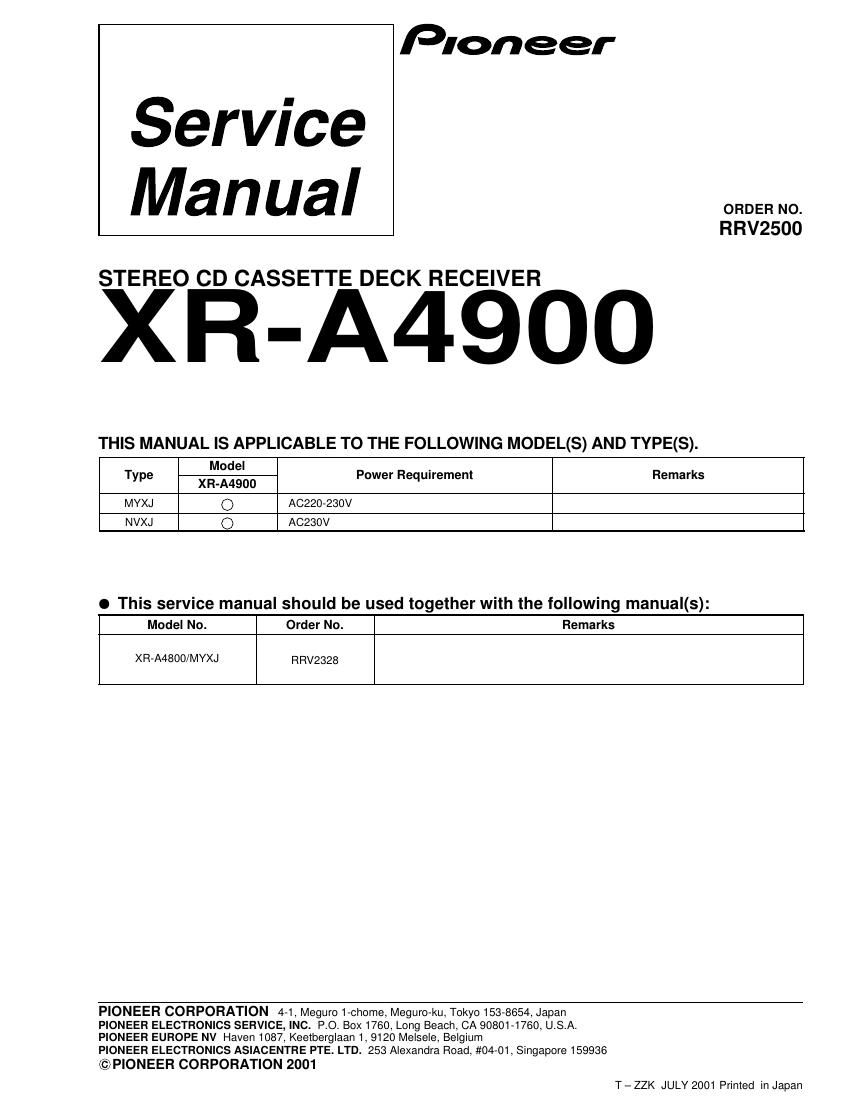

pioneer xra 4900 service manual

Extracted text from pioneer xra 4900 service manual (Ocr-read)


Page 1

XR-A4900 2 2. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 XR-A4900/MYXJ, NVXJ and XR-A4800/MYXJ are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description XR-A4800 XR-A4900 XR-A4900 Remarks /MYXJ /MYXJ /NVXJ PCB ASSEMBLIES COMPLEX ASSY XWM3158 AWM7609 AWM7609 P7- 1 DISPLAY ASSY XWZ3298 AWU7793 AWU7793 PACKING SECTION P3- 1 Power Cord ADG1154 ADG1154 ADG1156 P3- 8 Front Pad XHA3018 XHA3028 XHA3028 P3- 9 Rear Pad XHA3019 XHA3029 XHA3029 P3-10 Packing Case XHD3142 XHD3261 XHD3261 P3-13 Operating Instructions (English/French) XRE3030 XRE3047 XRE3047 P3-14 Operating Instructions (Italian/Dutch/German) XRC3020 XRC3043 Not used P3-15 Operating Instructions XRC3021 XRC3044 Not used (Portuguese/Swedish/Spanish) P3-16 NSP Polyethylene Bag Not used Not used AHG7033 Caution Sheet XRH3004 Not used Not used EXTERIOR SECTION P5-15 Rear Panel XNC3053 XNC3118 XNC3118 P5-26 Tray Cap XAK3156 XAK3236 XAK3236 Tray Panel CD Not used XAK3269 XAK3269 For Tray Cap P5-30 Caution Label HE PRW1233 PRW1233 PRW1018 P5-31 Caution Label VRW1094 VRW1094 Not used P5-36 NSP Getter XAX3163 XAX3260 XAX3260 P5-44 Barrier XEC3013 XEC3027 XEC3027 NSP Name Label Not used Not used XAL3093*1 Rear Sheet AED7037 Not used Not used FRONT PANEL SECTION P7-18 Volume Knob XAA3013 XAA3022 XAA3022 P7-21 FUNC Button L XAD3076 XAD3116 XAD3116 No.8 FUNC Cap L Not used XAK3247 XAK3247 No.7 P7-22 FUNC Button R XAD3077 XAD3117 XAD3117 No.10 FUNC Cap R Not used XAK3248 XAK3248 No.9 P7-23 FUNC Frame L XAD3052 Not used Not used P7-24 FUNC Frame R XAD3053 Not used Not used P7-25 CD ENT Button XAD3055 XAD3109 XAD3109 No.12 P7-26 Display Panel XAK3215 XAK3260 XAK3260 P7-27 EQ Panel XAK3149 Not used Not used

Page 2

XR-A4900 3 Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES. The numbers in the remarks column correspond to the numbers on the FRONT PANEL ASSY . *1 Stick Name Label on the Rear Panel. Part No. Ref. No. Mark Symbol and Description XR-A4800 XR-A4900 XR-A4900 Remarks /MYXJ /MYXJ /NVXJ SC Panel Not used XAK3245 XAK3245 No.26 SC Panel Assy Not used XXG3088 XXG3088 No.13 P7-28 JOG Lens XAK3152 XAK3243 XAK3243 No.23 P7-29 V Lens XAK3153 XAK3237 XAK3237 P7-33 FL Cover XAK3163 XAK3239 XAK3239 P7-34 Cover Sheet L XAK3184 Not used Not used P7-35 Cover Sheet R XAK3185 Not used Not used LED Barrier Not used XEC3022 XEC3022 No.24 P7-36 Power Button XAD3043 XAD3102 XAD3102 No.17 P7-37 CD Button XAD3045 XAD3104 XAD3104 No.19 P7-38 SC Button XAD3046 Not used Not used SC Button L Not used XAD3105 XAD3105 No.29 SC Cap L Not used XAK3241 XAK3241 No.27 SC Button R Not used XAD3106 XAD3106 No.30 SC Cap R Not used XAK3242 XAK3242 No.28 ASES Button Not used XAD3114 XAD3114 No.20 Timer Button Not used XAD3115 XAD3115 No.21 P7-39 SC Button L XAD3047 Not used Not used Audio Button Not used XAD3107 XAD3107 No.14 P7-40 SC Button R XAD3048 Not used Not used Visual Button Not used XAD3108 XAD3108 No.15 P7-41 DOLBY Button XAD3054 XAD3113 XAD3113 No.11 P7-42 Sub Panel XAK3196 XAK3255 XAK3255 No.6 P7-43 Standby Lens XAK3151 XAK3240 XAK3240 No.18 P7-44 Deck Lens L XAK3159 XAK3249 XAK3249 No.3 P7-45 Deck Lens R XAK3160 XAK3250 XAK3250 No.5 P7-46 JOG Conductor XAK3165 XAK3244 XAK3244 No.22 P7-47 Deck Door_L XAN3021 XAN3037 XAN3037 No.2 P7-48 Deck Door_R XAN3025 XAN3042 XAN3042 No.4 P7-49 Front Panel XMB3026 XMB3056 XMB3056 No.1 O/C Button Not used XAD3103 XAD3103 No.16 P7-52 Spacer XEB3012 Not used Not used P7-53 Spacer XEB3013 Not used Not used Cushion Spacer XEB3015 Not used Not used Cushion Spacer XEB3016 Not used Not used Cushion Spacer XEB3017 Not used Not used Spacer XEC3014 Not used Not used Spacer XEC3019 Not used Not used DISPLAY ASSY F I CONTRAST OF PCB ASSEMBLIES AWU7793 and XWZ3298 are constructed the same except for the following : Mark Symbol and DescriptionPart No. Remarks XWZ3298 AWU7793 D5610, D5611, D5615, D5616, D5904 SLP3118C51H SLR-343MC(NPQ) D5612, D5614 SLP6118C51H SLR-343DC(NPQ) D5619, D5620, D5903 SLP9118C51H SLR-343VC(NPQ) D5902 SLP7118C51H SLR-343PC(KLM) S5911, S5913, S5915–S5921, S5923–S5929, S5931–S5940 XSG3001 ASG1051
