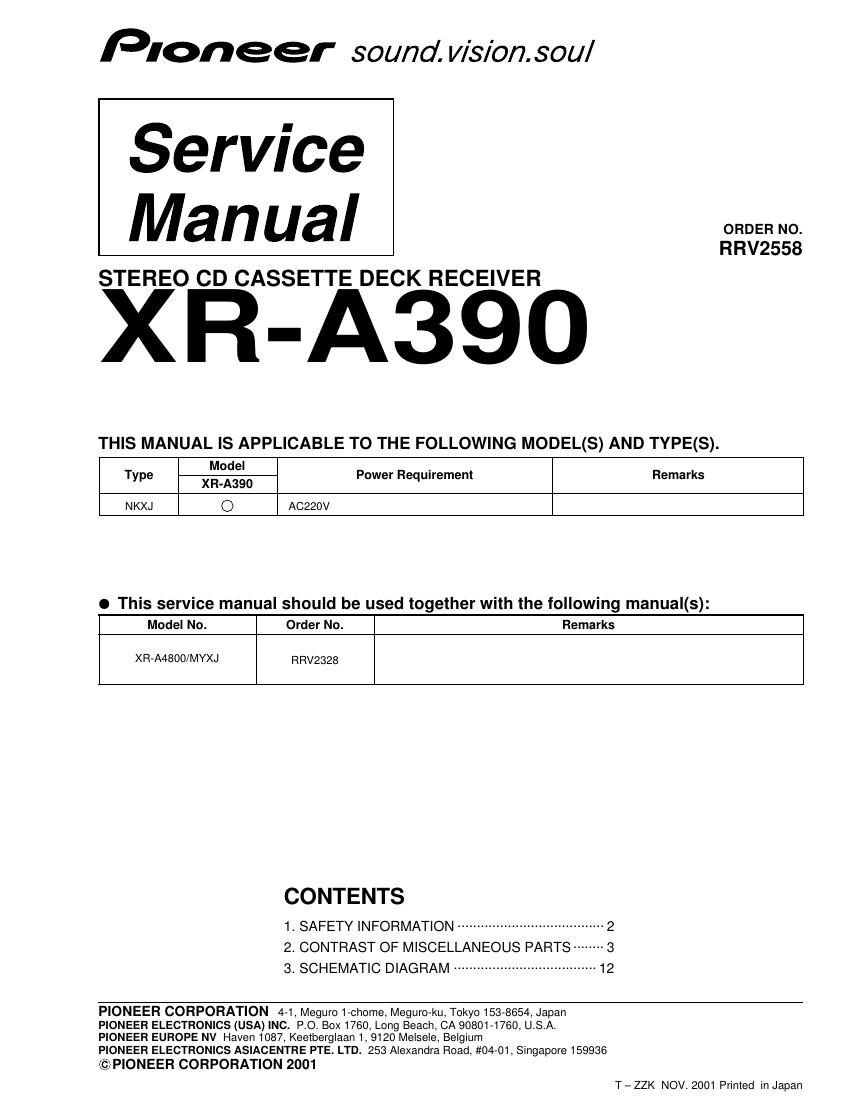

Pioneer xra 390 service manual 2

This is the 12 pages manual for pioneer xra 390 service manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 12
pioneer xra 390 service manual 2

Extracted text from pioneer xra 390 service manual 2 (Ocr-read)


Page 1

XR-A390 2 Printed on the Rear Panel 1. SAFETY INFORMATION LABEL CHECK Additional Laser Caution 1. Laser Interlock Mechanism The position of the switch (S9501) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S9501) is pressed physically. Thus, the interlock will no longer function if the switch (S9501) is released physically and deliberatery. The interlock also does not function in the test mode ∗. Laser diode oscillation will continue, if pin 1 of CXA1821M (IC8101) on the CD ASSY mounted on the $M Loading Mechanism assembly is connected to GND, or else the terminals of Q8101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. ∗ : Refer to page 61 on the service manual RRV2328. IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 780 - 785 nm

Page 2

XR-A390 3 XR-A390/NKXJ and XR-A4800/MYXJ are constructed the same except for the following : CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description XR-A4800 XR-A390 Remarks /MYXJ /NKXJ PCB ASSEMBLIES MAIN ASSY XWM3152 AWM7602 P5- 1 AF ASSY XWZ3297 AWU7786 COMPLEX ASSY XWM3158 AWM7610 P7- 1 DISPLAY ASSY XWZ3298 AWU7794 PACKING SECTION P3- 1 Power Cord ADG1154 DDG1086 P3- 8 Front Pad XHA3018 XHA3028 P3- 9 Rear Pad XHA3019 XHA3029 P3-10 Packing Case XHD3142 XHD3265 P3-11 NSP Warranty Card ARY7022 Not used P3-13 Operating Instructions (English/French) XRE3030 Not used P3-14 Operating Instructions (Italian/Dutch/German) XRC3020 Not used P3-15 Operating Instructions (Por tuguese/Swedish/Spanish) XRC3021 Not used Operating Instructions (Korea) Not used XRC3045 Caution Sheet XRH3004 Not used EXTERIOR SECTION P5-15 Rear Panel XNC3053 XNC3121 P5-26 Tray Cap XAK3156 XAK3236 Tray Panel CD Not used XAK3269 For Tray Cap P5-30 Caution Label HE PRW1233 Not used P5-31 Caution Label VRW1094 Not used P5-36 NSP Getter XAX3163 XAX3263 P5-44 Barrier XEC3013 XEC3027 Rear Sheet AED7037 Not used Caution Label Not used VRW1886*1 NSP 220V Label Not used XAL3118 FRONT PANEL SECTION P7- 3 Deck Mechanism Unit XYM3012 XYM3011*2 P7- 5 Flexible Cable 15P XDD3050 Not used P7- 5 Flexible Cable 13P Not used XDD3040 P7-18 Volume Knob XAA3013 XAA3022 P7-21 FUNC Button L XAD3076 XAD3116 No.8 FUNC Cap L Not used XAK3247 No.7 P7-22 FUNC Button R XAD3077 XAD3117 No.10 FUNC Cap R Not used XAK3248 No.9 P7-23 FUNC Frame L XAD3052 Not used P7-24 FUNC Frame R XAD3053 Not used 2. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621
