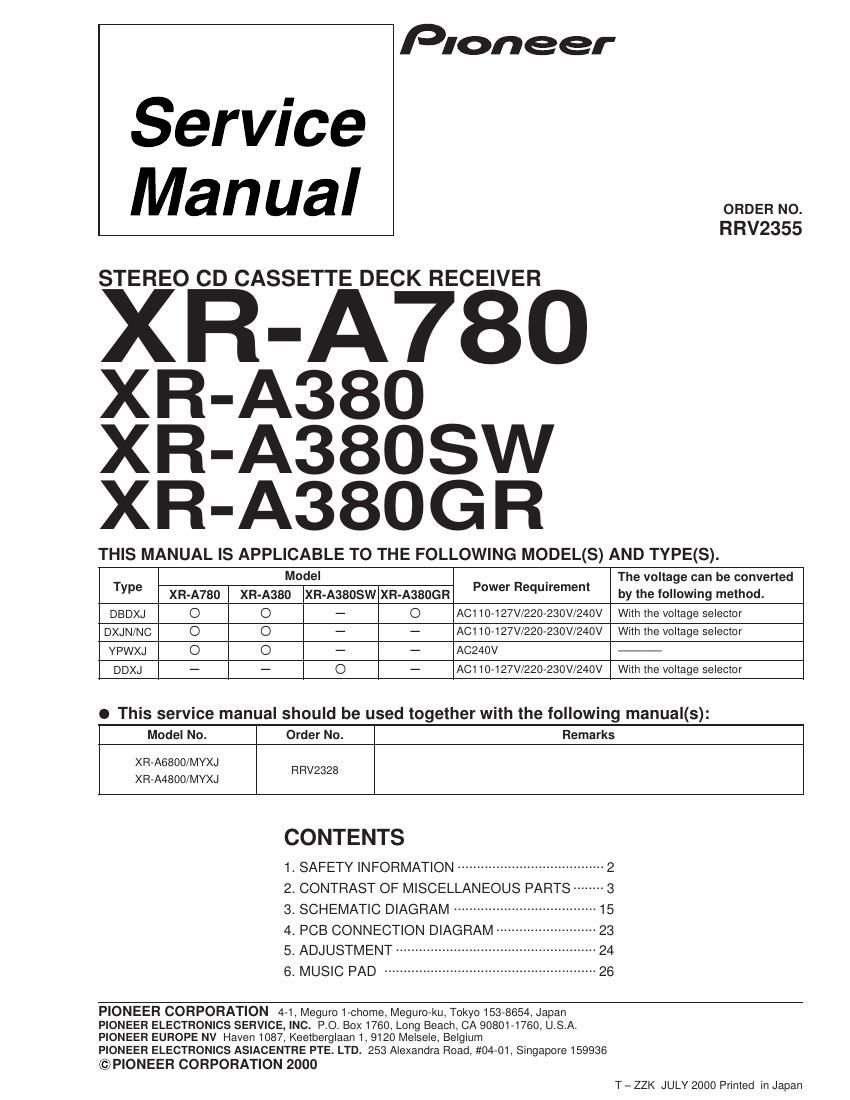

Pioneer
Service
Manual
RRV2355
STEREO CD CASSETTE DECK RECEIVER
XR-A780
XR-A380
XR-A3803W
XR-A380G R
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model _ The voltage can be converted
Type XR-A780 XR-A380 XR-A3BOSW XR-A3BOGR P°We' Requ'remem by the following method.
DBDXJ O O - O AC110-127V/220-230V/240V With the voltage selector
DXJN/NC O O - - AC110-127V/220-230V/240V With the voltage selector
YPWXJ O O - - AC240V
DDXJ - - O - AC110-127V/220-230V/240V With the voltage selector
o This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
XR-A6800/MYXJ
XR-A4800/MYXJ
RRV2328
CONTENTS
1 SAFETY INFORMATION ...................................... 2
2. CONTRAST OF MISCELLANEOUS PARTS -------- 3
3. SCHEMATIC DIAGRAM ----------------- 15
4. PCB CONNECTION DIAGRAM ------ 23
5- ADJUSTMENT .................................................... 24
6. MUSIC PAD ....................................................... 26
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2000
T - ZZK JULY 2000 Printed in Japan
Page 2
XR-A780, XR-A380, XR-A3805W,
XR-A380GR
1. SAFETY INFORMATION
LABEL CHECK (for YPWXJ type)
Printed on the Rear Panel
CLASS I
LASER PRODUCT
CAUTION
INVISIBLE LASER
RADIATION WHEN OPEN,
AVOID EXPOSURE
TO BEAM PRW1018
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LASER DIODE CHARACTERISTICS 7
MAXIMUM OUTPUT POWER: 5 mW
WAVELENGTH: 780 . 785 nm
Additional Laser Caution
. Laser Interlock Mechanism
The position of the switch ($9501) for detecting loading
state is detected by the system microprocessor, and
the deSIgn prevents laser diode oscillation when the
switch (89501) is pressed physically.
Thus, the interlock will no longer function if the switch (89501)
is released physically and deliberatery.
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 1 of
CXA1821 M (ICS101) on the CD ASSY mounted on the
SM Loading Mechanism assembly is connected to GND,
or else the terminals of 08101 are shorted to each other
(fault condition).
. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class
1 laser beam.
* : Refer to page 61 on the service manual RRV2328.
