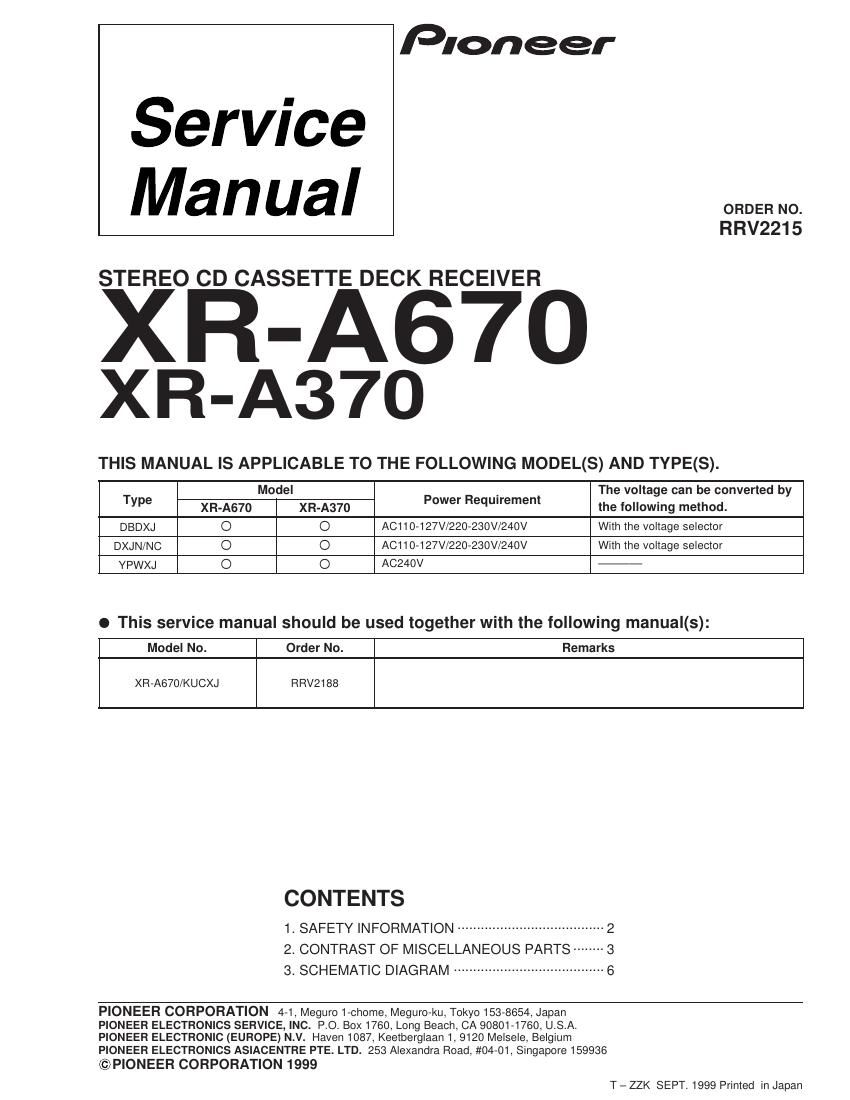

Pioneer xra 370 service manual
This is the 7 pages manual for pioneer xra 370 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xra 370 service manual (Ocr-read)
Page 1
XR-A670, XR-A370 2 1. SAFETY INFORMATION LABEL CHECK (for YPWXJ type) Additional Laser Caution 1. Laser Interlock Mechanism The position of the switch (S9501) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S9501) is pressed physically. Thus, the interlock will no longer function if the switch (S9501) is released physically and deliberatery. The interlock also does not function in the test mode *. Laser diode oscillation will continue, if pin 1 of CXA1821M (IC8101) on the CD ASSY mounted on the $M Loading Mechanism assembly is connected to GND, or else the terminals of Q8101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. * : Refer to page 66 on the service manual RRV2188. IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 780 - 785 nm Printed on the Rear Panel
Page 2
XR-A670, XR-A370 3 2. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE for XR-A670 Part No. Ref. No. Mark Symbol and Description XR-A670 XR-A670 XR-A670 XR-A670 Remarks /KUCXJ /DBDXJ /DXJN/NC /YPWXJ PCB ASSEMBLIES COMPLEX ASSY XWM3113 XWM3111 XWM3111 XWM3112 P6- 2 PRIMARY ASSY XWZ3224 XWZ3222 XWZ3222 XWZ3223 P6- 3 SUB TRANS ASSY XWZ3227 XWZ3226 XWZ3226 XWZ3226 P9- 1 DISPLAY ASSY XWZ3214 XWZ3212 XWZ3212 XWZ3212 PACKING SECTION P4- 1 Power Cord ADG7022 ADG1158 ADG1154 ADG1160 P4- 6 NSP Dry Cell Battery (R6P, AA) VEM-013 Not used VEM-013 Not used P4-10 Packing Case XHD3091 XHD3093 XHD3095 XHD3092 P4-11 NSP Warranty Card ARY7033 Not used Not used ARY7027 P4-13 Operating Instructions (English/French) XRE3024 Not used Not used XRE3024 P4-18 NSP Polyethylene Bag Not used Not used Not used AHG7033 For Power Cord Operating Instructions Not used XRE3025 Not used Not used (English/Chinese/Spanish) Operating Instructions (Thai) Not used Not used XRC3017 Not used Power-cord Plug Conversion Adapter Not used XKM3002 Not used Not used Accessories EXTERIOR SECTION P6- 7Power Transformer (AC120V) XTS3032 Not used Not used Not used P6- 7Power Transformer Not used XTS3031 XTS3031 XTS3031 (AC110-127V/220-230V/240V) P6- 8 Fuse (FU1 : 6.3A) REK1085 Not used Not used Not used P6- 8Fuse (FU1 : T5A) Not used AEK1061 AEK1061 AEK1061 P6- 9 NSP Fuse Caution Label XAX3157 Not used Not used Not used P6-20 Rear Panel XNC3040 XNC3042 XNC3042 XNC3041 P6-35 NSP Fuse Card AAX2374 AAX7098 AAX7098 AAX7098 P6-39 Cushion Leg B XEB3009 XEB3009 Not used XEB3009 P6-43 NSP Getter XAX3143 XAX3145 XAX3145 XAX3144 P6-44 Caution Label Not used Not used Not used PRW1018 P6-45 65 Label ORW1069 Not used Not used Not used Fuse (FU2, FU3 : T3.15A) Not used AEK1059 AEK1059 Not used*1 Fuse Card (For FU2, FU3) Not used AAX7493 AAX7493 Not used*2 NSP Name Label Not used Not used XAL3035 Not used*3 FRONT PANEL SECTION P9-17 Display Panel XAK3113 XAK3114 XAK3114 XAK3114 P9-19 FL Cover XAK3088 XAK3124 XAK3124 XAK3124 XR-A670/DBDXJ, DXJN/NC, YPWXJ and XR-A670/KUCXJ are constructed the same except for the following : Notes : For PCB ASSEMBLIES, Refer to ÒCONTRAST OF PCB ASSEMBLIESÓ and Ò3. SCHEMATIC DIAGRAMÓ. *1 Refer to Ò3. SCHEMATIC DIAGRAMÓ. *2 Stick Fuse Card on PRIMARY ASSY. *3 Stick Name Label on Rear Panel.
