pioneer xra 330 sw service manual

Extracted text from pioneer xra 330 sw service manual (Ocr-read)

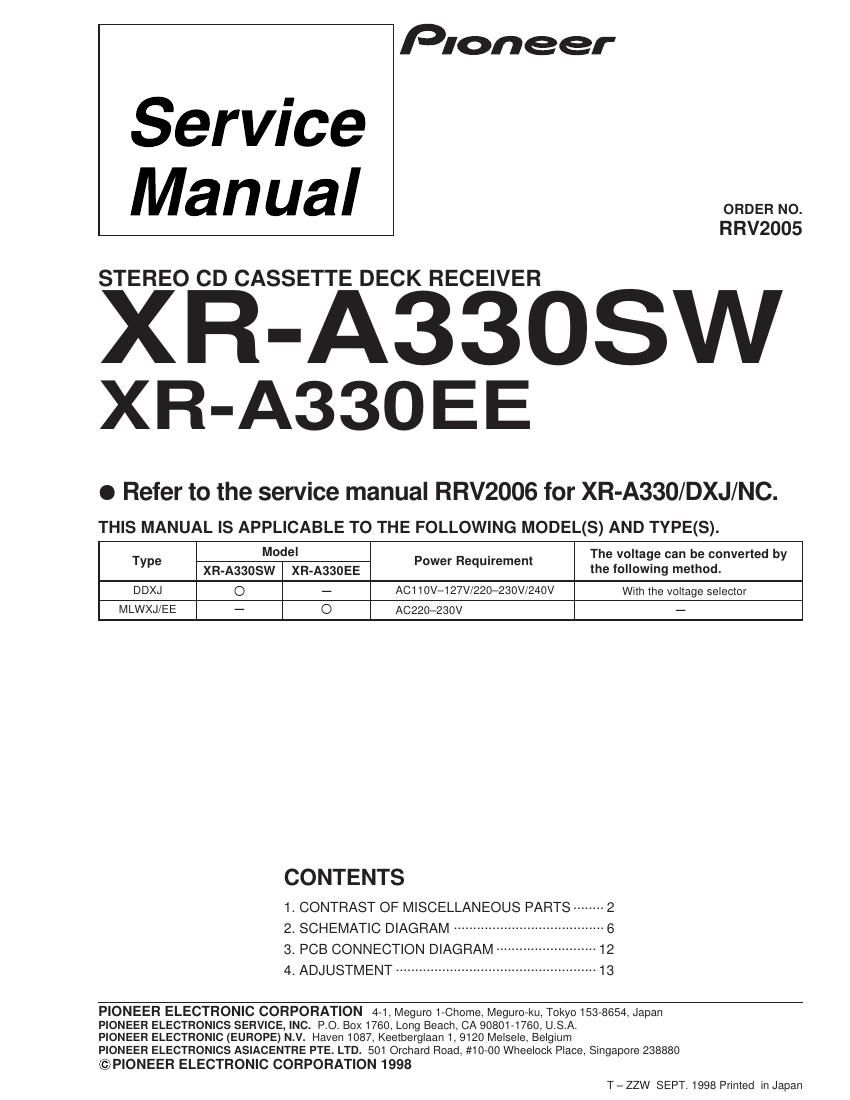

Page 1

Service
Manual

Pioneer

ORDER NO.
RRV2005

STEREO CD CASSETTE DECK RECEIVER

XR-A33OSW
XR-A330EE

0 Refer to the service manual RRV2006 for XR-A330/DXJ/NC.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model _ The voltage can be converted by
Type XR-A3305W XR-A330EE Power Reqmrement the following method.
DDXJ O - AC110V-127V/220-23OV/240V With the voltage selector
MLWXJ/EE - O A0220-230V -

CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS -------- 2

2_ SCHEMATIC DIAGRAM ....................................... 6

3. PCB CONNECTION DIAGRAM .......................... 12

4_ ADJUSTMENT .................................................... 13

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880

©P|ONEER ELECTRONIC CORPORATION 1998

T - ZZW SEPT. 1998 Printed in Japan

Page 2

XR-A33OSW, XR-A330EE

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: 0 Parts marked by "NSP" and (X) can not be supplied.
.The A markfound on some component parts indicates the importance ofthe safetyfacmr oft/1e part.
Therefore, when replacing, be sure to use parts of identical designation.
. Screws adjacent to V mark on the product are asedfor disassembly.
.Reference Nos. indicate the pages and Nos. in the service manualfor the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex.1 When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
5609 -> 56X10' -> 561.
47kQ -> 47><10' -> 473.
0.5 S! -> R50

1 Q -> 1R0 ..
Ex] When there are 3 eflective digits (such as in high prec 'on metalfilm re. tors).
5.62k Q -> 562 x 10 -> 5621 ...................................................... RN1/4PC @ F
l CONTRAST TABLE
XFi-A33OSW/DDXJ, XR»A330EE/MLWXJ/EE and XR-A330/DXJ/NC are constructed the same except for the following :
Part No.
Ref. No. Mark Symbol and Description XR-A330 XR-A3305W XR-A330EE Remarks
/DXJ/NC /DDXJ /MLWXJ/EE
ASSEMBLIES
NSP COMPLEX Assy XWM3031 XWM3036 XWM3085
P7- 3 ® PRIMARY Assy XW23048 XW23048 XW23056
P7- 29 ® ESUB TRANS Assy XW23049 XW23049 XW23155
P9- 1 ® DISPLAY Assy XWZ3047 XW23061 XWZ3062
P7- 4 ® FM/AM TUNER MODULE AXQ7065 AXQ7062 AXQ7069
PACKING SECTION

P3- 1 FM Antenna ADH7004 ADH7004 ADH7011

P3- 2 Operating Instructions XRE3010 Not used Not used
(English/ Spanish/ Portuguese)

P3- 2 Operating Instructions Not used XRE3013 XRE3013
(English/ Arabian/ Russian)

P3- 6 NSF Dry Cell Batery (R6P,AA) Not used VEM-013 VEM-013
P3- 10 Packing Case XHD3035 XHD3059 XHD3060
P3- 12 A Power Plug Adapter VKX1007 Not used Not used
P3- 13 A Power Cord ADG1154 ADG1158 ADG1154
P3- 15 NSP Caution Card XAX3130 XAX3130 Not used

SW Antenna Not used ADH7006 Not used

NSP Warranty Card Not used Not used ARY7022
EXTERIOR(1/2) SECTION

P5- 7 Display Panel XAK3030 XAK3030 XAK3062

NSP Getter XAX3105 XAX3105 XAX3106

NSP Name Label Not used XAL3020 Not used
EXTERIOR(2/2) SECTION

P7- 5 A T1 Power Tranceforrner XT33012 XT83012 XT83013

P7- 6 A FU2, FU3 Fuse (T1 .6A) AEK1056 AEK1056 Not used

P7- 7 A FU1 Fuse (T1 .6A) Not used Not used AEK1056

P7- 7 A FU1 Fuse (T3.15A) AEK1059 AEK1059 Not used
P7- 15 Rear Panel XNC3018 XNC3004 XNC3027
P9- 20 GND Plate B XNG3005 XNG3005 Not used

Note: I For ASSEMBLIES, refer to CONTRAST OF PCB ASSEMBLIES, 2. SCHEMATIC DIAGRAM" and
3. PCB CONNECTION DIAGRAM.
