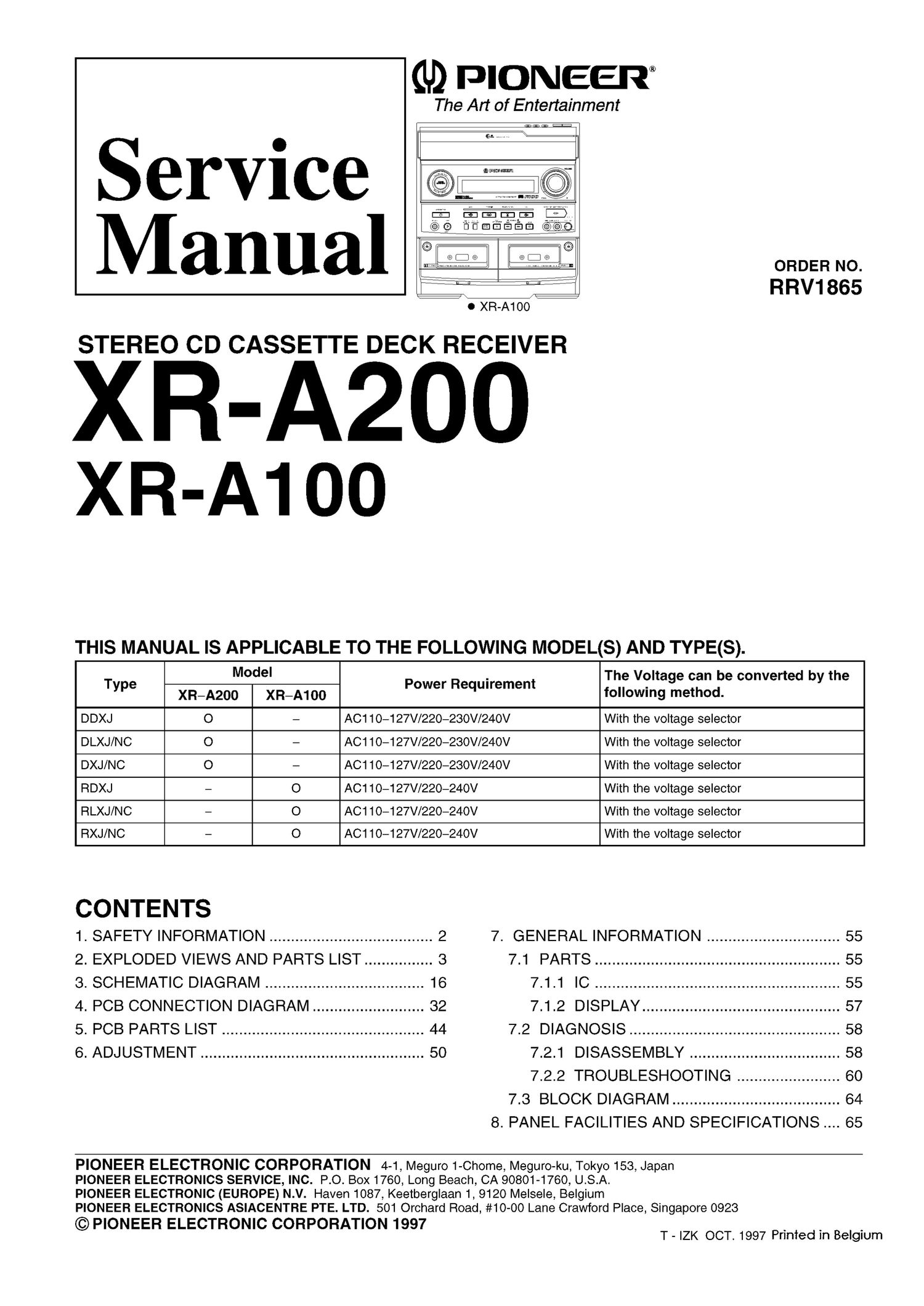

(U) PIONEER®

The Art of Entertainment

Service

anual

ORDER NO.

RRV1865

o XR-A100

STEREO CD CASSETTE DECK RECEIVER

XR-AZOO

XR-A1

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

DDXJ AC1 1 0-127V/220-230V/240V

Power Requirement

The Voltage can be converted by the
following method.

With the v0

DLXJ/NC

AC1 1 O-127V/220-230V/240V

With the vo

DXJ/ NC AC1 1 0-1 27V/220-23OV/240V

With the v0

With the v0
With the v0
With the vo

RDXJ I AC110-127V/220-240V
RLXJ/NC AC110-127V/220-240V
RXJ/NC AC110-127V/220-240V

CONTENTS

1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST ................ 3
3. SCHEMATIC DIAGRAM ..................................... 16
4. PCB CONNECTION DIAGRAM .......................... 32
5. PCB PARTS LIST ............................................... 44
6. ADJUSTMENT .................................................... 50

7. GENERALINFORMATION ............................... 55
7.1 PARTS ......................................................... 55
7.1.1 IC ......................................................... 55
7.1.2 DISPLAY .............................................. 57

7.2 DIAGNOSIS ................................................. 58
7.2.1 DISASSEMBLY ................................... 58
7.2.2 TROUBLESHOOTING ........................ 60

7.3 BLOCK DIAGRAM ....................................... 64

8. PANEL FACILITIES AND SPECIFICATIONS 65

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997

T - IZK OCT. 1997 Printed in Belgium

Page 2

XR-A200, XR-A100

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

LABEL CHECK (For DLXJ/NC and RLXJ/NC types)

/

/

\

1}; CLASS 1
LASER PRODUCT

[ ] Name Label

XAX3016 : DLXJ/NC Type
XAX3004 : RLXJ/NC Type

Additional Laser Caution

1. Laser Interlock Mechanism

The position of the switch (88501) for detecting loading
state is detected by the system microprocessor, and
the design prevents laser diode oscillation when the
switch (88501) is pressed physically.

Thus, the interlock will no longerfunction if the switch (88501)
is released physically and deliberatery.

The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 62 of
LA9240ML (IC8101) on the CD ASSY mounted on the
$M Loading Mechanism assembly is connected to GN D,
or else the terminals of 08101 are shorted to each other
(fault condition).

.When the cover is opened, close viewing of the

objective lens with the naked eye will cause exposure
to a Class 1 laser beam.

* : Refer to page 54.
