Pioneer xra 100 service manual

This is the 2 pages manual for pioneer xra 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer xra 100 service manual

Extracted text from pioneer xra 100 service manual (Ocr-read)


Page 1

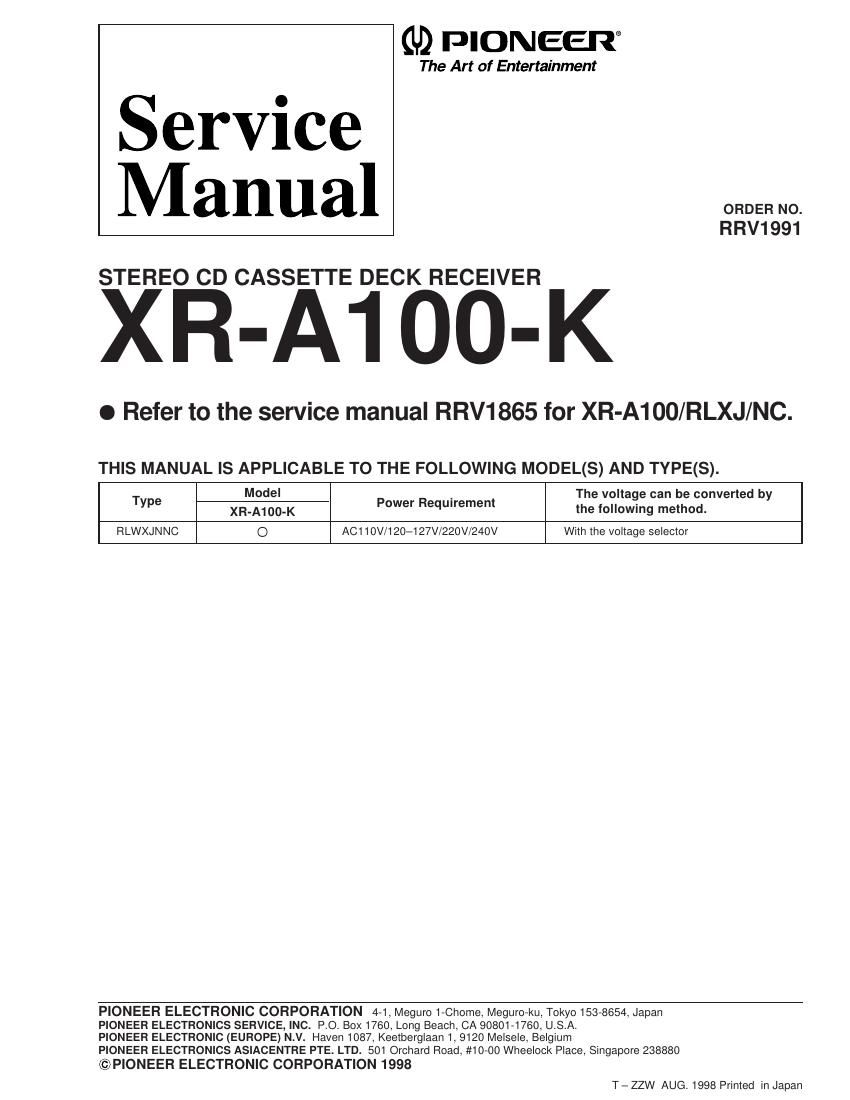

XR-A100-K 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE XR-A100-K/RLWXJNNC and XR-A100/RLXJ/NC are constructed the same except for the following : Part No. XR-A100 /RLXJ/NC Ref. No. Symbol and Description Remarks MarkXR-A100-K /RLWXJNNC PACKING P3-2 Operating Instructions XRE3002 Not used (English/ Traditional Chinese/ Simplified Chinese) Operating Instructions Not used XRC3013 P3-10 Packing Case XHD3004 XHD3065 EXTERIOR(1/2) P5-4 Mic Knob XAB3001 XAB3002 P5-6 Tray Cap XAK3008 XAK3016 P5-7 Display Panel XAK3003 XAK3005 P5-8 Bonnnet Case XZN3001 XZN3005 EXTERIOR(2/2) P7-26 NSP Name Label XAX3004 XAL3001 FRONT PANEL SECTION P9-23 NSP Front Panel Assy XXG3002 XXG3025
