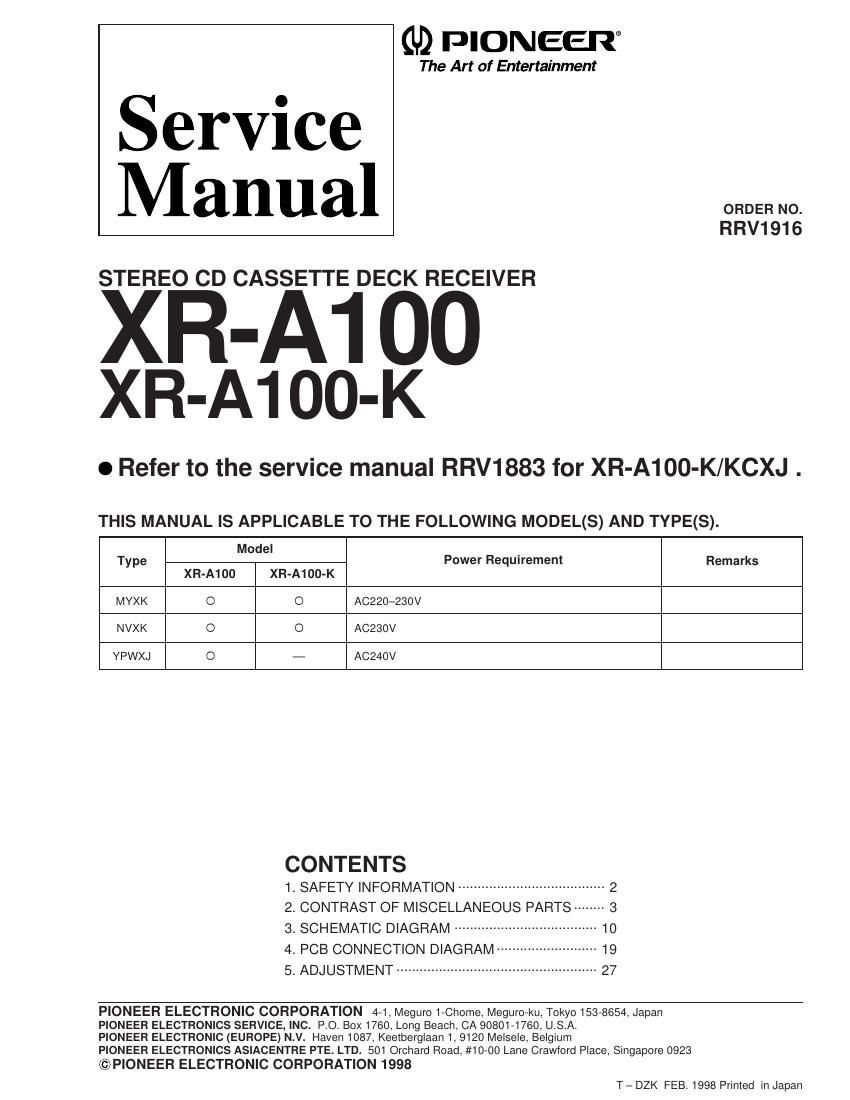

Page 1

Service
Manual

(U) PIONEER®

The Art of Entertainment

ORDER NO.
RRV1916

STEREO CD CASSETTE DECK RECEIVER

XR-A1 00

XR-A1 OO-K

0 Refer to the service manual RRV1883 for XR-A100-K/KCXJ .

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model .
Type Power Requirement Remarks
XR-A100 XR-A100-K

MYXK o o Ac220-230v

NVXK o o A0230v

YPWXJ o - A0240v
CONTENTS
1_ SAFETY INFORMATION ...................................... 2
2, CONTRAST OF MISCELLANEOUS PARTS -------- 3
3- SCHEMATIC DIAGRAM ..................................... 10
4' PCB CONNECTION DIAGRAM .......................... 19
5_ ADJUSTMENT .................................................... 27

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach, CA 90801-1760, USA.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 MelseIe, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

©P|ONEER ELECTRONIC CORPORATION 1998

T- DZK FEB. 1998 Printed in Japan

Page 2

XR-A100, XR-A100-K

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
MYXKType LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
vmo! SHOULD BE DONE BY A SPECIALLY
Avamuu j: :uojatuxttus ohitattn- INSTRUTED PERSON.
can out altthna risky-ulna).

usenueuyuu. Ala )ulso sacuuen.
VARNING!

LASER DIODE CHARACTERISTICS 7
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 , 785 nm

asynlig inn-uranium; mt: amn- an
I: Appn-d och spixrln a: uxkuppud.
htraktl oj strum.

PRWIm

MYXK Type

AnmisiL

[SYNLIB LASERWALINE VED ANNE NAN SIKKBIED 35F»
BI'IVI'IEI'IE EN DE AF FWKTIUN.

"MEGA HDSKTTEISE rm STRAUM.

VORSICHT!
UIISICHTBARE uszmmuus ml" nus, wmu nicm
[1mm WP!) EMU Isl! incur m STRAHL Aussmin!
virwwad

NVXK Type

CAUTION
INVISIBLE LASER RADIATION

WHEN OPEN, AVOID
EXPOSURE TO BEAM
unwwso

Additional Laser Caution

1. Laser Interlock Mechanism

The position of the switch ($8501 ) for detecting loading

state is detected by the system microprocessor, and

the design prevents laser diode oscillation when the

switch (88501) is pressed physically.

Thus, the interlock will no longer function if the switch (88501)
CLASS 1 is released physically and deliberatery.
LASER PRODUCT The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 62 of
LA9240ML 008101) on the CD ASSY mounted on the
SM Loading Mechanism assembly is connected to GND,
or else the terminals of 08101 are shorted to each other
(fault condition).

2.When the cover is opened, close viewing of the
objective lens with the naked eye will cause exposure
Name Label to a Class 1 laser beam.

MYXK, NVXK and YPWXJ Types

* : Refer to page 52 on the service manual RRV1883.
