Pioneer xr 3000 service manual

This is the 3 pages manual for pioneer xr 3000 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer xr 3000 service manual

Extracted text from pioneer xr 3000 service manual (Ocr-read)


Page 1

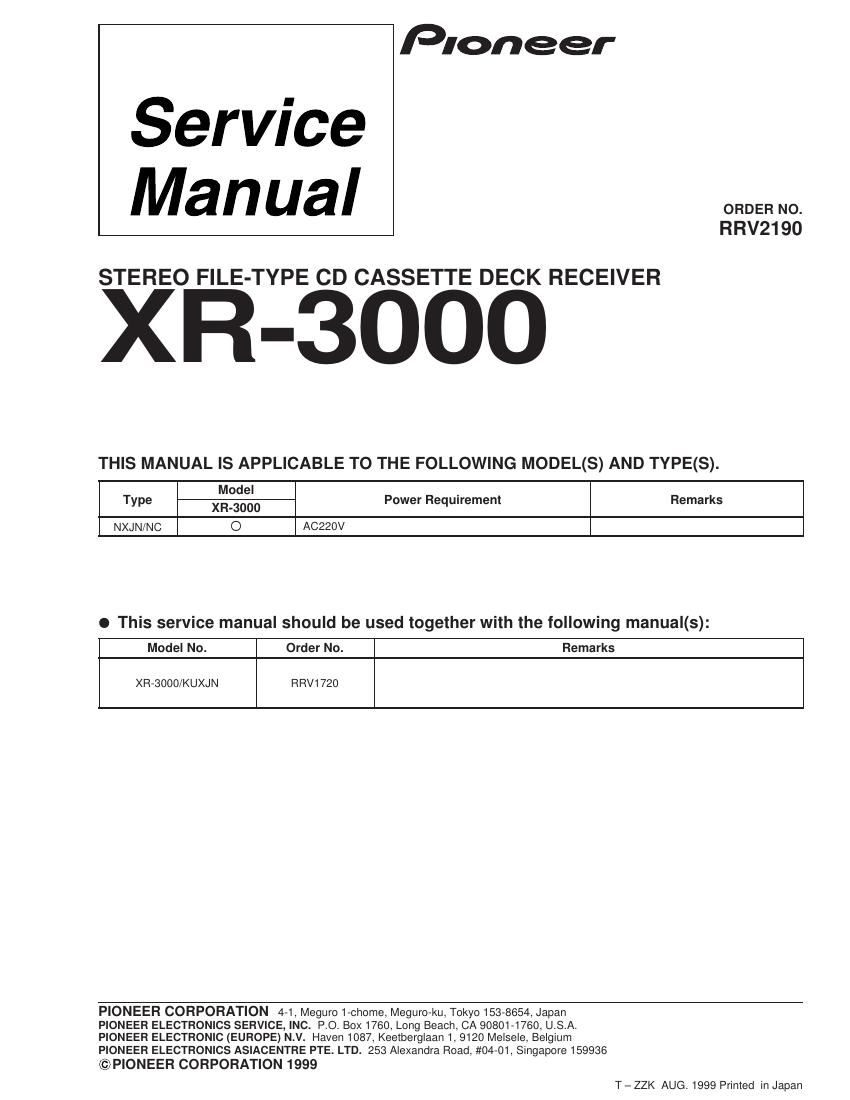

XR-3000 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE Notes : For ASSEMBLIES, refer to ÒCONTRAST OF PCB ASSEMBLIESÓ. *1 Stick Fuse Label on PRIMARY ASSY. *2 Stick Fuse Label on SECONDARY ASSY. Part No. Ref. No. Mark Symbol and Description XR-3000 XR-3000 Remarks /KUXJN /NXJN/NC ASSEMBLIES P6- 1 FM/AM TUNER MODULE AXQ7061 AXQ7065 SUB ASSY RWM2004 XWM3120 P6- 3 POWER SUPLLY ASSY RWZ4140 XWZ3237 P6- 6 NSP PRIMARY ASSY RWZ4148 XWZ3238 P12- 2 FRONT ASSY RWZ4142 XWZ3235 PACKING SECTION P3- 6 Operating Instructions (English) RRB1173 Not used P3-13 Packing Case RHG1766 XHD3111 Operating Instructions (Thai) Not used XRC3018 EXTERIOR SECTION P6- 9 Cord Stopper CM-22C CM-22B P6-10 AC Power Cord PDG1064 PDG1043 P6-12Fuse (FU201, FU202 : 1.6A) REK1077 Not used P6-12Fuse (FU201, FU202 : 1.25A) Not used REK1023 P6-13Fuse (FU1 : 8A) REK1086 Not used P6-13 Fuse (FU1 : 2.5A) Not used REK1026 P6-14Power Transformer (T1) (AC120V) RTT1322 Not used P6-14Power Transformer (T1) (AC220V) Not used XTS3035 P6-47 65 Label ARW7050 Not used Fuse Label Not used XAX3160 *1 Fuse Label Not used XAX3161*2 FRONT PANEL SECTION P12-50 Front Panel RNT1243 XMB3025 XR-3000/NXJN/NC and XR-3000/KUXJN are constructed the same except for the following : CONTRAST OF PCB ASSEMBLIES XWZ3235 and RWZ4142 are constructed the same except for the following : FRONT ASSY F M Mark Symbol and DescriptionPart No. Remarks RWZ4142 XWZ3235 IC1201, IC1202, IC8001, IC8101 XLA4558F-P BA4558F-HT IC1501 PD4740B PE5135A9 S1401ÐS1409, S1418ÐS1420 ASG1034 ASG1051
