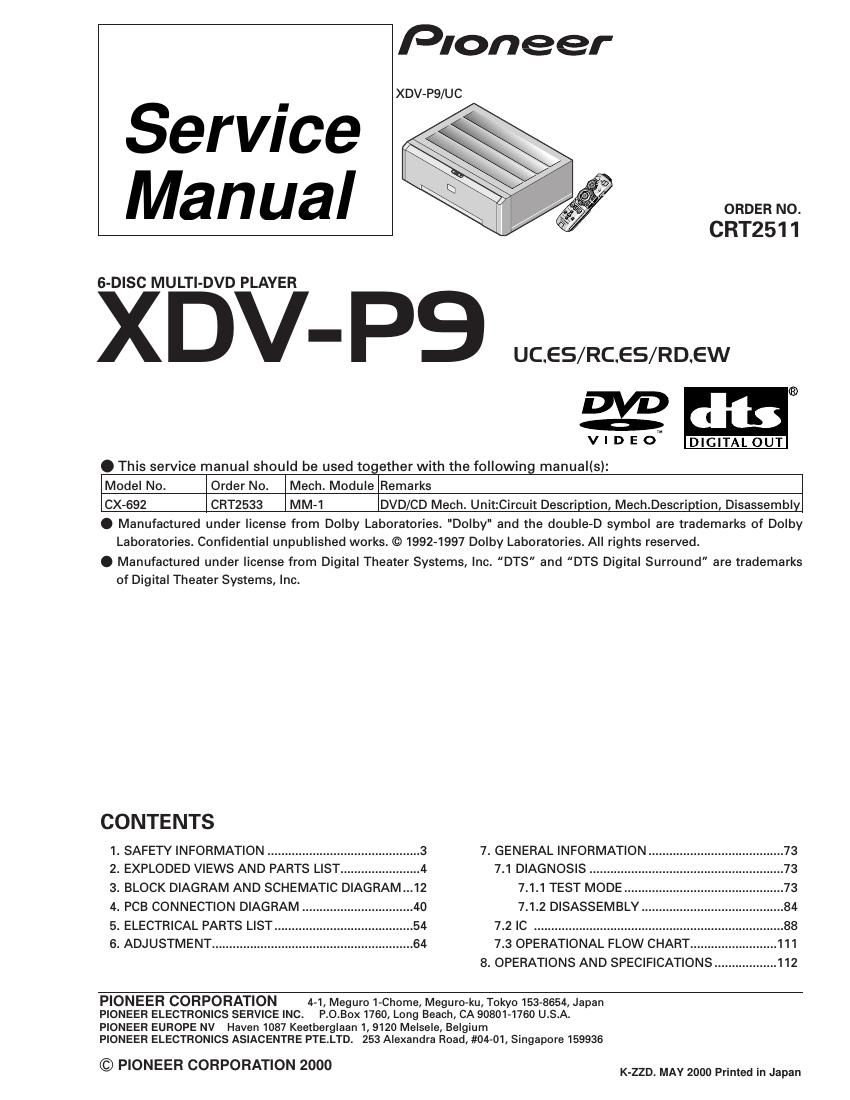

Pioneer xdvp 9 service manual
This is the 120 pages manual for pioneer xdvp 9 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xdvp 9 service manual (Ocr-read)
Page 1
2 XDV-P9 -DVD Player Service Precautions 1. Never adjust the LD VR in the pickup unit to protect the pickup from electrical damages. 2. For pickup unit(CGY2020) handling, please refer to"Disassembly"(see page 84). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(set the short switch of the pickup unit to the SHORT side).3. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. 4. Please adjusting the skew after changing the pickup unit(see page 67). -Transportation of Multi-DVD Player A transport screw has been attached to the set in order to protect it during transportation. After removing the transport screw, cover the hole with the supplied seal. Be sure to remove the transport screw before mounting the set. The removed transport screw should be retained in the accessory bag for use the next time the set is transported. Seal After removing the transport screw, cover the hole with the supplied seal. Transport screw Attach to the original position before transporting the set.
Page 2
3 XDV-P9 1. SAFETY INFORMATION 1.1 XDV-P9/UC CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1.2 XDV-P9/EW 1. Safety Precautions for those who Service this Unit. - Follow the adjustment steps (see pages 64 through 71)in the service manual when servicing this unit. When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A CLASS 1 LASER PRODUCT label is affixed to the rear of the player.3. The triangular label is attached to the mechanism unit frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 650 nanometers(DVD) Wavelength = 780 nanometers(CD)
