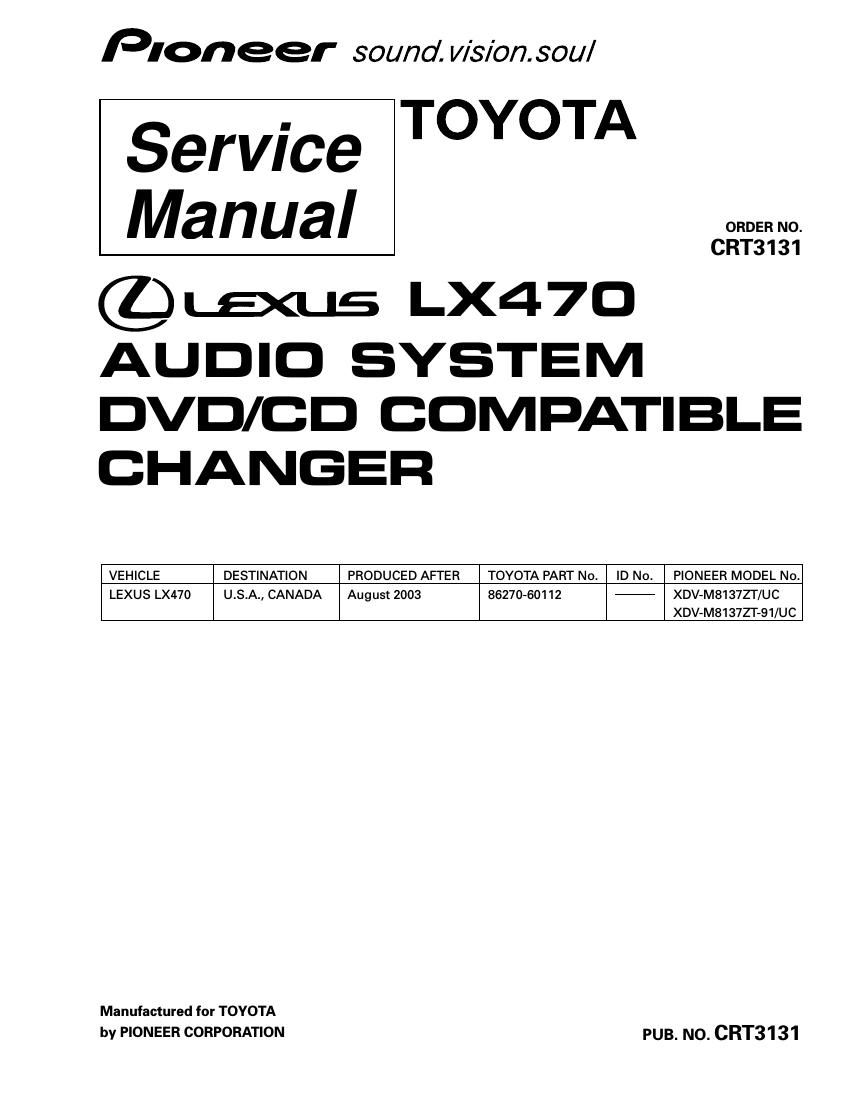

Pioneer xdvm 8137 zt 91 service manual

Page 2

For details, refer to "Important symbols for good services".

%

VIDEO

. This service manual should be used together with the manualjs) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following

manual(s).

Model No. Order No. Mech. Module Remarks

XDV»M81OGZT/UC CRT2537

CX-692 CRT2533 MM-l DVD/CD Mech. Unit:Circuit Description, Mech.Description, Disassembly

. The supplementary models are identical with the original ones except for the following items.

XDV-M8137ZT-91/UC

Description Part No.

Polyethylene Bag CEGl 181

Air Cap CEGlZ88(Non Spare Part)
Carton CHG4170

Contain BoX(1/2l CHL5166

Protector CHP2341(TOP)

Protector CHP2342(BOTI'OM)

[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:

1. Product safety

You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

N

. Adjustments

To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.

3. Cleaning \

. . For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
V proper cleaning should be performed to restore their performances.

J

4 Shipping mode and shipping screws

To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.

5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
fit prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.

E XDV~M8137ZT/UC
