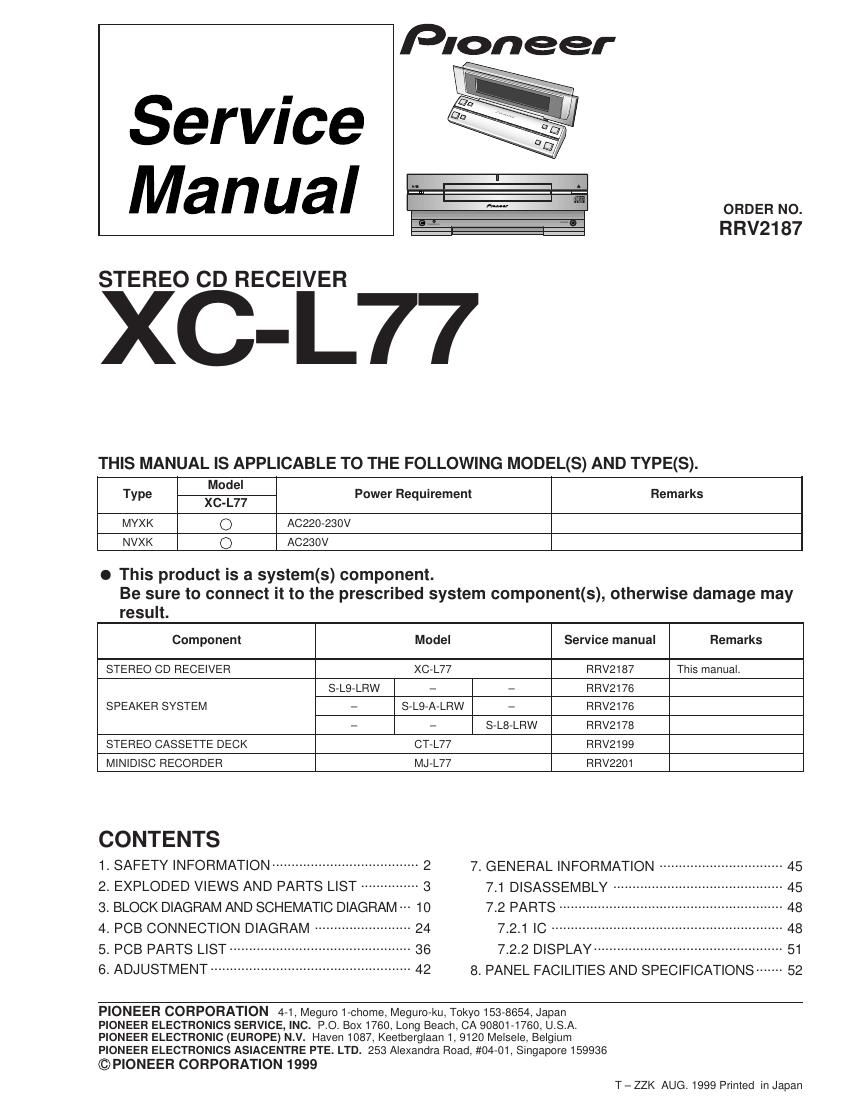

Pioneer xcl 77 service manual
This is the 55 pages manual for pioneer xcl 77 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xcl 77 service manual (Ocr-read)
Page 1
2 XC-L77 WARNING! Lithium batteries. Danger of explo- sion. Replacement must be done by qualified personnel and only by fol- lowing the instructions given in the service manual. This warning is stated on the product or in the operating instructions. When replac- ing the lithium batteries, follow the note below. Dispose of the used battery promptly. Keep away from children. Do not disas- semble and do not dispose of in fire. The battery used in this device may present a fire or chemical hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace only with the same Part Number. Use of another battery may present a risk of fire or explosion. Note: The lithium battery installation po- sition is shown in the exploded views. ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. Denne advarsel or angivet på produktet eller i brugsvejledningen. Ved udskiftning af lithium batterierne følges nedenstående anveisning. Batterierne må kun udskiftes med batteri- er af samme type og mærke. 1. SAFETY INFORMATION LITHIUM BATTERY NOTICE LABEL CHECK NVXK typeMYXK type IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 780 Ð 785 nm 1. Laser Interlock Mechanism The loading position detect switch (in CD mechanism assembly) is set to "CLMP ON(CD CLOSE)" (ON:low level,OFF:high level) position, the system control IC(IC5501) get the "CLMP" signal, and hand the laser "LDON" signal to IC1101. Then a laser diode can be lighted except when the level of signal CLMP is low. The interlock also does not function in the test mode*. Laser diode oscillation will continue, if pin 1 of CXA1821M (IC1101) on the RF UNIT is connected to GND, or pin 19 is connected to low level (ON), or else the terminals of Q1101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. * : Refer to page 42. Additional Laser Caution
Page 2
3 XC-L77 MYXK type only 1 19 18 NVXK type only 8 5 2 3 4 7 6 1616 DISPLAY UNITREMOTE CONTROL UNIT 11(1/2)15 16 14 13 10(1/2) 1 11(1/2) 17 10(2/2) 16 9(2/2) 9(1/2) MYXK type onlyMYXK type only NVXK type only 1 AC Power Cord See Contrast table (2) 2 AM Loop Antenna ATB7007 3 FM Wire Antenna ADH7005 4 Display unit connecting cord ADE7014 NSP 5 Lithium Battery(CR2025) VEM1009 6 Operating Instructions See Contrast table (2) 7 Operating Instructions See Contrast table (2) 8 Operating Instructions See Contrast table (2) 9 Pad Front AHA7260 10 Pad Rear AHA7261 2.1 PACKING 2. EXPLODED VIEWS AND PARTS LIST NOTES: · Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. (1) PACKING PARTS LIST Mark No. Description Part No. (2) CONTRAST TABLE XC-L77/MYXK and NVXK are constructed the same except for the following : Mark No. Symbol and DescriptionPart No. Remarks MYXK Type NVXK Type 1 AC Power Cord ADG7010 ADG7009 6 Operating Instructions (English) Not used ARB7195 7 Operating Instructions (Dutch/Swedish/Spanish/Portuguese) ARC7250 Not used 8 Operating Instructions (English/French/German/Italian) ARE7221 Not used 13 Packing Case AHD7766 AHD7768 18 Sub packing Not used AHD7770 19 Fuse (T5A) Not used AEK7001 Mark No. Description Part No. 11 Pad Display AHA7262 12 ¥ ¥ ¥ ¥ ¥ 13 Packing Case See Contrast table (2) 14 Packing Sheet Z23-007 15 Polyethylene Bag Z21-038 NSP 16 Polyethylene Bag CEG1116 NSP 17 Warranty Card ARY7022 18 Sub Packing See Contrast table (2) 19 Fuse (T5A) See Contrast table (2)
