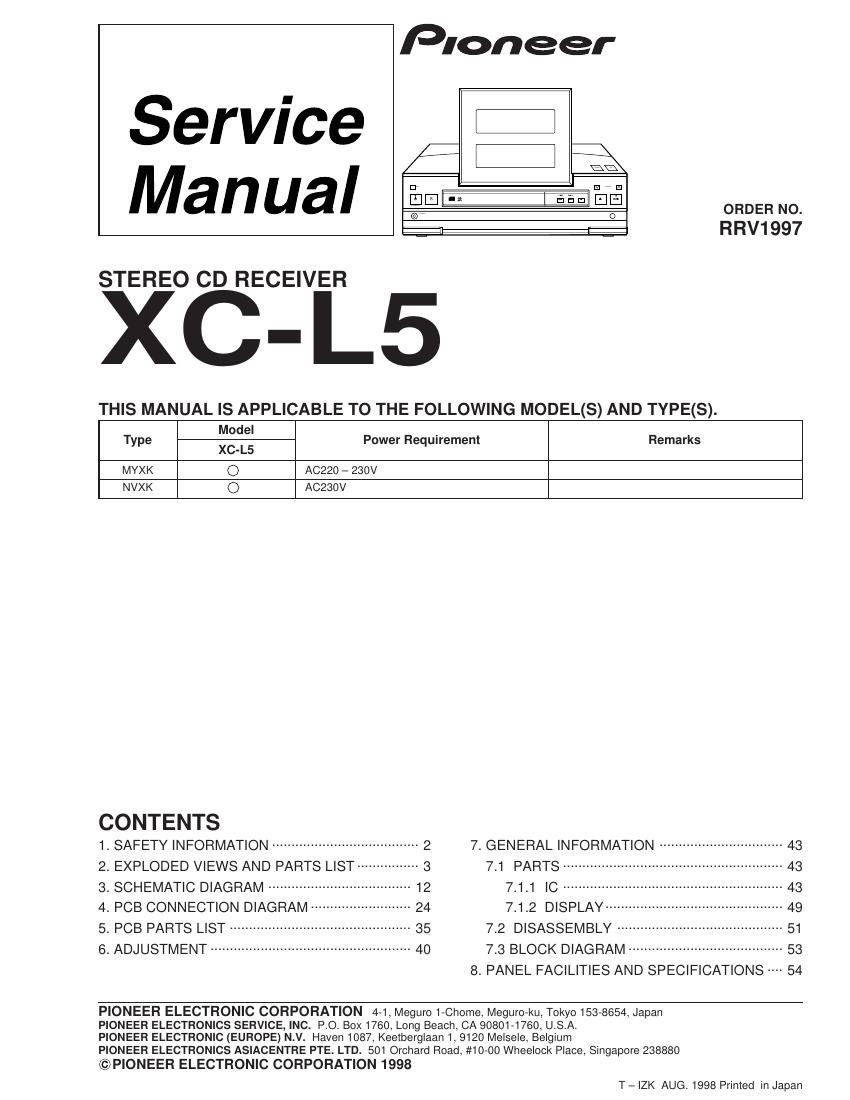

Pioneer xcl 5 service manual
This is the 57 pages manual for pioneer xcl 5 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xcl 5 service manual (Ocr-read)
Page 1
2 XC-L5 WARNING! Lithium batteries. Danger of explo- sion. Replacement must be done by qualified personnel and only by fol- lowing the instructions given in the service manual. This warning is stated on the product or in the operating instructions. When replac- ing the lithium batteries, follow the note below. Dispose of the used battery promptly. Keep away from children. Do not disas- semble and do not dispose of in fire. The battery used in this device may present a fire or chemical hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace only with the same Part Number. Use of another battery may present a risk of fire or explosion. Note: The lithium battery installation po- sition is shown in the exploded views. ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. Denne advarsel or angivet på produktet eller i brugsvejledningen. Ved udskiftning af lithium batterierne følges nedenstående anveisning. Batterierne må kun udskiftes med batteri- er af samme type og mærke. 1. SAFETY INFORMATION LITHIUM BATTERY NOTICE LABEL CHECK NVXK type Printed on the Rear PanelMYXK type IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mw WAVELENGTH: 780 Ð 785 nm 1. Laser Interlock Mechanism The loading position detect switch (in CD mechanism assembly) is set to "CLMP ON(CD CLOSE)" (ON:low level,OFF:high level) position, the system control IC(IC5501) get the "CLMP" signal, and hand the laser "LDON" signal to IC1101. Then a laser diode can be lighted except when the level of signal CLMP is low. The interlock also does not function in the test mode*. Laser diode oscillation will continue, if pin 1 of CXA1821M (IC1101) on the CDMAIN UNIT is connected to GND, or pin 19 is connected to low level (ON), or else the terminals of Q1101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. * : Refer to page 41. Additional Laser Caution
Page 2
3 XC-L5 Mark No. Symbol and DescriptionPart No. Remarks MYXK type NVXK type 2 Power Cord ADG7010 Not used 5 Operating Instructions (English/French/German/Italian) ARE7171 Not used 6 Operating Instructions (Dutch/Swedish/Spanish/Portuguese) ARE7172 Not used 18 Packing Case AHD7619 AHD7620 20 Operating Instructions (English) Not used ARB7153 21 Sub Packing Not used AHD7618 22 Power Cord Not used ADG700923 Fuse (T5A) Not used AEK7001 7 23 NVXK only 22 17 92 MYXK only 3 13 1418 15(1/2) 15(2/2)4 12 Litium Battery1 10 11 20 13 58 619 16(2/2) 16(1/2) 21 NVXK only MYXK only 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: · Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. 1 Remote Control Unit Holder AAH7013 2 Power CordSee Contrast table (2) 3 FM Antenna ADH7005 NSP 4 Vinyl Bag AHG7031 5 Operating InstructionsSee Contrast table (2) (English/French/German/Italian) 6 Operating InstructionsSee Contrast table (2) (Dutch/Swedish/Spanish/Portuguese) NSP 7 Demo Caution ARR7016 NSP 8 Warranty Card (E-J) ARY7022 9 AM Loop Antenna ATB7007 10 Remote Control Unit AXD7170 (CU-XC005) 11 Battery Case AZE7116 NSP 12 Lithium Battery (CR2025) VEM1009 13 Polyethylene Bag Z21-038 NSP 14 Technibond431 AEH7006 15 Pad F AHA7219 16 Pad R AHA7220 17 S Pad AHA7230 18 Packing CaseSee Contrast table (2) 19 Seat Z23-007 20 Operating InstructionsSee Contrast table (2) (English) 21 Sub PackingSee Contrast table (2) 22 Power CordSee Contrast table (2) 23 Fuse (T5A)See Contrast table (2) (2) CONTRAST TABLE MYXK and NVXK type are constructed the same except for the following :
