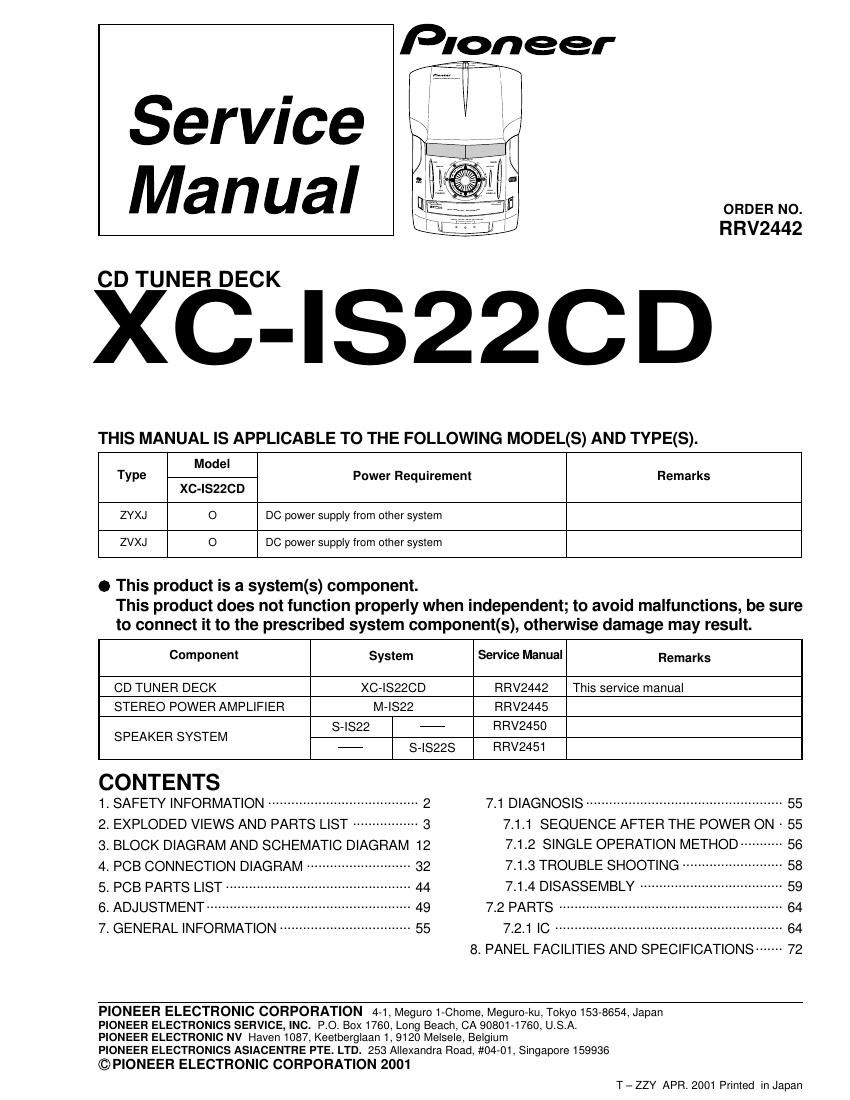

Pioneer xcis 22 cd service manual
This is the 76 pages manual for pioneer xcis 22 cd service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xcis 22 cd service manual (Ocr-read)
Page 1
XC-IS22CD 2 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRCUTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 708-785 nm ZYXJ type Only ZYXJ type Only ZVXJ type Only (Rear view) LABEL CHECK 1. Laser Interlock Mechanism The loading position detect switch (in CD mechanism assembly) is set to "CLMP ON(CD CLOSE)" (ON:low level,OFF:high level) position, the system control IC(IC5501) get the "CLMP" signal, and hand the laser "LDON" signal to IC1101. Then a laser diode can be lighted except when the level of signal CLMP is low. The interlock also does not function in the test mode∗. Laser diode oscillation will continue, if pin 1 of TA2150FN (IC1101) on the CD ASSY is connected to GND, or pin 10 is connected to low level (ON), or else the terminals of Q1101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. ∗ : Refer to page 52. Additional Laser Caution
Page 2
3 XC-IS22CD 2.1 PACKING 2. EXPLODED VIEWS and PARTS LIST NOTES: - Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. - The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to mark on the product are used for disassembly. (2) CONTRAST TABLE XC-IS22CD/ZYXJ and ZVXJ are constructed the same except for the following: Mark ZYXJ type ZVXJ type 2 Operating Instructions XRC3040 Not used (Spanish/Portuguese/Swedish/Dutch) 3 Operating Instructions XRE3040 Not used (English/French/German/Italian) 4 Operating Instructions Not used XRB3007 (English) 9 Power Cord Not used ADG1156 Part No. Remarks Symbol and Description No. 7 1 6 8 15 9 4 2 3 5 10 13 14 12 11 ZVXJ type Only S T A N D B Y / O NDIMMERM U T ED IS P T U N E RL I N E 1 . 2 123C L R 456> 1 0 7891 0 / 0 SLEEPP R O G R A MRANDOM REPEAT M O N O SOUND MODEV O L (1) PACKING PARTS LIST Mark No. Description Part No. 1 FM Antenna ADH7005 2 Operating Instructions See Contrast table (2) (Spanish/Portuguese/Swedish/Dutch) 3 Operating Instructions See Contrast table (2) (English/French/German/Italian) 4 Operating Instructions See Contrast table (2) (English) NSP 5 Warranty Card ARY7022 6 AM Loop Antenna ATB7009 7 Remote Control Unit XXD3034 NSP 8 Dry Cell Batteries(AA/R6) VEM-013 9 Power Cord See Contrast table (2) NSP 10 Polyethylene Bag Z21-038 (0.03 x 230 x 340) 11 Protector L XHA3120 12 Protector R XHA3121 13 Packing Sheet AHG7053 14 Packing Case XHD3169 15 Battery Cover XZN3115
