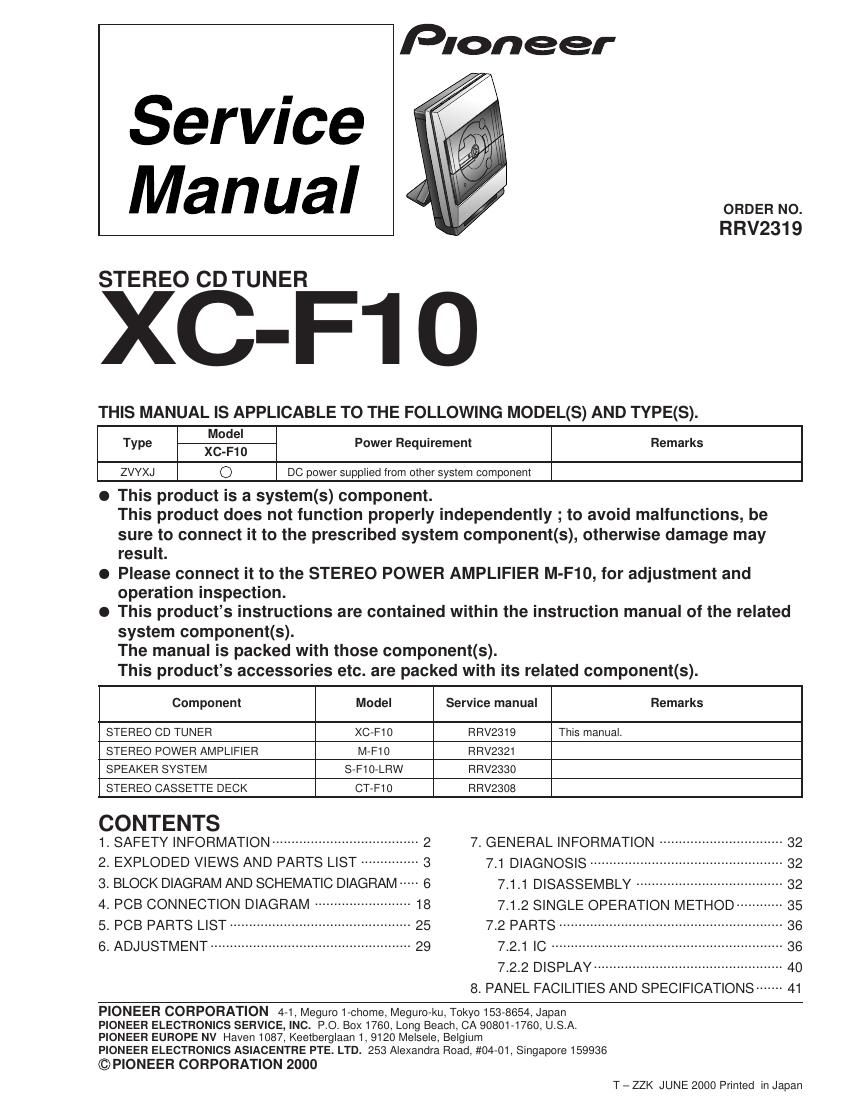

Pioneer xcf 10 service manual
This is the 43 pages manual for pioneer xcf 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer xcf 10 service manual (Ocr-read)
Page 1
2 XC-F10 WARNING! Lithium batteries. Danger of explo- sion. Replacement must be done by qualified personnel and only by fol- lowing the instructions given in the service manual. This warning is stated on the product or in the operating instructions. When replac- ing the lithium batteries, follow the note below. Dispose of the used battery promptly. Keep away from children. Do not disas- semble and do not dispose of in fire. The battery used in this device may present a fire or chemical hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace only with the same Part Number. Use of another battery may present a risk of fire or explosion. Note: The lithium battery installation po- sition is shown in the exploded views. ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. Denne advarsel or angivet på produktet eller i brugsvejledningen. Ved udskiftning af lithium batterierne følges nedenstående anveisning. Batterierne må kun udskiftes med batteri- er af samme type og mærke. 1. SAFETY INFORMATION LITHIUM BATTERY NOTICE LABEL CHECK 1. Laser Interlock Mechanism The position of the switch (S5907) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S5907) is not on CLOSE terminal side (CDO/C signal is high level). Thus, the interlock will no longer function if the switch (S5907) deliberately set to CLOSE terminal side (low level). The interlock also does not function in the test mode*. Laser diode oscillation will continue, if pin 9 of TA2150FN (IC1101) on the SELF-CHACK CD ASSY is connected to GND, or pin 10 is connected to low level (ON), or else the terminals of Q1101 are shorted to each other (fault condition). 2. When the DOOR WINDOW is removed, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. * : Refer to page 29. Additional Laser Caution IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 780 Ð 785 nm
Page 2
3 XC-F10 2.1 PACKING 2. EXPLODED VIEWS AND PARTS LIST NOTES: · Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. · PACKING PARTS LIST Mark No. Description Part No. 1 Front Pad M AHA7295 2 Rear Pad M AHA7296 3 Packing Case CD/ZVY AHD7894 4 Sheet Z23-026 5 Stand Note ARM7044 4 3 2 (1/2) 2 (2/2) 5 1 FRONT
