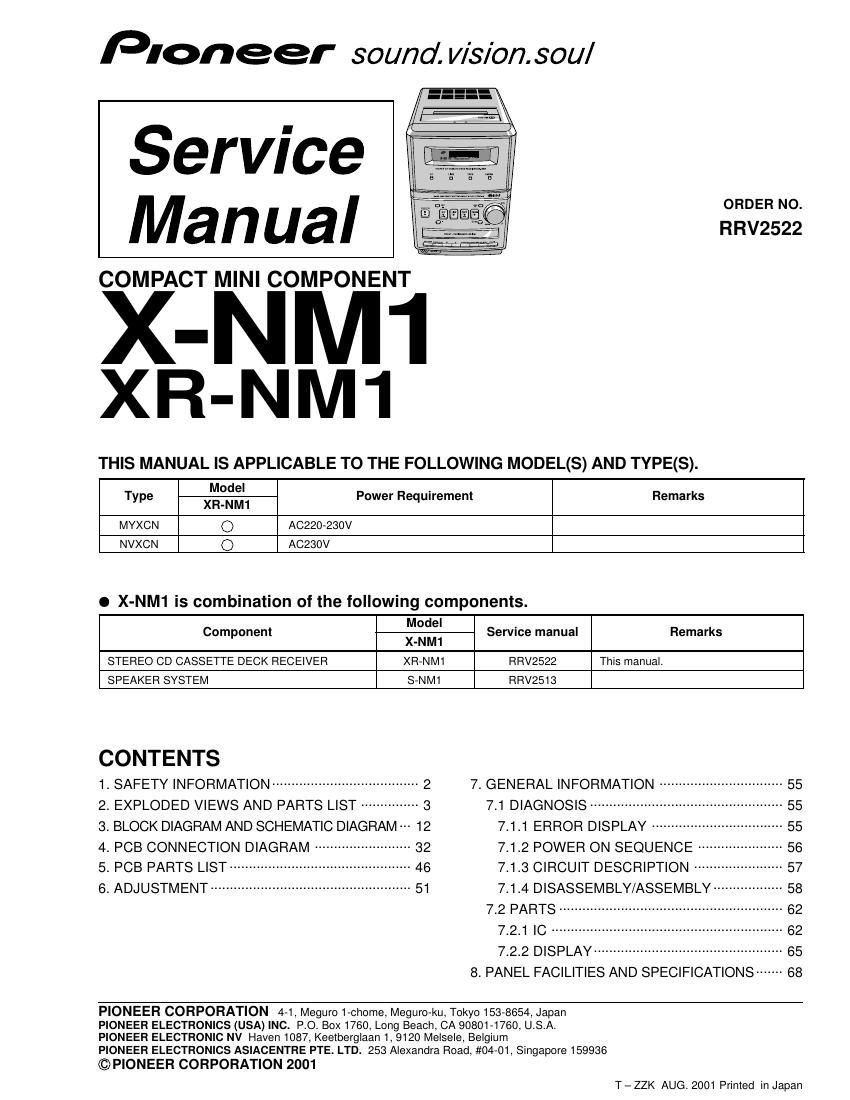

Page 1

Pioneer sound. vision. soul

Service

ORDER NO.
anua nnvzszz
COMPACT MINI COMPONENT
X R - N M 1
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model .
Type XR-NM1 Power Requurement Remarks
MYXCN O A0220-230v
NVXCN O Aczaov
o X-NM1 is combination of the following components.
Component Model Service manual Remarks
X-NM1
STEREO CD CASSETTE DECK RECEIVER XR-NM1 RRV2522 This manual.
SPEAKER SYSTEM S-NM1 RRV2513
CONTENTS
1_ SAFETY lNFORMATION ...................................... 2 7 GENERAL INFORMATION ................................ 55
2. EXPLODED VIEWS AND PARTS LIST --------------- 3 7.1 DIAGNOSIS ------------------- -- 55
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 12 7.1.1 ERROR DISPLAY -- 55
4. PCB CONNECTION DIAGRAM -- ----- 32 7.1.2 POWER ON SEQUENCE ----- -- 56
5. PCB PARTS LIST ----------------------------- 46 7.1.3 CIRCUIT DESCRIPTION ------ -- 57
6_ ADJUSTMENT .................................................... 51 714 DlSASSEMBLY/ASSEMBLY .. 58
72 PARTS ............................................ .. 62
7.21 To ............... .. 62
7.2.2 DISPLAY 65

8. PANEL FACILITIES AND SPECIFICATIONS ------- 68

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEEFI CORPORATION 2001
T - ZZK AUG. 2001 Printed in Japan

Page 2

X-NM1, XR-NM1

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

LABEL CHECK

CLASS 1
LASER PRODUCT

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPEFIATlON OF THE APPARATUS
SHOULD BE DONE BV A SPEClALLY
INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 5 mW
WAVELENGTH: 760 . 800 nm

Additional Laser Caution

. Laser Interlock Mechanism

The loading position detect switch (in CD mechanism
assembly) is set to "CLMP ON(CD CLOSE)" (ON:Iow
|eve|,OFF:high level) position, the system control
|C(|C7002) get the "CLMP" signal, and hand the laser
"LDON" signal to |C1101.

Then a laser diode can be lighted except when the level of
signal CLMP is low.

The interlock also does not function in the test mode*.
Laser diode oscillation will continue, if pin 9 of TA2150FN
(IC1 101) on the RF AMP is connected to GND, or pin 10 is
connected to low level (ON), or else the terminals of
01101 are shorted to each other (fault condition).

. When the cover is opened, close viewing of the objective

lens with the naked eye will cause exposure to a Class 1
laser beam.
