Pioneer vsxlx 70 schematic
This is the 96 pages manual for pioneer vsxlx 70 schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer vsxlx 70 schematic (Ocr-read)

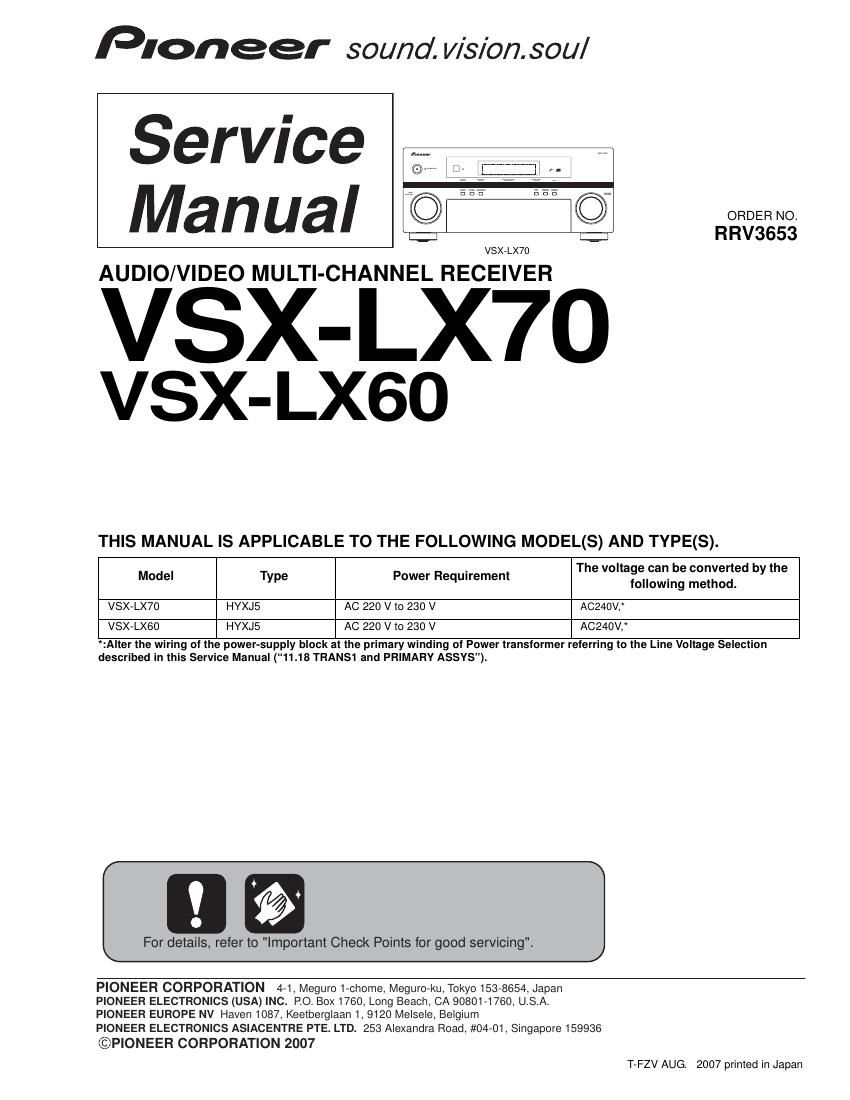

Page 1
Pioneer sound. vision. soul
Service
Manual
Q
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSXVLX7O
if?
Q ORDER NO.
g RRV3653
VSX- LX7O
VSX-LX60
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
. The voltage can be converted by the
Model Type Power Requnement following method.
vsx-Lx70 HYXJS AC 220 v to 230 v ACZ4OV,
vsx-Lxeo HYXJS AC 220 v to 230 v A0240V,*
:Alter the wiring of the power-supply block at the primary winding at Power transformer referring to the Line Voltage Selection
described in this Service Manual (11.18 TRANS1 and PRIMARY ASSVS").
I].
For details, refer to "Important Check Points for good servicing".
PIONEER CORPORATION 4-1. Meguro 1-ohome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX 1760: Long Beach, CA 90801-1780, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
@PIONEER CORPORATION 2007
T-FZV AUG. 2007 printed in Japan
