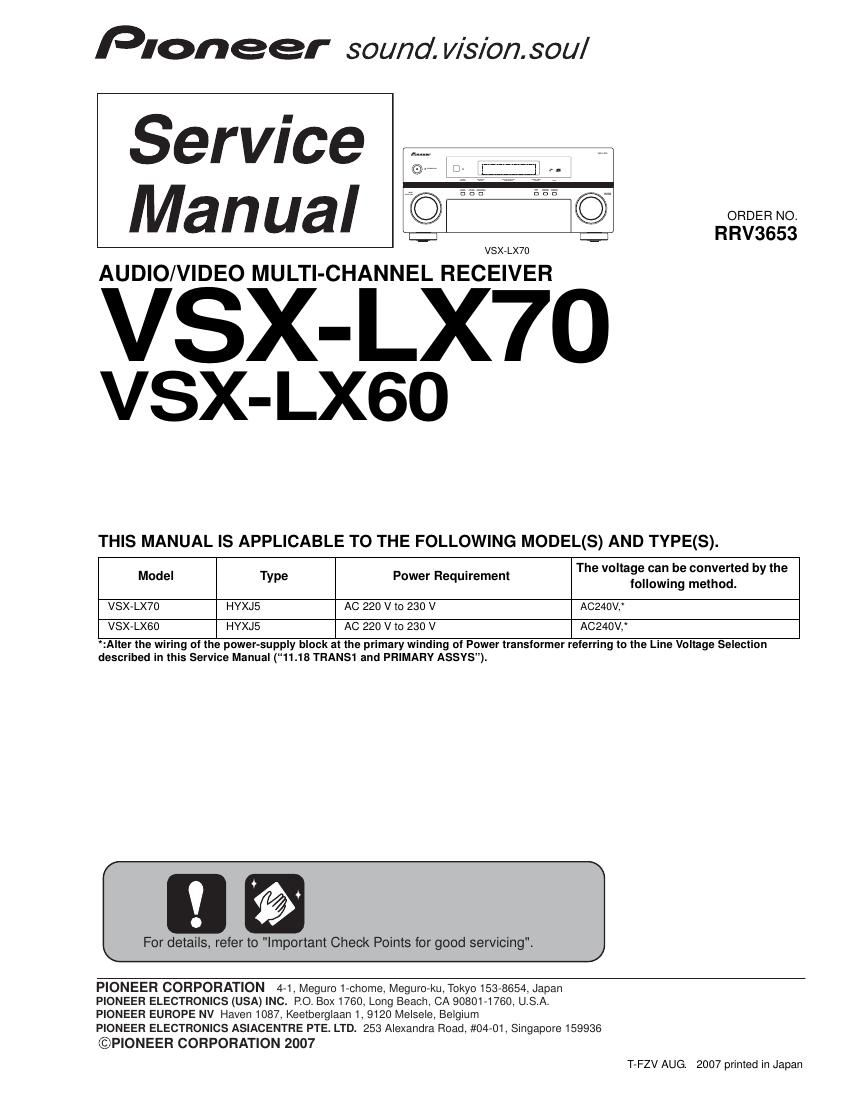

Page 1
Pioneer sound. vision. soul
Service
Manual
Q
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSXVLX7O
if?
Q ORDER NO.
g RRV3653
VSX- LX7O
VSX-LX60
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
. The voltage can be converted by the
Model Type Power Requnement following method.
vsx-Lx70 HYXJS AC 220 v to 230 v ACZ4OV,
vsx-Lxeo HYXJS AC 220 v to 230 v A0240V,*
:Alter the wiring of the power-supply block at the primary winding at Power transformer referring to the Line Voltage Selection
described in this Service Manual (11.18 TRANS1 and PRIMARY ASSVS").
I].
For details, refer to "Important Check Points for good servicing".
PIONEER CORPORATION 4-1. Meguro 1-ohome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX 1760: Long Beach, CA 90801-1780, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
@PIONEER CORPORATION 2007
T-FZV AUG. 2007 printed in Japan
