Pioneer vsxd 938 tx service manual

This is the 6 pages manual for pioneer vsxd 938 tx service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 6
pioneer vsxd 938 tx service manual

Extracted text from pioneer vsxd 938 tx service manual (Ocr-read)

Page 1

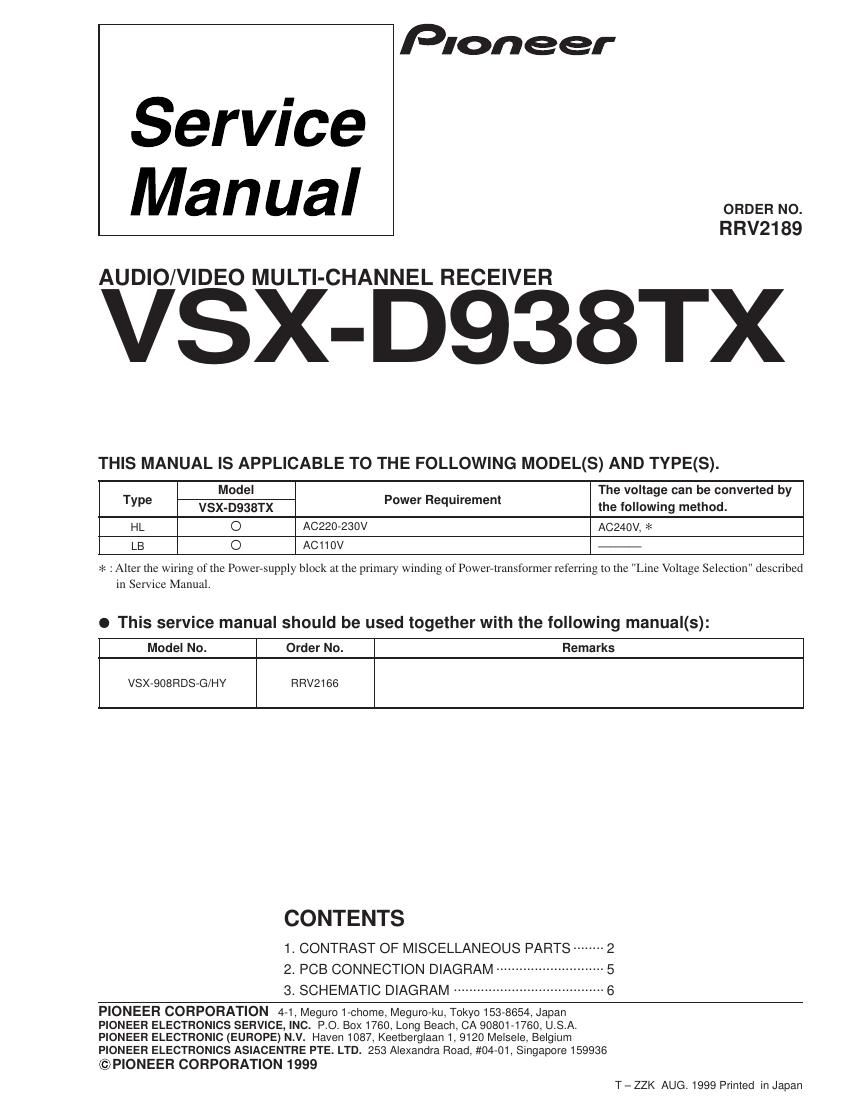

VSX-D938TX 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description VSX-908RDS-G VSX-D938TX VSX-D938TX Remarks /HY /HL /LB ASSEMBLIES NSP MAIN ASSY AWK7528 AWK7561 AWK7542 P5- 5 MAIN CONTROL ASSY AWX7410 AWX7465 AWX7428 NSP POWER/CURRENT ASSY AWK7510 AWK7510 AWK7548 P5- 7 DIODE ASSY AWX7469 AWX7469 AWX7343 P5- 8 SP/PS ASSY AWX7359 AWX7359 AWX7449 P7- 8 VL-TERMINAL ASSY AWX7511 AWX7511 AWX7324 NSP COMPLEX ASSY AWK7529 AWK7529 AWK7543 P5-10 TRANS 1 ASSY AWX7316 AWX7316 Not used P5-10 TRANS 1/LB ASSY Not used Not used AWX7447 P5-15 PRIMARY ASSY AWX7345 AWX7345 AWX7429 NSP FRONT/VAMP ASSY AWK7530 AWK7544 AWK7544 P8- 2 DISPLAY ASSY AWX7414 AWX7408 AWX7408 PACKING SECTION P3- 2 FM Wire Antenna ADH7010 ADH7010 ADH7011 P3- 3 Operating Instructions (English) ARB7187 ARE7213 ARE7213 P3- 9 Packing Case AHD7815 AHD7818 AHD7818 P3-12 NSP Warranty Card ARY7022 Not used Not used P3-14 Operating Instructions (German) ARC7244 Not used Not used P3-15 Operating Instructions (French) ARC7245 Not used Not used P3-16 Operating Instructions (Italian) ARC7246 Not used Not used P3-17 Operating Instructions (Dutch) ARC7270 Not used Not used P3-18 Operating Instructions (Swedish) ARC7280 Not used Not used P3-19 Operating Instructions (Spanish) ARC7281 Not used Not used P3-20 Operating Instructions (Portuguese) ARC7282 Not used Not used Operating Instructions (Chinese) Not used ARC7286 ARC7286 EXTERIOR SECTION P5-20 AC Power Cord ADG7029 VDG1063 ADG7023 P5-21Power Transformer (T1) ATS7253 ATS7253 Not used (AC220-230V/240V) P5-21 Power Transformer (T1) (AC110V) Not used Not used ATS7255 P5-22 FM/AM TUNER Unit AXX7048 AXX7048 AXX7047 P5-23 Fuse (FU1 : T4A) AEK-514 AEK-514 Not used P5-23 Fuse (FU1 : 10A) Not used Not used DEK1045 P5-26 AC Cord Spacer ANG1153 ANG7281 Not used P5-26 Cord Stopper Not used CM-22B CM-22C P5-27 Bonnet Case AZN7809 AZN7809 AZN7794 P5-54 Rear Panel ANC7866 ANC7816 ANC7817 VSX-D938TX/HL, LB and VSX-908RDS-G/HY are constructed the same except for the following :
