Extracted text from pioneer vsxd 711 service manual 2 (Ocr-read)

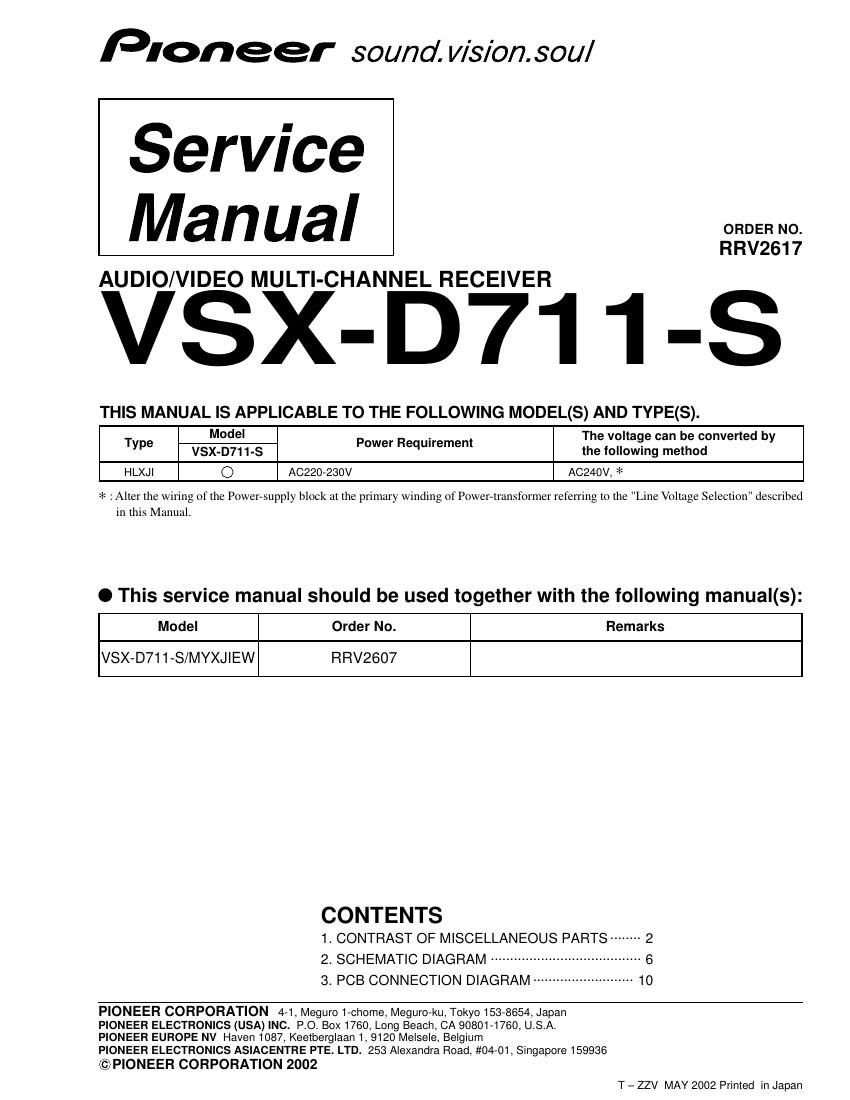

Page 1
2 VSX-D711-S 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE VSX-D711-S/HLXJI and /MYXJIEW types are constructed the same except for the following: NSP AMP & PS ASSY XWK3057 XWK3068 P9-7 BOARD TO BOARD ASSY XWZ3575 XWZ3528 NSP COMPLEX ASSY XWK3043 XWK3045 P9-15 VIDEO ASSY XWZ3584 XWZ3583 P11-1 FRONT ASSY XWZ3498 XWZ3500 COMPONENT ASSY Not used XWZ3524 No.1 P9-18 FM/AM TUNER MODULE AXQ7232 XXQ3003 P7-2 NSP Warranty Card ARY7022 Not used P7-5 Operating Instructions(English/German) XRE3059 Not used P7-6 Operating Instructions(French/Italian) XRC3060 Not used P7-6 Operating Instructions Not used XRE3055 (English/Spanish/Chinese) P7-7 Operating Instructions(Dutch/Spanish) XRC3071 Not used P7-8 Remote Control XXD3042 XXD3041 J-Shape Plug Not used AKX7008 Accessory P7-14 Packing Case 711S XHD3294 XHD3215 5P F-F-C/30V Not used XDD3104 No.2 P9-38 Insulator (for Rear side) PNW2766 AMR7198* 1 (COMPONENT CN5501– P9-40 Rear Panel 711 XNC3144 XNC3149 BOARD TO BOARD CN392) P9-41 Bonnet D510S XZN3122 XZN3123 P9-59 Tuner Sheet MY XEC3031 Not used * 1 Front side is PNW2766. P9-60 NSP N Label 711S/MY XAL3112 Not used NSP SISIR Label D711 Not used XAX3304 P11-18 D Panel R5 XAK3320 XAK3274 P11-19 BN Cover 711S XAK3284 XAK3285 Ref. No.Remarks VSX-D711-S VSX-D711-S /MYXJIEW /HLXJIPart No. Mark Symbol and Description PCB ASSEMBLIES PACKING SECTION EXTERIOR SECTION FRONT PANEL SECTION Notes:÷ The numbers in the remarks column correspond to the numbers on "EXPLOEDED VIEWS". ÷ For ASSEMBLIES, refer to CONTRAST OF PCB ASSEMBLIES,PCB PARTS LIST and 2. SCHEMATIC DIAGRAM and "3. PCB CONNECTION DIAGRAM". jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω→56 × 10 1 →561 ........................................................ RD1/4PU 5 6 1 J 47k Ω→47 × 10 3 →473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω→R50 ..................................................................................... RN2H R 5 0 K 1 Ω→1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω→562 × 10 1→5621 ...................................................... RN1/4PC 5 6 2 1 F
Page 2
3 VSX-D711-S EXPLODED VIEWS Rear PanelBBZ30P080FMC W No.2 (5P FFC) No.1(COMPONENT ASSY) ÷ EXTERIOR SECTION
