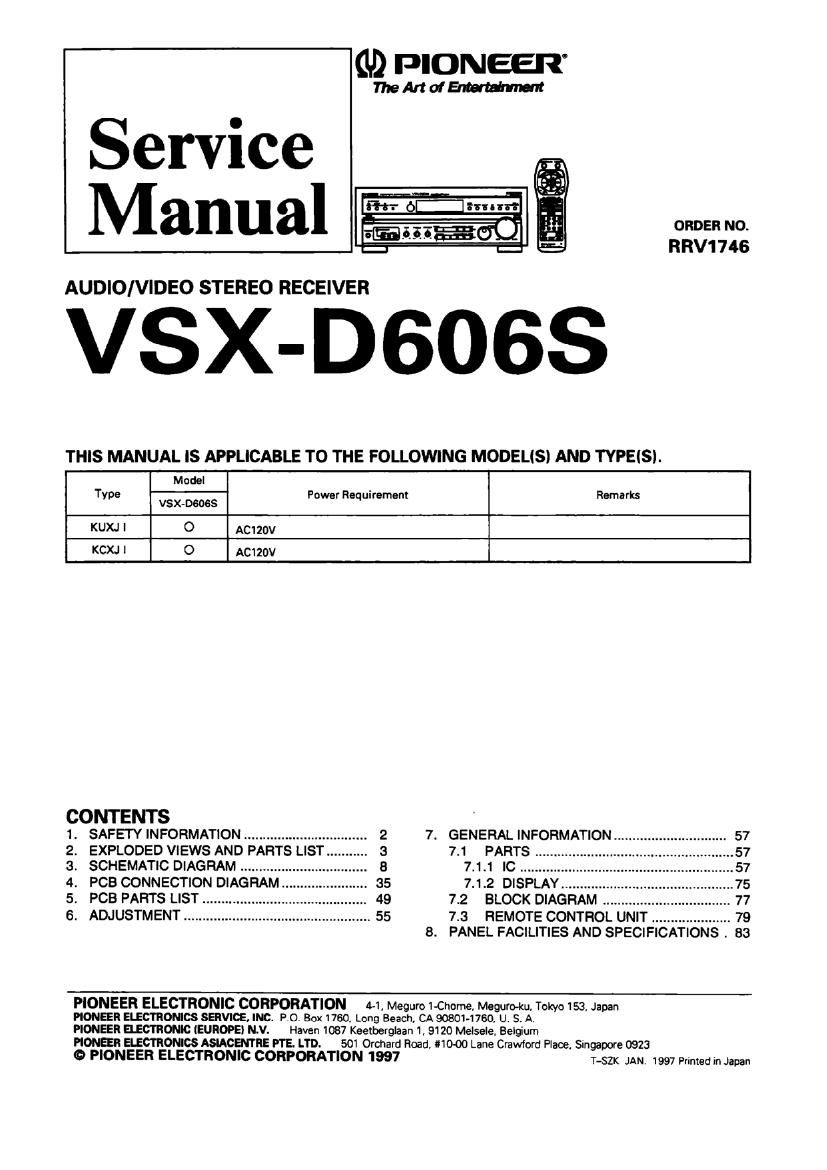

Page 1

Service
Manual

AUDIO/VIDEO STEREO RECEIVER

SX-DBOBS

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELISI AND TYPEISI.

Model

Type Power Requirement Remarks
VSX-DSOSS

ORDER NO.
RRV1746

KUXJ I 0 AC120V
KCXJ I O AC120V

CONTENTS

1. SAFETY INFORMATION ......................... 2 7. GENERAL |NFORMATION...... 57
2. EXPLODED VIEWS AND PARTS LIST . 3 7.1 PARTS ..... .57
3. SCHEMATIC DIAGRAM ............... . 8 7.1.1 IC ..... 57
4. PCB CONNECTION DIAGRAM. . 35 7.1.2 DISPLAY..... ..... 75
5. PCB PARTS LIST 7.2 BLOCK DIAGRA ..... 77
6. ADJUSTMENT ......... 7.3 REMOTE CONTROL UNIT .. 79

a. PANEL FACILITIES AND SPECIFICATIONS. as

PIONEER ELECTRONIC CORPORATION 4-1, Meouro1-Chume. Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVIE. Im. PO. Box 1760, Long Beach, CA 308014760, U. S. A.

PIONEER EECTRONIC (EUROPE) N.V. Haven 1087 Keelberglaan 1. 9120 MeIsele. Belgium

HOMER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, 010-00 Lane CraMord Place. Singapore 0923

O PIONEER ELECTRONIC CORPORATION 1997 1.5m JAN 1997 puma in Japan

Page 2

VSX-DBOSS

1. SAFETY INFORMATION

This service manual ls intended for qualified service techniclens; It Is not meant for the casual
do-lt-yourselfer. Qualified technicians have the necessary test equipment and tools. and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely. you

should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency ea a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health 5 Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead In solder. avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols E- (fast operating fuse) and/or E (slow operating loss) on PCB indicate that replacement

parts must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible {EB (fusible de type rapide) et/ou E (fusible de type lent) sur CCI indlquent que
les pieces de remplacement doivent avoir la meme designation.

- (FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe. conduit. etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals.
screwheads, metal overlays. control shalt. etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA,

. Reading should

not be above
LI" ' 0.5 mA
current
Device te er
under
'.5! W -
Test all exposed
metal unnece-
0 Al t II with in
in "53.34 ' '
(Using AC adapter
@ plug a- wired)
1 Earth ground
AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage. wattage , etc. Replacement pans which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the pans list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one. shown in
the pans list in this Service Manual. may create shock.
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to. or ad-
ditional copies of. PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
