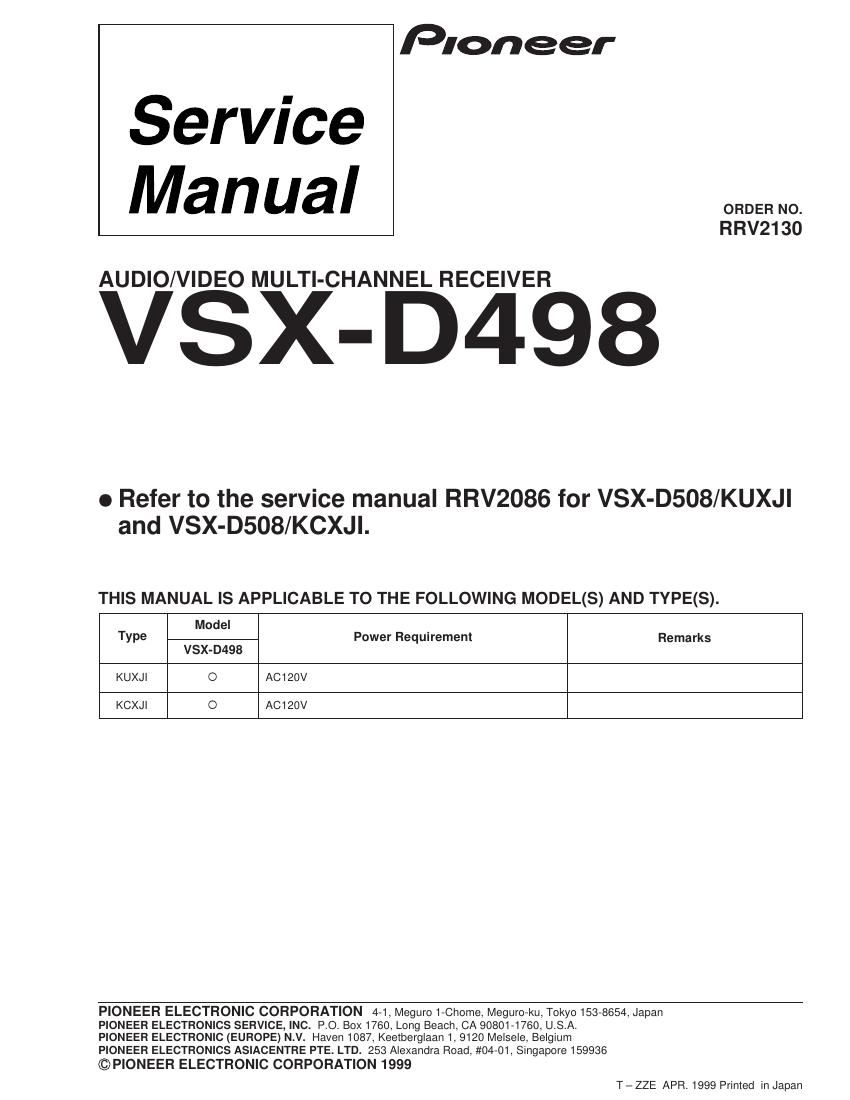

Pioneer vsxd 498 service manual

Page 1

VSX-D498 2 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. PACKING P3 - 2 NSP Dry Cell Battery (LR6, AA) VEM1012 Not used P3 - 2 NSP Dry Cell Battery (R6P, AA) Not used VEM-013 P3 - 3 Operating Instructions (English) ARB7157 ARB7192 P3 - 4 Sub Instruction Manual(System Set up) ARH7039 Not used P3 - 8 Remote Control Unit (CU-VSX138) AXD7178 Not used P3 - 8 Remote Control Unit (CU-VSX157) Not used AXD7226 P3 -13 Packing Case AHD7643 AHD7758 Battery Cover Not used RZN1156 for Remote Control Unit (CU-VSX157) EXTERIOR SECTION P5 -31 Rear Panel ANC7700 ANC7837 P5 -47 Front Panel AMB7525 AMB7634 Ref. No.Remarks VSX-D508/KUXJI VSX-D498/KUXJIPart No. Mark Symbol and Description 7 CONTRAST TABLE for VSX-D498/KUXJI VSX-D498/KUXJI and VSX-D508/KUXJI are constructed the same except for the following: PACKING P3 - 2 NSP Dry Cell Battery (LR6, AA) VEM1012 Not used P3 - 2 NSP Dry Cell Battery (R6P, AA) Not used VEM-013 P3 - 3 Operating Instructions (English/French) ARE7179 ARE7223 P3 - 4 Sub Instruction Manual(System Set up) ARH7039 Not used P3 - 8 Remote Control Unit (CU-VSX138) AXD7178 Not used P3 - 8 Remote Control Unit (CU-VSX157) Not used AXD7226 P3 -13 Packing Case AHD7643 AHD7758 Battery Cover Not used RZN1156 for Remote Control Unit (CU-VSX157) EXTERIOR SECTION P5 -31 Rear Panel ANC7751 ANC7852 P5 -47 Front Panel AMB7525 AMB7634 Ref. No.Remarks VSX-D508/KCXJI VSX-D498/KCXJIPart No. Mark Symbol and Description 7 CONTRAST TABLE for VSX-D498/KCXJI VSX-D498/KCXJI and VSX-D508/KCXJI are constructed the same except for the following:
