Pioneer vsxd 488 service manual
This is the 6 pages manual for pioneer vsxd 488 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer vsxd 488 service manual (Ocr-read)
Page 1

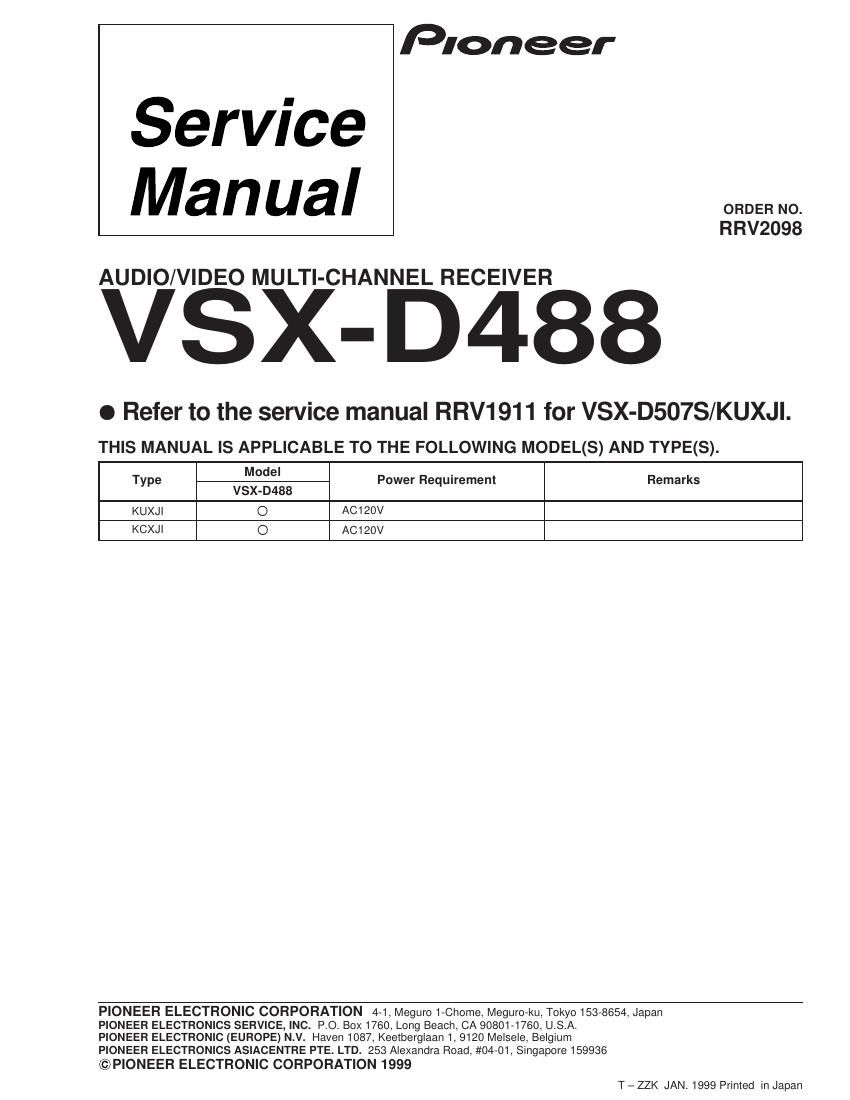

VSX-D488 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE VSX-D488/KUXJI and VSX-D507S/KUXJI are constructed the same except for the following : PACKING P3- 3 Operating Instructions (English) ARB7134 ARB7179 P3- 4 NSP Warranty Card ARY1051 ARY7023 P3- 5 Remote Control Unit (CU-VSX127) AXD7158 Not used P3- 5 Remote Control Unit (CU-VSX154) Not used AXD7211 *1 P3-11 Packing Case AHD7554 AHD7731 P3-13 Sub Instructions (English) ARH7033 Not used EXTERIOR SECTION P5-14 AC Power Cord PDG1063 PDG1064 P5-19 Rear Panel ANC7624 ANC7797 FRONT PANEL SECTION P6-17 Front Panel AMB7486 AMB7607 P6-19 PIONEER Badge PAM1755 PAM1776 Part No. VSX-D507S /KUXJI Ref. No. Symbol and Description Remarks MarkVSX-D488 /KUXJI VSX-D488/KCXJI and VSX-D507S/KCXJI are constructed the same except for the following : PACKING P3- 3 Operating Instructions (English/French) ARE7165 ARE7203 P3- 4 NSP Warranty Card ARY1075 ARY7024 P3- 5 Remote Control Unit (CU-VSX127) AXD7158 Not used P3- 5 Remote Control Unit (CU-VSX154) Not used AXD7211 *1 P3-11 Packing Case AHD7601 AHD7731 P3-13 Sub Instructions (English) ARH7033 Not used EXTERIOR SECTION P5-14 AC Power Cord PDG1063 PDG1064 P5-19 Rear Panel ANC7670 ANC7798 FRONT PANEL SECTION P6-17 Front Panel AMB7486 AMB7607 P6-19 PIONEER Badge PAM1755 PAM1776 Part No. VSX-D507S /KCXJI Ref. No. Symbol and Description Remarks MarkVSX-D488 /KCXJI *1 : refer to Ò2. REMOTE CONTROL UNIT [CU-VSX154 (AXD7211)]Ó. *1 : refer to Ò2. REMOTE CONTROL UNIT [CU-VSX154 (AXD7211)]Ó.
Page 2
VSX-D488 3 2. REMOTE CONTROL UNIT [CU-VSX154 (AXD7211)] 2.1 EXPLODED VIEWS AND PARTS LIST · Parts List Mark No. Description Part No. 1 Filter AZA7152 2 Name Plate AZA7323 3 Rubber Sheet (A) AZA7324 4 Rubber Sheet (B) AZA7322 5 Spring (+) AZB7049 6 Spring (Ð) AZB7050 7 Spring AZB7051 8 Screw AZB7052 9 Remo-con Case (A) AZN7766 10 Remo-con Case (B) AZN7326 11 Battery Cover AZN7327 12 Main Key (FF) AZN7666 13 Main Key (STOP) AZN7767 14 Main Key (REV) AZN7665 15 Main Key (PAUSE) AZN7768 16 Main Key (PLAY) AZN7765 NSP 17 PCB AZW7248 2 9 13 12 16 15 14 3 17 1 10 8 117 65 4 NOTES: · Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly.
