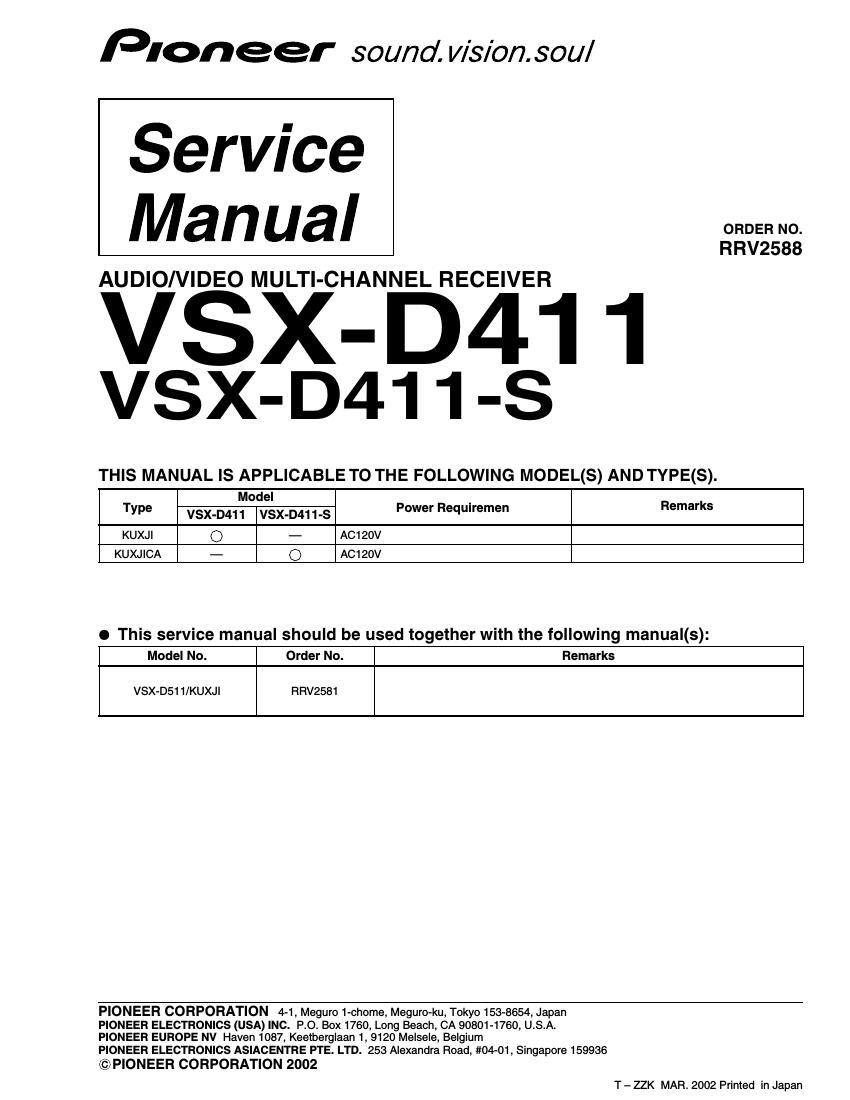

Pioneer vsxd 411 service manual

Page 1

VSX-D411, VSX-D411-S 2 jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Part No. Ref. No. Mark Symbol and Description VSX-D511 VSX-D411 VSX-D411-S Remarks /KUXJI /KUXJI /KUXJICA PCB ASSEMBLIES NSP AMP&PS ASSY XWK3052 XWK3071 XWK3071 P9 - 7 BOARD TO BOARD ASSY XWZ3527 Not used Not used NSP COMPLEX ASSY XWK3037 XWK3070 XWK3070 P9 - 10 S. VIDEO ASSY XWZ3521 Not used Not used P11 - 1 FRONT ASSY XWZ3492 XWZ3587 XWZ3587 PACKING SECTION P7 - 13 Packing Case XHD3200 XHD3209 XHD3219 EXTERIOR SECTION P9 - 36 Rubber sheet AEB1111 AEB1111 Not used P9 - 40 Rear Panel XNC3139 XNC3164 XNC3164 P9 - 41 Bonnet XZN3112 XZN3112 XZN3123 Insulator Not used Not used PNW2766 No. 1 Screw FBT40P080FZK FBT40P080FZK FBT40P080FNI No. 2 NSP N Label 411/KU Not used XAL3110 Not used*1 FRONT PANEL SECTION P11 - 6 Front Panel XMB3060 XMB3061 XMB3086 P11 - 7 Sub Button XAD3125 XAD3125 XAD3133 P11 - 9 Pioneer Badge XAM3006 XAM3006 VAM1129 P11 - 11 Select Knob XAB3023 XAB3023 XAB3024 P11 - 12 Volume Knob XAB3025 XAB3025 XAB3026 P11 - 13 Power Button XAD3123 XAD3123 XAD3129 P11 - 14 Sub Panel R5B XAK3272 XAK3338 XAK3339 P11 - 15 Jog Button XAD3124 XAD3124 XAD3131 P11 - 18 D Panel R5 W XAK3274 XAK3342 XAK3342 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE VSX-D411/KUXJI, VSX-D411-S/KUXJICA and VSX-D511/KUXJI are constructed the same except for the following : Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 Notes : For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES and 2. SCHEMATIC DIAGRAM. The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS . *1 Stick N Label on the Rear Panel.
