Pioneer vsxd 308 ht service manual
This is the 2 pages manual for pioneer vsxd 308 ht service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer vsxd 308 ht service manual (Ocr-read)
Page 1

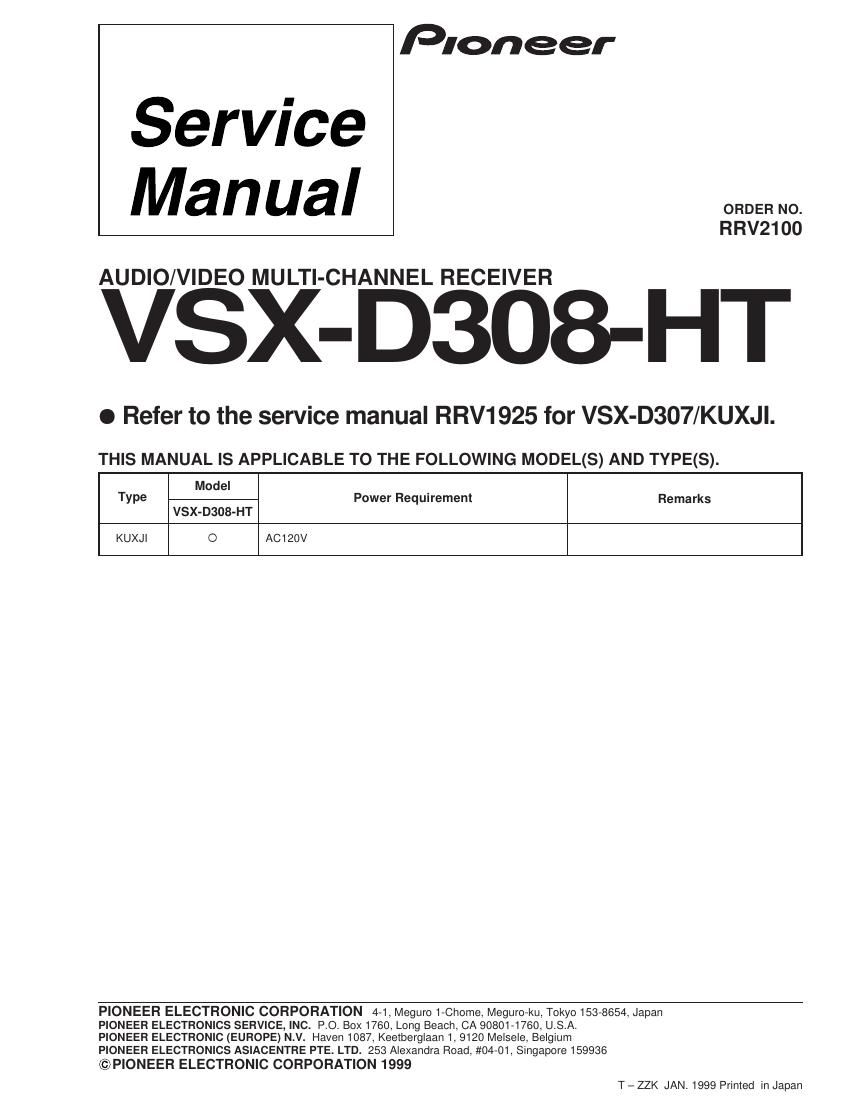

VSX-D308-HT 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE VSX-D308-HT/KUXJI and VSX-D307/KUXJI are constructed the same except for the following : PACKING P3- 3 Operating Instructions (English) ARB7136 ARB7177 P3- 4 NSP Warranty Card ARY1051 ARY7023 P3- 5 Remote Control Unit (CU-VSX124) AXD7161 Not used P3- 5 Remote Control Unit (CU-VSX137) Not used AXD7209 P3- 6 Battery Cover RZN1156 AZN7764 P3- 7 NSP Dry Cell Battery (R6P,AA) VEM-013 Not used P3- 7 NSP Dry Cell Battery (LR03,AAA) Not used VEM1016 P3-11 Packing Case AHD7557 AHD7729 EXTERIOR SECTION P5-13 AC Power Cord PDG1063 PDG1064 P5-17 Rear Panel ANC7627 ANC7794 FRONT PANEL SECTION P6- 7 PIONEER Badge PAM1755 PAM1776 P6-11 Front Panel AMB7494 AMB7600 Part No. VSX-D307 /KUXJI Ref. No. Symbol and Description Remarks MarkVSX-D308-HT /KUXJI
