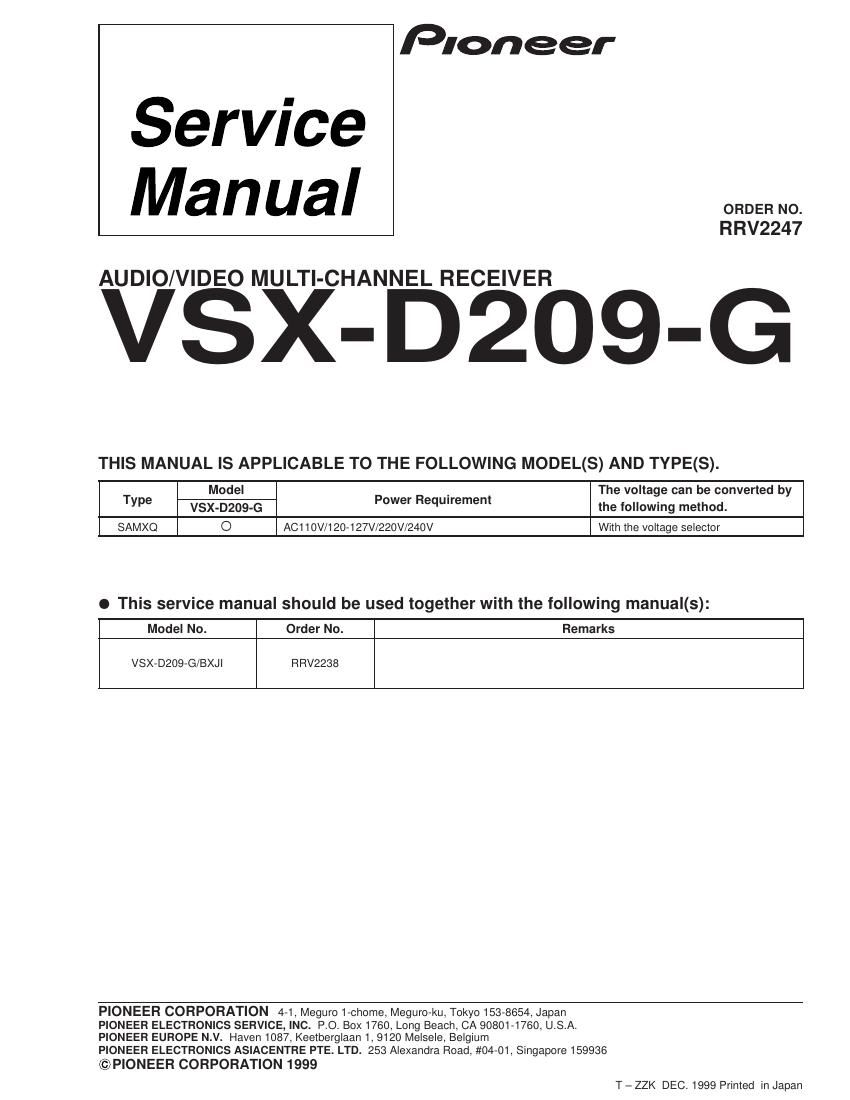

Pioneer vsxd 209 service manual

Page 1

VSX-D209-G 2 Part No. Ref. No. Mark Symbol and Description VSX-D209-G VSX-D209-G Remarks /BXJI /SAMXQ PACKING SECTION P3- 3 Polyethylene Bag Z21-038 VHL1051 P3- 7 NSP Dry Cell Battery (R6P, AA) VEM-013 VEM1010 P3-10 Packing Sheet AHG7069 AHG7010 P3-11Packing Case AHD7821 AHD7850 P3-12 Operating Instructions (English/Chinese) ARE7246 ARE7253 P3-13 Operating Instructions (Spanish) ARC7278 Not used P3-14 AC Plug AdapterAKX7011Not used P3-15 Caution 220V Label ARR1003 Not used NSP Caution Card Not used XAX3130 NSP Warranty Card Not used ARY7028 EXTERIOR SECTION P5-19 AC Power Cord VDG1080 ADG7025 P5-24 Rear Panel ANC7883 ANC7906 Label (Rear) Not used VRW1739 VSX-D209-G/SAMXQ and BXJI are constructed the same except for the following : 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE
