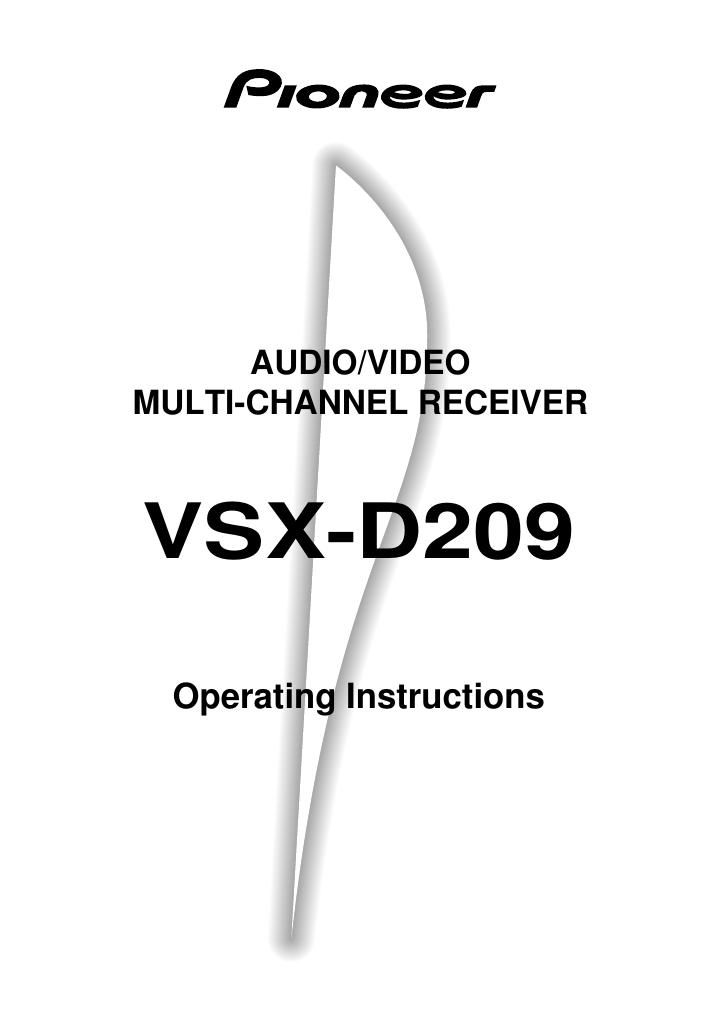

Pioneer vsxd 209 owners manual
This is the 32 pages manual for pioneer vsxd 209 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer vsxd 209 owners manual (Ocr-read)
Page 1
2 Congratulations on buying this fine Pioneer prod- uct. Please read through these operating instructions so you will know how to operate your model prop- erly. After you have finished reading the instruc- tions, put them away in a safe place for future ref- erence. WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. IMPORTANT The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Ð Reorient or relocate the receiving antenna. Ð Increase the separation between the equipment and receiver. Ð Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Ð Consult the dealer or an experienced radio/TV technician for help. Information to User Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. MAINTENANCE OF EXTERNAL SURFACES¦Use a polishing cloth or dry cloth to wipe off dust and dirt. ¦When the surfaces are very dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furni- ture wax or cleaners. ¦Never use thinners, benzene, insecticide sprays or other chemicals on or near this unit, since these will corrode surfaces. POWER-CORD CAUTIONHandle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER au- thorized service center or your dealer for a replace- ment. IMPORTANT NOTICE The serial number for this equipment is located on the rear panel. Please write this serial number on your enclosed warranty card and keep it in a secure area. This is for your security.
Page 2
3 Set upOperation READ INSTRUCTIONS Ñ All the safety and operating instructions should be read before the product is operated. RETAIN INSTRUCTIONS Ñ The safety and operating instructions should be retained for future reference. HEED WARNINGS Ñ All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS Ñ All operating and use instructions should be followed. CLEANING Ñ Unplug this product from the wall outlet before cleaning. The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet. ATTACHMENTS Ñ Do not use attachments not recommended by the product manufacturer as they may cause hazards. WATER AND MOISTURE Ñ Do not use this product near water Ñ for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. ACCESSORIES Ñ Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturerÕs instructions, and should use a mounting accessory recommended by the manufacturer. CART Ñ A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. VENTILATION Ñ Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturerÕs instructions have been adhered to. POWER SOURCES Ñ This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. LOCATION Ð The appliance should be installed in a stable location. NONUSE PERIODS Ð The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.GROUNDING OR POLARIZATION ¥ If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. ¥ If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug. POWER-CORD PROTECTION Ñ Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. OUTDOOR ANTENNA GROUNDING Ñ If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. LIGHTNING Ñ For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. POWER LINES Ñ An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. OVERLOADING Ñ Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.OBJECT AND LIQUID ENTRY Ñ Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. SERVICING Ñ Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. DAMAGE REQUIRING SERVICE Ñ Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: ¥ When the power-supply cord or plug is damaged. ¥ If liquid has been spilled, or objects have fallen into the product. ¥ If the product has been exposed to rain or water. ¥ If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. ¥ If the product has been dropped or damaged in any way. ¥ When the product exhibits a distinct change in performance Ñ this indicates a need for service. REPLACEMENT PARTS Ñ When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. SAFETY CHECK Ñ Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. WALL OR CEILING MOUNTING Ñ The product should not be mounted to a wall or ceiling. HEAT Ñ The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. IMPORTANT SAFETY INSTRUCTIONS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)GROUND CLAMPSGROUNDING CONDUCTORS (NEC SECTION 810-21) ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUND CLAMP Fig. A NEC Ñ NATIONAL ELECTRICAL CODEANTENNA LEAD IN WIRE ELECTRIC SERVICE EQUIPMENT
