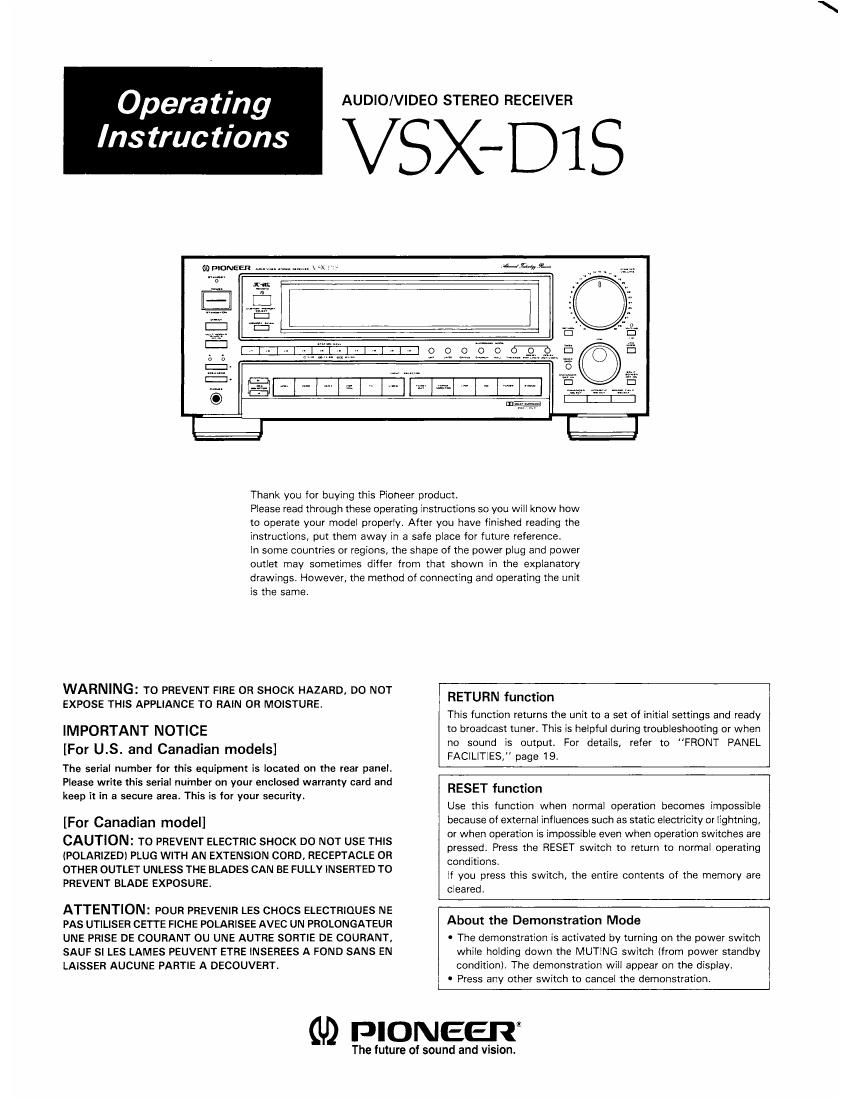

Page 1

Opera ting

Instructions

AUDIONIDEO STEREO RECEIVER

V5 4.315

@I~I«I-~I=I~I~:ii

Thank you for buying this Pioneer product

Please read through these operating instructions so you will know how
to operate your model properly. After you have finished reading the
instructions, put them away in a safe place for future reference.

in some countries or regions, the shape of the power plug and power
outlet may sometimes differ from that shown in the explanatory
drawings. However, the method of connecting and operating the unit

is the same.

WARNING: To PREVENT FIRE OR SHOCK HAZARD, DO NOT
expose THIS APPLIANCE To RAIN OR MOISTURE.

IMPORTANT NOTICE
[For U.S. and Canadian models]

The serial number for this equipment is located on the rear panel.
Please write this serial number on your enclosed warranty card and
keep it in a secure area This is for your security.

[For Canadian model]

CAUTION: To PREVENT ELECTRIC SHOCK DO NOT use THIs
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLess THE BLADES CAN BE FULLY INSERTED To
PREVENT BLADE EXPOSURE.

ATTENTION: POUR PREVENIR LES CHOCS ELECTRIQUES Ne
PAS UTILISER CETTE FICHE POLARISEE Avec UN PROLONGATEUR
UNE PRISE DE COURANT ou UNe AUTRE SORTIE DE COURANT.
SAUF SI LES LAMES PEUVENT ETRE lNSEREES A FOND SANS EN
LAlSSER AUCUNE PARTIE A DECOUVERT.

RETURN function

This function returns the unit to a set of initial settings and ready
to broadcast tuner. This is helpful during troubleshooting or when
no sound is output. For details, reier to FRONT PANEL
FACILITlES, page 19.

RESET function

Use this function when normal operation becomes impossible
because of external influences such as static electricity or lightning,
or when operation is impossible even when operation switches are
pressed. Press the RESET switch to return to normal operating
conditions.

if you press this switch, the entire contents of the memory are
cleared.

About the Demonstration Mode

- The demonstration is activated by turning on the power switch
while holding down the MUTENG switch (from power standby
condition). The demonstration will appear on the display,

' Press any other switch to cancel the demonstration.

GD PIONEER

The future of sound and vision.

Page 2

IMPORTANT

The lightning ilash with arrowhead, within an equilateral
triangle. is intended to alert the user ol the presence at
uninsuIated "dangerous voltage wllhln the product's
enclosure lhal may be at suilicient magnitude to constitute
a risk ol electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCKI DO
NOT REMOVE COVER IOR BACK). N0 USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The exclamation point Within an equlaleral Triangle is
intended to alert the user of the pr sence oi important
operating and maintenance lserv ngi instructions in
the literature accompanying the appliance,

SAFETY INSTRUCTIONS

READ INSTRUCTIONS - All the salety and operating
instructions should be read helore the appliance is
operated

RETAIN INSTRUCTIONS - The operating instrucions
should be retained lor luiure relerence,

HEEDWARNING7AIlwarniiigsontheapplianceand in
the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS 7 All operating and use in7
structions should be Iollowed.

WATER AND MOISTURE 7 The appliance should not
be used near water 7 lot example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet base
rnent, or near a swimming poolu elc.

LOCATION 7 The appliance should be installed in a
staple location

WALL 0R CEILING MOUNTING 7 The appliance
should not be moiinied to a wall or ceiling

VENTILATION 7 The appliance should be situated so
that its location or position does not iriterlere with
its proper ventilation For example, the appliance
should not be situated on a bed, soia, 'ug, orsimilar
surrace that may biockthe ventilation openings. or,
placed in a built-' nstallaiiori, such as a bookcase
or cabinel that may impede the Ilow bl air through
the ventilation openings

HEAT 7 The appliance should be situated away IIOm
heat sources such as radiators, heat registers,
stoves, or other appliances (including ampliliersl
that produce heat

POWER SOURCES 7 The appliance shoiild be con
riecied to a power supply only or the type de-
scribed in the operating instructions or as marked
on the appliance

POWER-CORD PROTECTION 7 Power supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against Therm paying particular attention to cords
at plugs, convenience receptacles, and the point
where they exit Irorn the appliance

POLAnleTION 7 ll your purchased product is pros
Video with a polarized power plug. please read the
Iollowing instructions This product is Equipped
wiihapolarued alternating currentline plug la plug
having one blade wider than the otherl This plug
will In into the power outlet only one way This is a
salety ieature. ll you are unable to insert the plug
ItiIIy inio the ontlet, try reversing the plug II the
plug should stilllailtorit,contactyourelectricianto
replace your Obsolele Dullel. DO TIDI defeaI the
saiety purpose oi the palarlzed plug,

CLEANING 7 The app nce should be cleaned only
with a polishing cloth or a salt dry cloth. Never
clean with Iurrlltuve wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet

POWER llNES - An outdoorantenna should helocaled
away lrom power lines.

NONUSE PERIODS 7 The power cord olthe appliance
should be unplugged irorn the outlet when leIt un~
used for a long period of time

OBJECT AND LlDUlD ENTRv - Care should be taken
so thalohlects do notiall and liquids are not spilled
lMD the enclosure INOUQII openings.

DAMAGE REQUIRING SERVICE 7 The appliance

should be serviced bya Pioneer authorized service

center or oualilied service personnel when:

The powerrsupplv cord or the plug has been darn-

aged. 0!

Objecls haue lallan, or liquid has been spilled into

the appliance; or

The appliance has been exposed to rain, or

The appliance does rIo| appear to operate normally

or exhlblls a marked change in performance, or

The appliance has been dropped; on the enclosure

damaged.

SERVICING - The user should not attempt to service
the appliance beyond thal described in the opera-
ting instructions. Forall otherseryieing,coniactthe
nearest Pioneer authorized service center.

ELECTRIC
SERVICE
EQUIPMENT

I
I

r

FIG A

OUTDOOR ANTENNA GROUNDING 7 If an outside an

ienria is connected tothe antenna terminal. be sure
the antenna system is grounded so as to proyide
some protection against voltage surges and built
up sIaIic charges.
In the u.s,A. section am ol the National Electrical
Code, ANSI/NFPA No. 70-1954, provides rniorrna-
tion with respect to proper grounding of the mast
and supporting structure, grounding ol the lead-n
wrreto an antenna discharge unit, size oigrounding
colIductDrs, location of antenna discharge unit,
connection to grounding electrodes. and require
ments lor the grounding electrode. See Fig, A.

CART 7 An appliance and cart combination should be
moved with care Ouick stops, excessivelorce, and
uneven surlaces may cause the appliance and cart
combination to overturn.

v

NEC 7 NATIONAL ELECTRIC CODE

ANTENNA
LEAD lN
WlRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION all) 20)

GROUNDING CONDUCTORS
INEC SECTION Bio 7 2n

4" GROUND CLAMPS

POWER SERVICE GROUNDlNG
ELECTRODE SVSTEM

INEC ART 250. PART HI

Note to CATV system installer

This reminder is provided Io call the CATV system installer's attention to Article 820-40 Of the NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to the grounding system at the building, as close to the point of cable entry
as practical.

2
