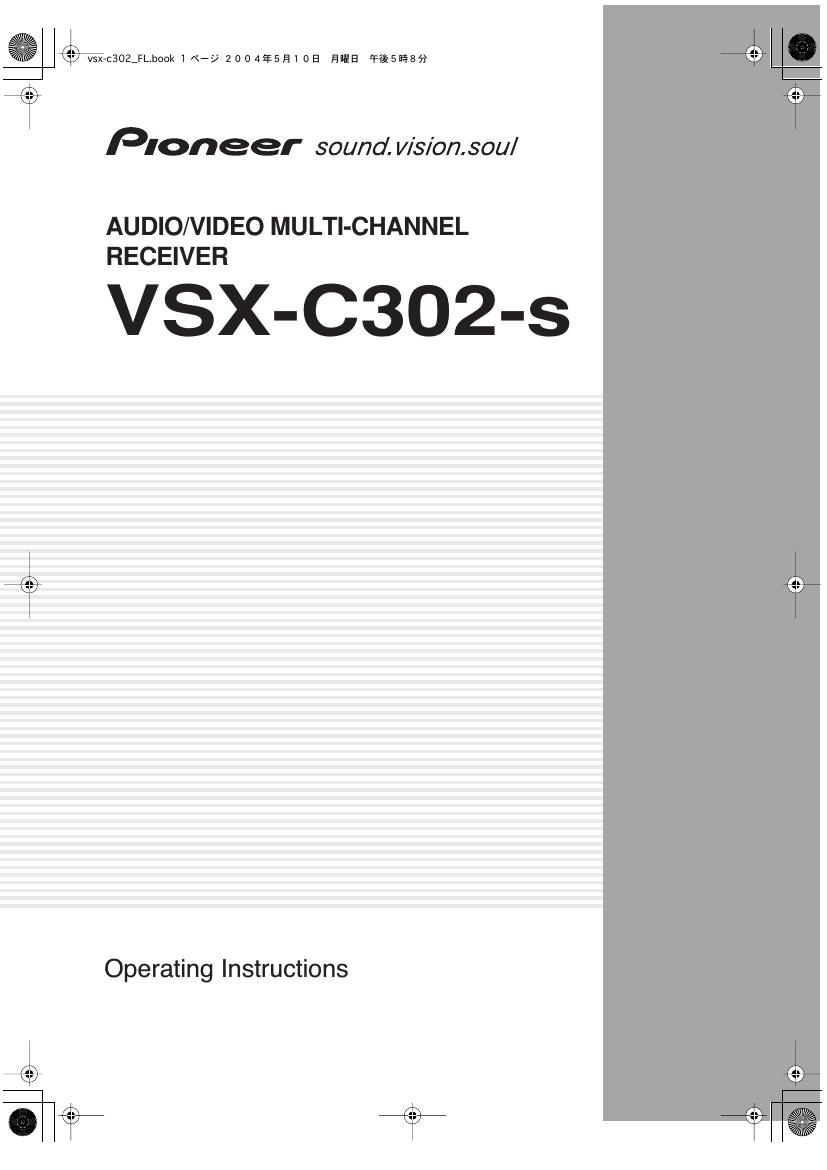

Pioneer vsxc 302 owners manual
This is the 43 pages manual for pioneer vsxc 302 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer vsxc 302 owners manual (Ocr-read)
Page 1
D3-4-2-1-1_En-A The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries or regions, the shape of the power plug may sometimes differ from that shown in the explanatory drawings. However, the method of con-necting and operating the unit is the same. NOTE: THE NO USER-SERVICEABLE PARTS COMPARTMENT WARNING IS LOCATED ON THE APPLIANCE BONNET Operating EnvironmentOperating environment temperature and humidity: +5 ºC – +35 ºC (+41 ºF – +95 ºF); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_En WARNING The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230V or 120V) written on the rear panel. D3-4-2-1-4_A_En Before plugging in for the first time, read the following section carefully. WARNINGTo prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En WARNINGThis equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A_En TWO VOLTAGE SELECTORS 110V 220 -230V 240V 110V120 -127V220 -230V 240V 120-127V Voltage selectorYou can find the voltage selector switch on the rear panel of multi-voltage models. The factory setting for the voltage selector is 220- 230V. Please set it to the correct voltage for your country or region. Saudi Arabia operates on 127V and 220V mains voltage. Please set to the correct voltage before using. For Taiwan, please set to 110V before using. Before changing the voltage, disconnect the AC power cord. Use a medium size screwdriver to change the voltage selector switch. Medium size screwdriver D3-4-2-1-5_En CAUTIONThe STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a_A_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_En VENTILATION CAUTIONWhen installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 20 cm at top, 50 cm at rear, and 10 cm at each side). WARNINGSlots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b_A_En If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a_A_En vsx-c302_FL.book 2 ページ ２００４年５月１０日 月曜日 午後５時８分
Page 2
Before you start 3 En English Before you start Checking the supplied accessories Please check that you've received the following supplied accessories: AM loop antenna FM wire antenna Power cable x2 Dry cell batteries (AA Size / IEC R6P) x2 Remote control unit Operating instructions Speaker cable labels Loading the batteries The remote control operates on two AA batteries (supplied). Caution Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions: Never use new and old batteries together. Insert the plus and minus sides of the batteries properly according to the marks in the battery case. Batteries of the same shape may have different voltages. Do not use different batteries together. When disposing of used batteries, please comply with governmental regulations or environmental public institutions rules that apply in your country or area. Ventilation When installing this unit, make sure to leave space around the unit for ventilation to improve heat dispersal (at least 20 cm at the top, 50 cm at the rear, and 10 cm at each side). If not enough space is provided between the unit and walls or other equipment, heat will build up inside, interfering with performance and/or causing malfunctions. See below for exceptions to this. Dont place anything on top of the receiver except for a Pioneer DV-466, 366, 266, 355, 373, 533-K, 575K, 676A DVD player. If you do place one of these pieces of equipment on top of the receiver be sure to leave the ventilation space over it as prescribed above. If using a rack to hold the receiver make sure the back of the rack and the left side are open. Also, if youre using a case with doors, leave the doors open when using the receiver. Do not place on a thick carpet, bed, sofa or fabric having a thick pile. Do not cover the receiver with fabric or other covering. Anything that blocks ventilation will cause the internal temperature to rise, which may lead to breakdown or fire hazard. The receiver may become hot while in use, please take care around it. Maintenance of external surfaces Use a polishing cloth or dry cloth to wipe off dust and dirt. When the surfaces are dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers. Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surfaces. 1 2 3 vsx-c302_FL.book 3 ページ ２００４年５月１０日 月曜日 午後５時８分
