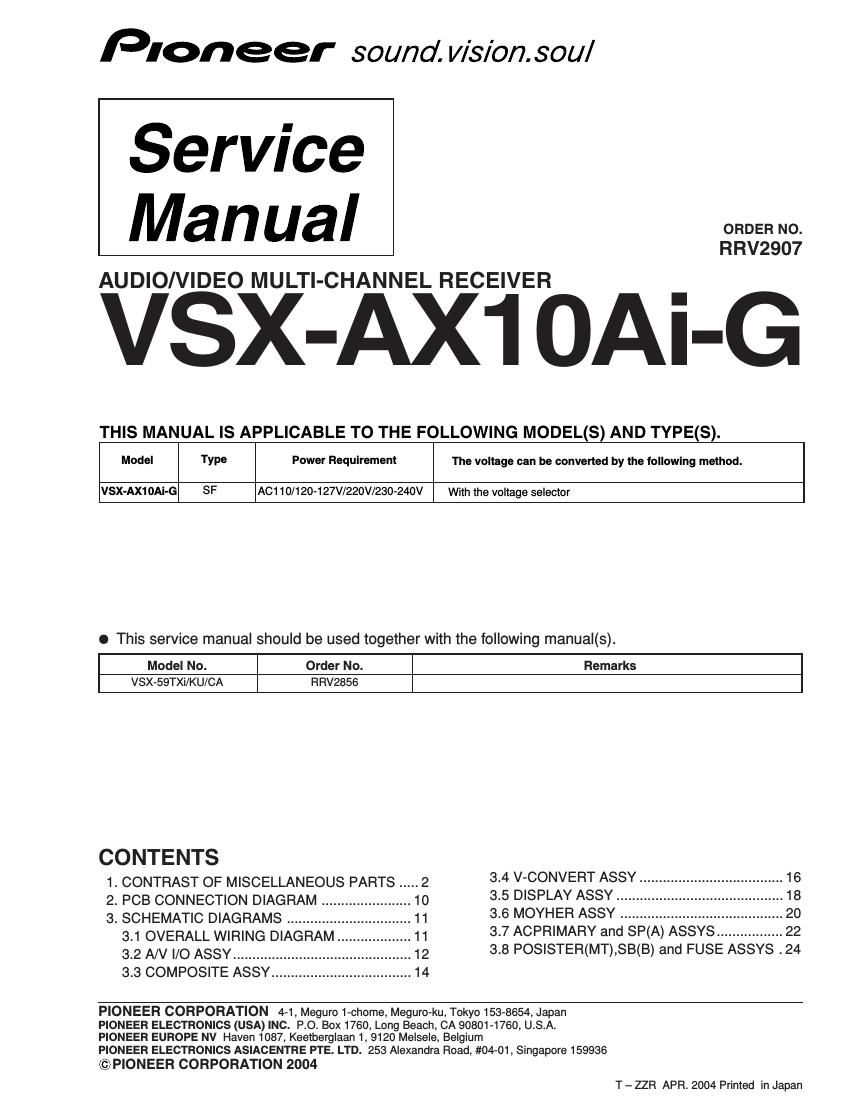

Page 1
Pioneer sound. vision. soul
Service
Manual
ORDER No.
RRV2907
AUDIO/VIDEO MULTl-CHANNEL RECEIVER I
VSX-AX1 OAI-G
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement
The voltage can be converted by the following method.
VSX-AX10Ai-G SF AC110/120-127V/220V/230-240V
With the voltage selector
O This service manual should be used together with the following manual(s).
Model No. Order No. Remarks
VSX-59TXi/KU/CA RRV2856
CONTENTS
1- CONTRAST 0': MISCELLANEOUS PARTS ..... 2 34 V'CONVERT ASSY ..................................... 16
2. PCB CONNECTION DIAGRAM 3-5 D'SFLAY ASSY ----- 13
3. SCHEMATIC DIAGRAMS ............. 3-6 MOYHER ASSY 20
3.2 A/V l/O ASSY .............
3.3 COMPOSITE ASSY...
3.8 POSISTER(MT),SB(B) and FUSE ASSYS .24
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
© PIONEER CORPORATION 2004
T-ZZR APR. 2004 Printed in Japan
Page 2
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES: 0 Parts marked by "NSP are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Screws adjacent to V mark on product are used for disassembly.
O For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
C When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
Ex.2 When there are 3 eflective di
and K=10%).
560 _ 56 X 101 _
47k - 47X 10 a
0.5 _ R50 --
1 * 1R0 --
5.6Zk * 562x10] -*
l CONTRAST OF TABLE
VSX-AX10Ai-G/SF and VSX-59TXi/KU/CA are constructed the same except for the following:
561
473
(such as in high prec ion metalfilm re»
5621 ----------------
Part No.
Ref. Mark Symbol and Description Remarks
No. VSX-59TXi VSX-AX10Ai-G
lKU/CA ISF
PCB ASSEMBLIES
NSP 1..VR & MOTHER ASSY AWM7833 AWM7835
P13- 1 2..MOTHER ASSY AWX8280 AWX8282
NSP 1..PS & SP ASSY AWK7769 AWK7770
P15- 2 2..SP (B) ASSY AWX8332 AWX8333
P15- 3 2..AC PRIMARY ASSY AWX8261 AWX8262
P15- 4 2..SP (A) ASSY AWX8330 AWX8331
P17- 6 2..POSISTER (L) ASSY AWX7844 AWX7845
P17- 7 2..POSISTER (R) ASSY AWX7846 AWX7847
2..VOLTAGE SEL ASSY Not used AWX7842 No. 1
P17-1 1 2..POSISTER(MT) ASSY AWX8270 AWX8061
P13- 2 2..DIODE ASSY AWX8412 AWX8482
NSP 1..VIDEO ASSY AWQ7020 AWQ7022
P15- 6 2..V-CONVERT ASSY AWX8160 AWX8162
P15- 7 2..COMPONENT ASSY AWX7953 AWX7955
P15- 9 2..COMPOSITE ASSY AWX7942 AWX7944
P15-10 2..A/V I/O ASSY AWX8271 AWX8272
NSP 1..A/D & CONTROL ASSY AWM7830 AWM7831
P15-12 2..ANALOG IN & A/D ASSY AWX8273 AWX8274
P19- 1 2..DISPLAY ASSY AWX8317 AWX8318
P15- 1 1..FM/AM TUNER Module AXX7114 AXX7115
(AXQ7237) (AXQ7238)
PACKING SECTION
Pg. 1 [A AC Power Cord ADG7061 ADG7062
o AC Power Cord Not used ADG7082 No.2
Pg. 3 Remote Control Unit AXD7377 AXD7380
Pg- 5 AC Adapter (Remote control) AXY7009 AXY7012
P9- 8 Operating Instructions (English) ARB7290 ARB7292
Operating |nstructions(0hinese) Not used ARC7504 No. 3
P9- 9 NSP Warranty Card ARY1026 Not used
P9-16 Packing Case AHD8237 AHD8240
Caution Card SB Not used ARM7064 No. 4
Caution 220V Label Not used ARR7019 No. 5
A AC Plug Adapter Not used AKX7D11 Accessories
Caution Card SD SB Not used ARM7063 No. 6
NTSC Attention SB Not used ARM7066 No. 7
Software (DVD, NTSC) Not used AWX8035 No. 8
Air Cap Bag Not used AHG7103 No. 9
Assist Operating |nstructions(CAL.)E Not used ARH7060 No.10
Assist Operating |nstructions(CAL.)CH Not used ARH7064 No.11
2 VSX-AX10Ai-G
1 I 2 I 3 I 4
