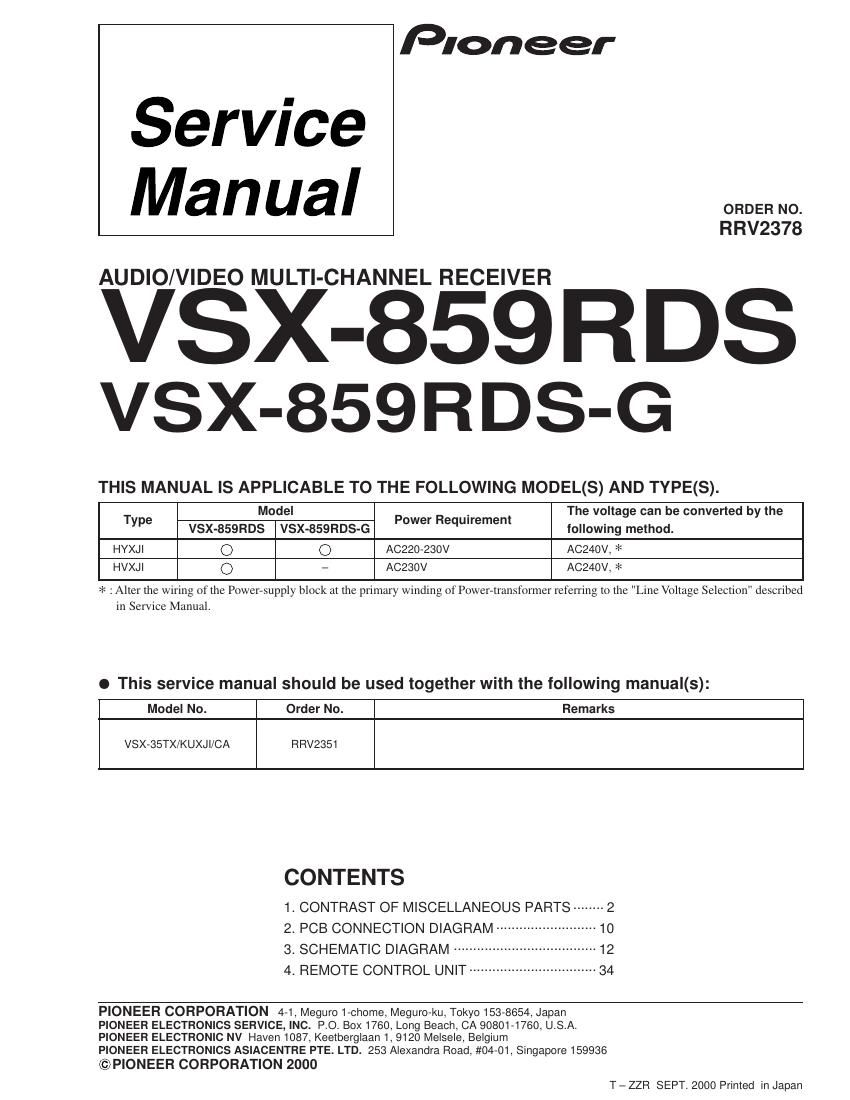

Page 1

Pioneer

Service
Manual

RRV2378

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

VSX-859RDS
VSX-859RDS-G

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement The voltage can be converted by the
VSX-859RDS VSX-859RDS-G following method.
HYXJI Q Q A0220-23ov AC240V, *
HVXJI Q - Aczaov A024ov, *

* :Aller the wiring of the Poweresupply block at the primary winding of Powerelransformer referring to Lhe "Line Voltage Selection described
in Service Manual.

0 This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
VSX-35TX/KUXJI/CA RRV2351
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2. PCB CONNECTION DIAGRAM -- 10
3. SCHEMATIC DIAGRAM -- 12
4. REMOTE CONTROL UNIT-- -- 34

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2000
T - ZZR SEPT. 2000 Printed in Japan

Page 2

VSX-859RDS, VSX-859RDS-G

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: 0 Parts marked by NSF are generally unavailable because they are not in our Master Spare Parts List.
I The &( mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.

I Screws adjacent to V mark on product are used for disassembly.

.Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex] When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

EX.2 When there are 3 efiective digits (such as in high precision metalfilm resistors).
-- ----- RN1/4PC- IF

and K=10%).

560 A 56 X 10 a
47k * 47X 10' --
0.5 A R50 --

1 a 1R0

5.62k a 562x10I »

l CONTRAST TABLE
VSX-35TX/KUXJI/CA, VSX-859RDS/HYXJI, VSX-859RDS/HVXJI and VSX-859RDS-G/HYXJI are constructed
the same except for the following:

561
473

5621 ---------

Part No.
Ref. . .
N°_ Mark Symbol and DescrIth" VSX-35TX vsx-assnosvsx-assnns vsx-sssnos-G Remarks
IKUXJl/CA /HYXJI /HVXJI /HYXJ|
PCB ASSEMBLIES
P5- 1 FM/AM TUNER UNIT AXQ7231 AXQ7232 AXQ7232 AXO7232
NSP MAIN ASSY AWK7591 AWK7603 AWK7603 AWK7603
P5- 5 MAIN CONTROL ASSY AWX7560 AWX7594 AWX7594 AWX7594
P5-1 2 DSP ASSY AWX7561 AWX7595 AWX7595 AWX7595
NSP COMPLEX ASSY AWK7592 AWK7604 AWK7607 AWK7604
P5- 2 EX I/O(7.1CH I/O) ASSY AWX7568 AWX7597 AWX7597 AWX7597
P5- 6 A- CONNECTION ASSY AWX7566 AWX7584 AWX7584 AWX7584
P5-I 2 REGULATOR ASSY AWX7562 AWX7806 AWX7806 AWX7806
P5-15 PRIMARY ASSY AWX7563 AWX7596 AWX7604 AWX7596
NSP POWER ASSY AWK7593 AWK7605 AWK7605 AWK7605
P5- 4 INPUT ASSY AWX7573 AWX7600 AWX7600 AWX7600
P5-10 SP/PS ASSY AWX7571 AWX7598 AWX7598 AWX7598
FAN DRIVER ASSY Not used AWX7599 AWX7599 AWX7599 No. I
NSP FRONT ASSY AWK7594 AWK7606 AWK7606 AWK7606
P5- 7 COMPOSITE ASSY AWX7581 AWX7621 AWX7621 AWX7621
P6- 3 V-AMP ASSY AWX7578 AWX7723 AWX7723 AWX7723
P7- 1 DISPLAY ASSY AWX7574 AWX7601 AWX7601 AWX7601
P- SW ASSY Not used AWX7593 AWX7593 AWX7593 No. 2
PACKING SECTION
P3- 2 FM Antenna ADH7004 ADH7005 ADH7005 ADH7005
P3- 3 Operating Instructions (English) ARB7222 AFIB7225 AFIB7225 ARB7225
P3- 3 Operating Instructions (German) Not used ARC7293 Not used ARC7293
P3- 3 Operating Instructions (French) Not used ARC7292 Not used AFIC7292
P3- 3 Operating Instructions (Italian) Not used ARC7294 Not used ARC7294
P3- 3 Operating Instructions (Dutch) Not used ARC7296 Not used AFIC7296
P3- 3 Operating Instructions (Swedish) Not used ARC7298 Not used ARC7298
P3- 3 Operating Instructions (Spanish) Not used ARC7295 Not used ARC7295
P3- 3 Operating Instructions (Portuguese) Not used ARC7297 Not used ARC7297
