Pioneer vsx 52 tx schematic
This is the 45 pages manual for pioneer vsx 52 tx schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer vsx 52 tx schematic (Ocr-read)

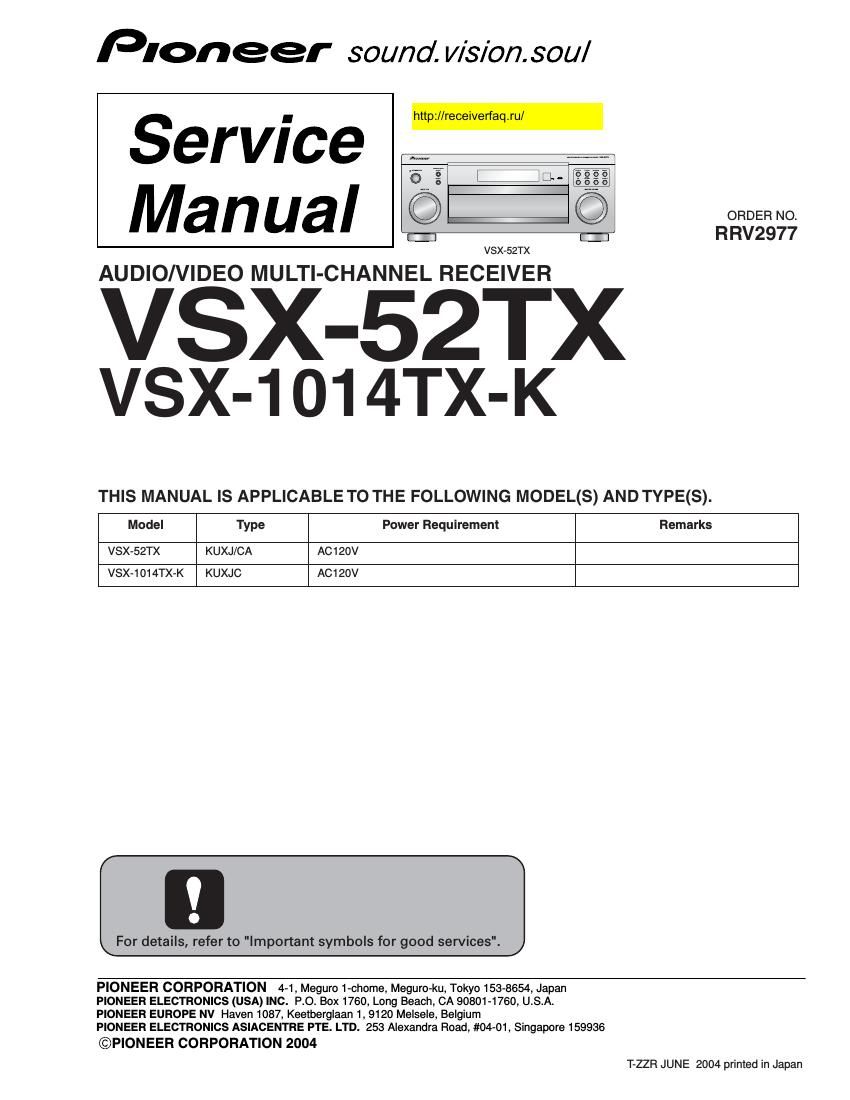

Page 1
Pioneer sound. vision. soul
Service
Manual
VSX752TX
AUDIONIDEO MULTI- CHANNEL RECEIVER
VSX-52TX
VS)(- 1 01 4TX-K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
ORDER NO.
RRV2977
Model Type Power Requirement Remarks
VSX-52TX KUXJ/CA AC120V
VSX-1014TX-K KUXJC AC120V
For details, refer to "Important symbols for good services".
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2004
T-ZZR JUNE 2004 printed in Japan
