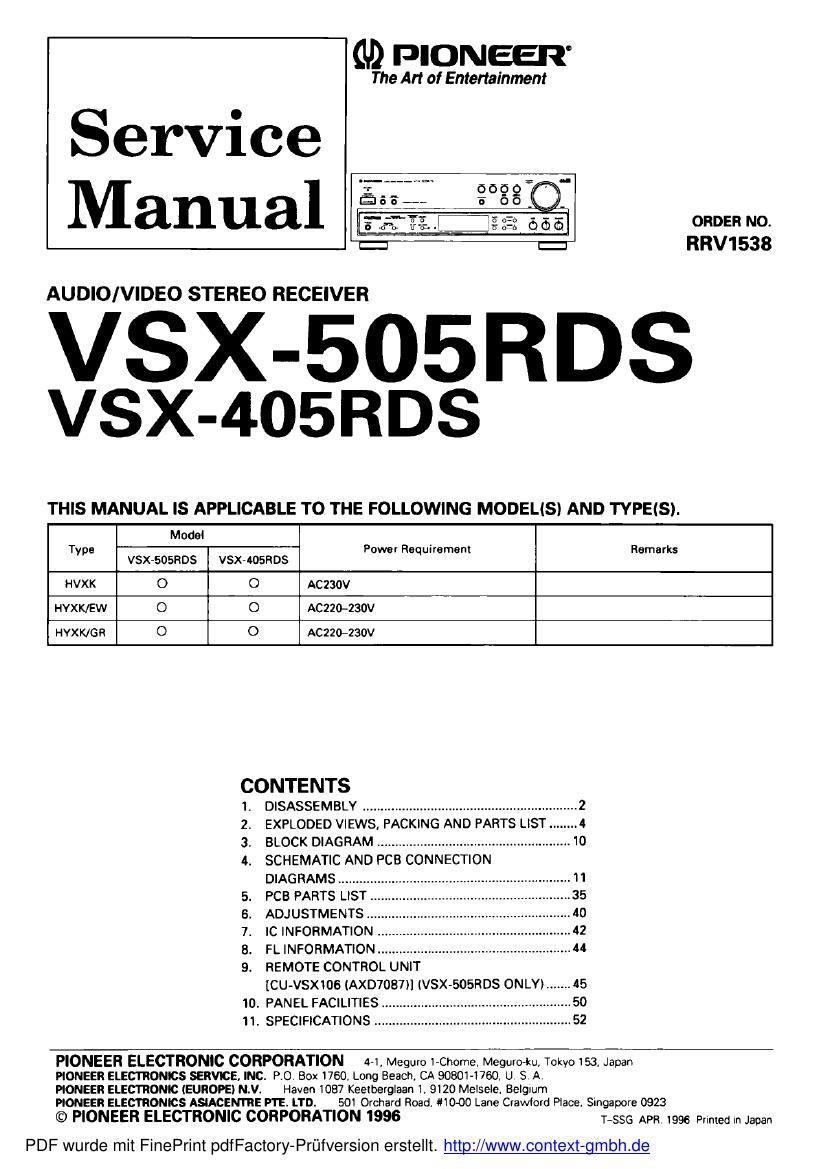

Page 1
GI) PIONEER"
The Art of Entertainment
Service
Manual
AUDIO/VIDEO STEREO RECEIVER
VSX-505RDS
VSX-405RDS
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPEIS).
ORDER NO.
RRV1 538
Model
Type Power Requirement Remarks
VSX-SOSRDS VSX-wSRDS
HVXK O O AC23OV
HYX K/EW O O AC220-230V
HVXK/GR O O AC220-230V
CONTENTS
1. DISASSEMBLV ............................................................ 2
EXPLODED VIEWS, PACKING AND PARTS LIST ........ 4
BLOCK DIAGRAM ...................................................... 10
SCHEMATIC AND PCB CONNECTION
DIAGRAMS ...............................
PCB PARTS LIST ..
ADJUSTMENTS .......
IC INFORMATION
FL INFORMATION ................
REMOTE CONTROL UNIT
ICU-VSXIOG IAX07087II (VSX-505RDS ONLY) ....... 45
10. PANEL FACILITIES ........... ._
11. SPECIFICATIONS .............
PW.
sowsww
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1~Chome. Meguro-ku Tokyo 153 Japan
PIONEER ELECTRONCS SERVBE, NC. PO Box 1760 Long Beach CA 90801-1760. U S, A
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087 Keerberglaan 1, 9120 Melsele. Belglum
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 50I Orchard Road. "10-00 Lane Crawford PIace. Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 L556 m was puma .n Japan
PDF wurde mit FinePrint pdfFactory-Prflfversion erstellt. http://wwwcontext-gmbh.de
Page 2
VSX-SOSRDS, VSX-405RDS
1. DISASSEMBLY
CAUTION l
You will get an electric shock if you touch the Radiator (Heat-sink) when the power cord is
connected to the power source. Also, the Electrolytic Capacitor contains a charge even when
the power cord is unplugged, so the charge must be removed when the bonnet has been
taken oft.
< Removeing the Charge >
G Connect the Radiator (top side) and either the Chassis or the Rear panel for 2 to 3 seconds with a Resistor of
more than SW/IOQ.
® Connect the +8 lead on the 12 and either the Chassis or the Rear panel for 2 to 3 seconds with a Resistor of
more than SWIIOQ.
I BONNET
l AMP ASSY
Round Knob L
2
