Pioneer vsx 4800 service manual

This is the 54 pages manual for pioneer vsx 4800 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 54

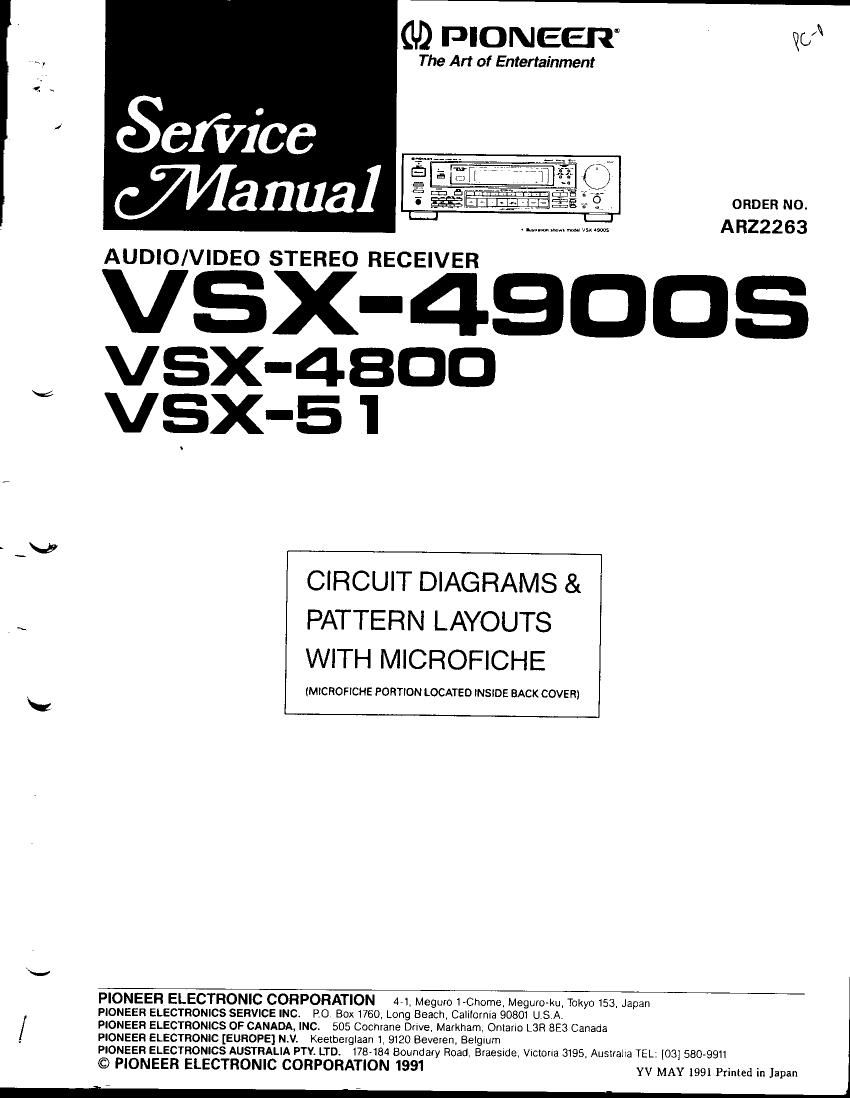

Extracted text from pioneer vsx 4800 service manual (Ocr-read)

Page 1

(U) PIONEER IL"

The Art of Entertainment

ORDER No.
AR22263

AUDIO/VIDEO STEREO RECEIVER

VSX-4QDDS

vex-4300
vsx-s 1

CIRCUIT DIAGRAMS &
PATTERN LAYOUTS
WITH MICROFICHE

(MICROFICHE PORTION LOCATED INSIDE BACK COVER)

PIONEER ELECTRONIC CORPORATION 4,1. Meguro 1»Chome, Meguro»ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. PO Box 1760, Long Beach. California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane DrIve. Markham Ontario L3H 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keetberglaan 1, 9120 Beveren, Belglum

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeslde. VICIOrIa 3195, Austraha TEL: [03} 580-9911
