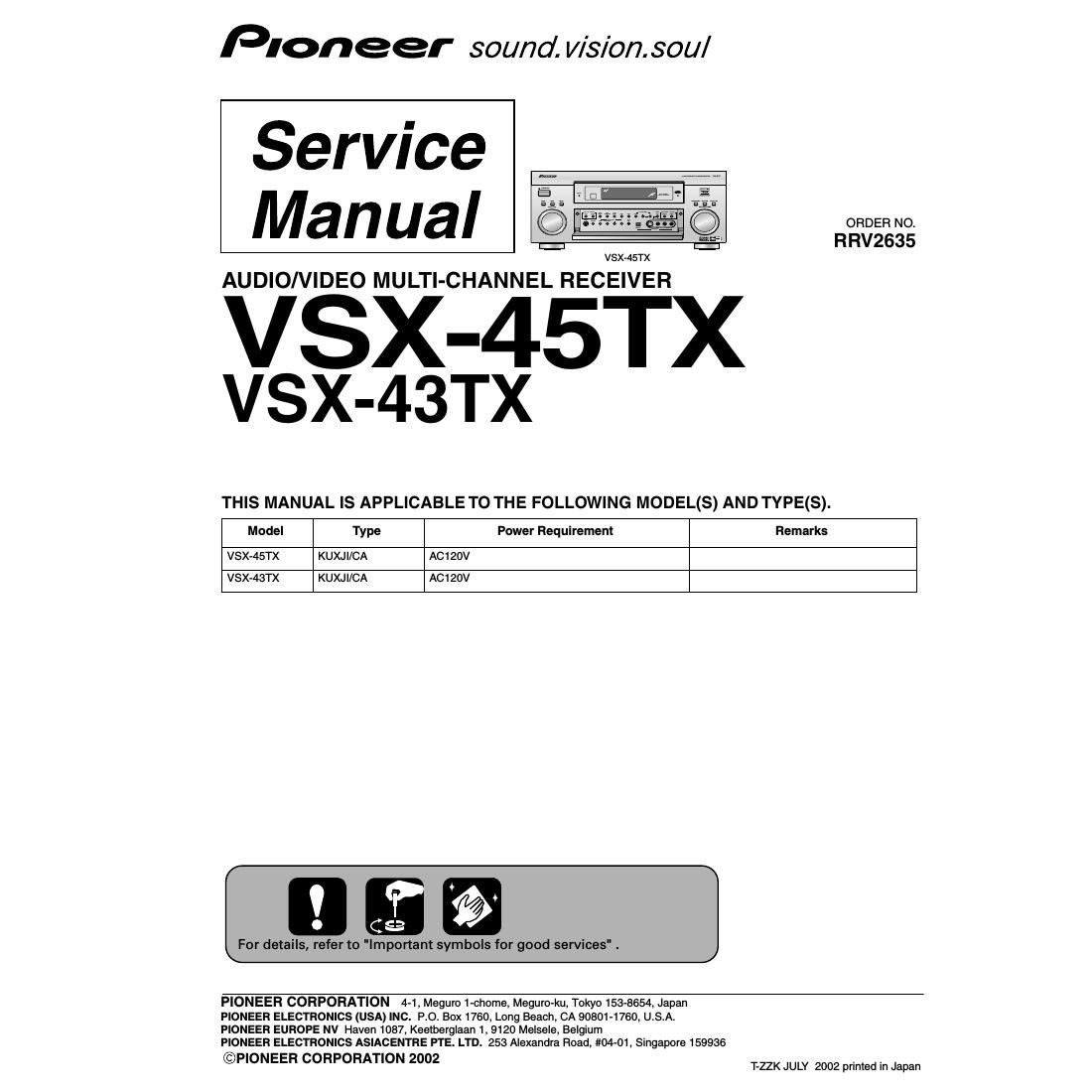

Pioneer sound. vision. sou/

Service
Manual

AUDIONIDEO MULTI-CHANNEL RECEIVER

VSX-45TX
VSX-43TX

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.

RRV2635

VSX»45TX

Model Type Power Requirement Remarks
VSX-45TX KUXJI/CA AC120V
VSX-43TX KUXJI/CA AC120V

09-

For details, refer to "Important symbols for good services" .

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

{W
QPIONEER CORPORATION 2002 T-ZZK JULY 2002 printed in Japan
