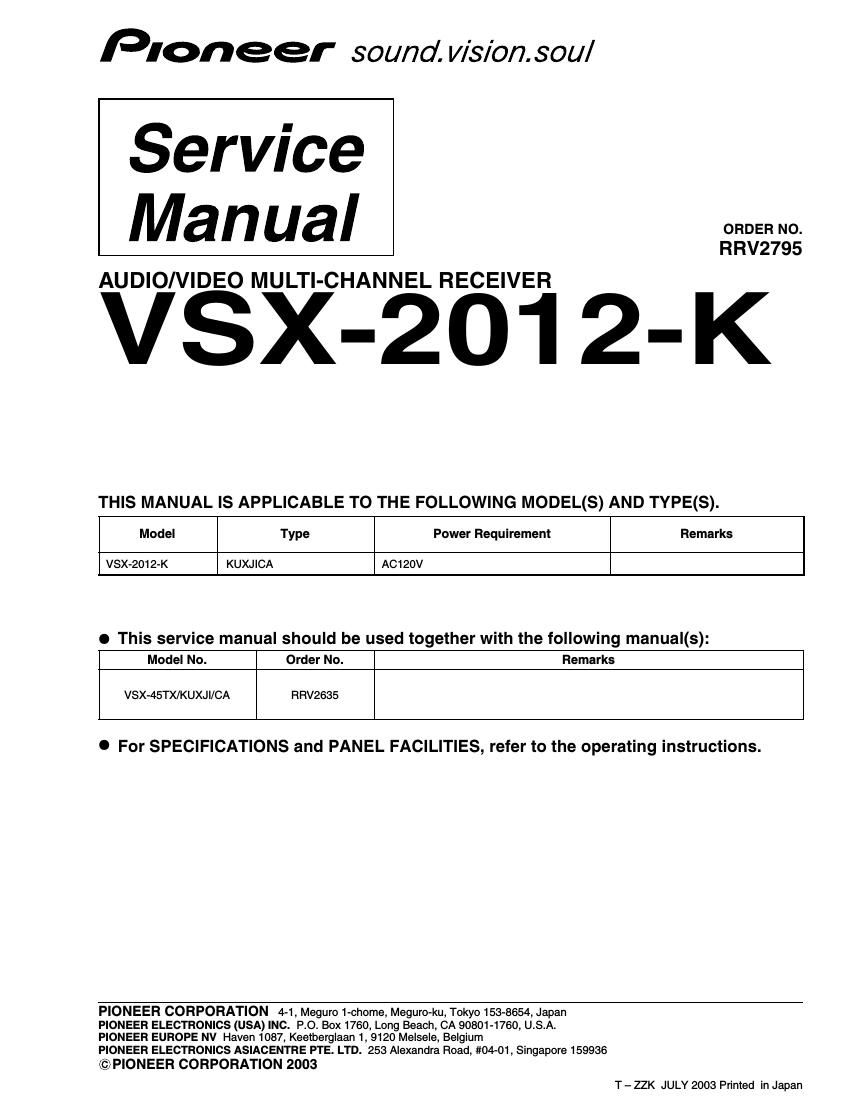

Pioneer vsx 2012 service manual

Page 1

2 1 23 4 1234 C D F A B E VSX-2012-K 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE VSX-2012-K/KUXJICA and VSX-45TX/KUXJI/CA are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description VSX-45TX VSX-2012-K Remarks /KUXJI/CA /KUXJICA PACKING SECTION P7- 6 NSP Warranty Card ARY7007 ARY7045 P7- 7 Operating Instructions (English) ARB7257 ARB7297 P7-16 Packing Case AHD8060 AHD8243 Errata Sheet ARX7052 Not used REAR PANEL SECTION P11-11 Rear Panel ANC8063 ANC8246 FRONT PANEL SECTION P15- 8 Door ANB7277 ANB7275 P15-25 Pionner Badge PAN1376 AAN7218 P15-26 F. Panel ANB7276 ANB7331
