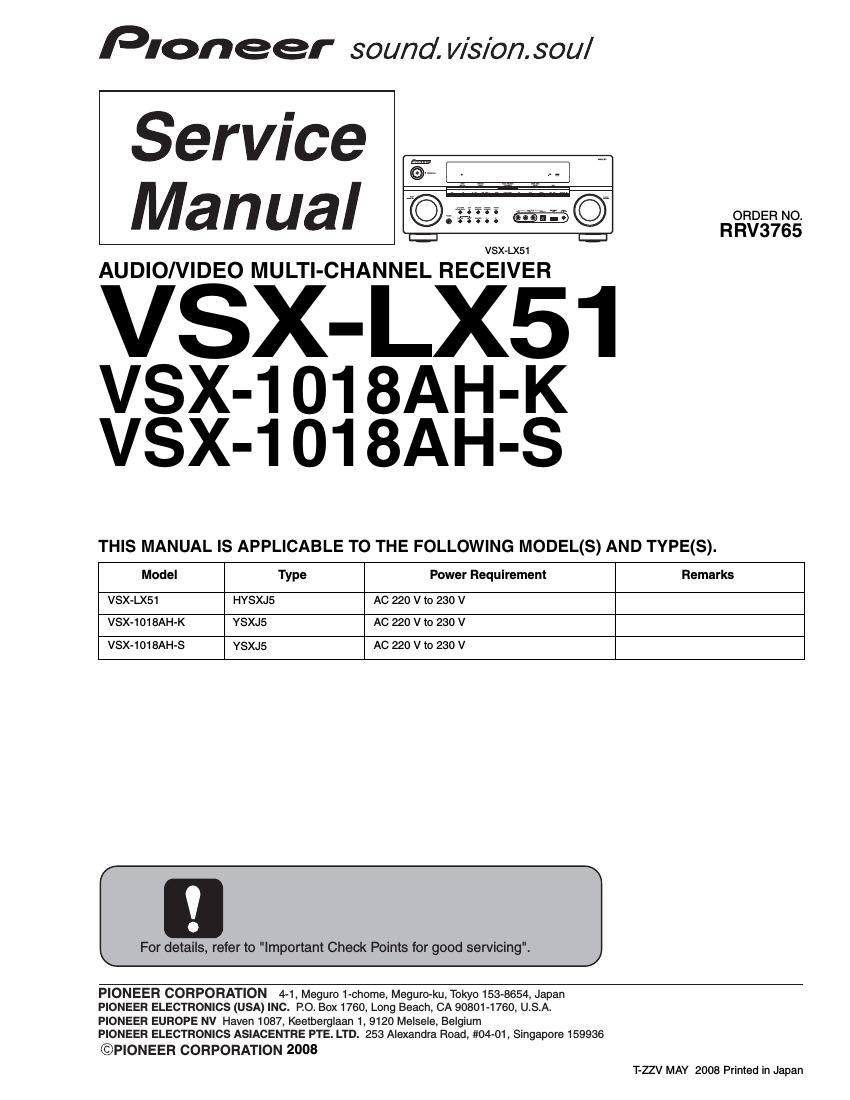

Pioneer sound. vision. soul

Service
Manual

ORDER NO.
RRV3765
VSX-LX51
AUDIONIDEO MULTl-CHANNEL RECEIVER
VSX-1018AH-K
VSX-1018AH-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Remarks
VSX-LX51 HYSXJS AC 220 V to 230 V
VSX-1018AH-K YSXJS AC 220 V to 230 V
VSX-1018AH-S YSXJ5 AC 220 V to 230 V

For details, refer to "Important Check Points for good servicing".

PIONEER CORPORATION 4-1, Meguro1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|0NEER CORPORATION 2008
T-ZZV MAY 2008 Printed in Japan
